Home / Danfoss (Drives) / Medium-duty open-circuit piston pumps / Danfoss 123AL00565A

Danfoss (Drives)

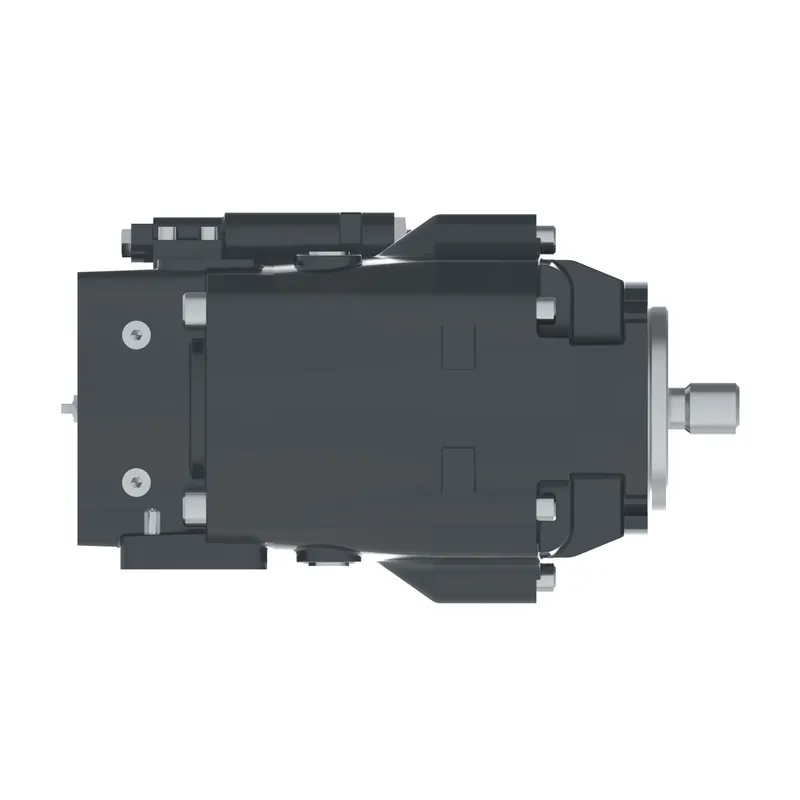

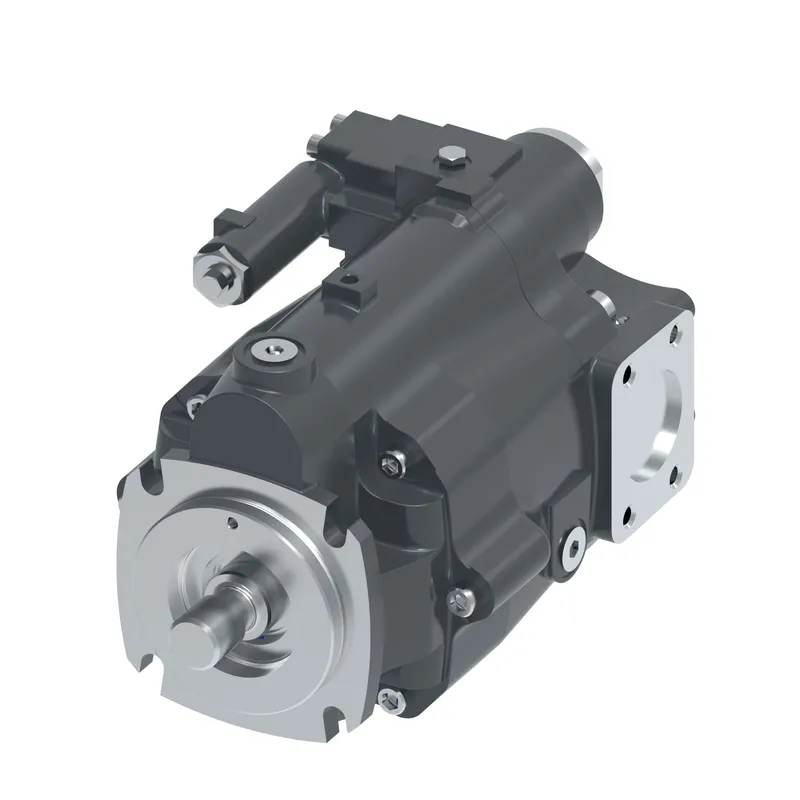

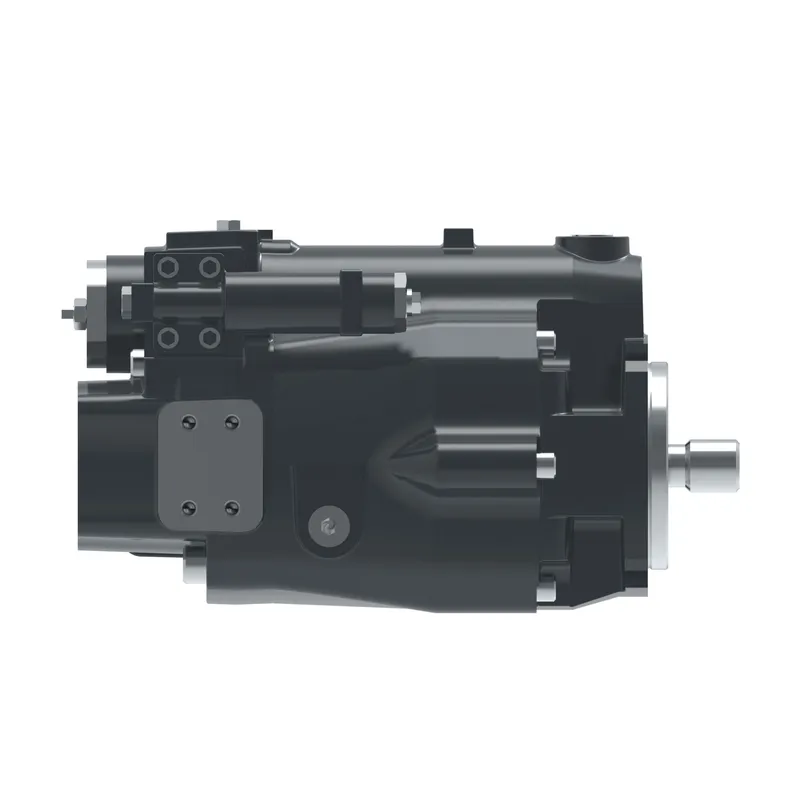

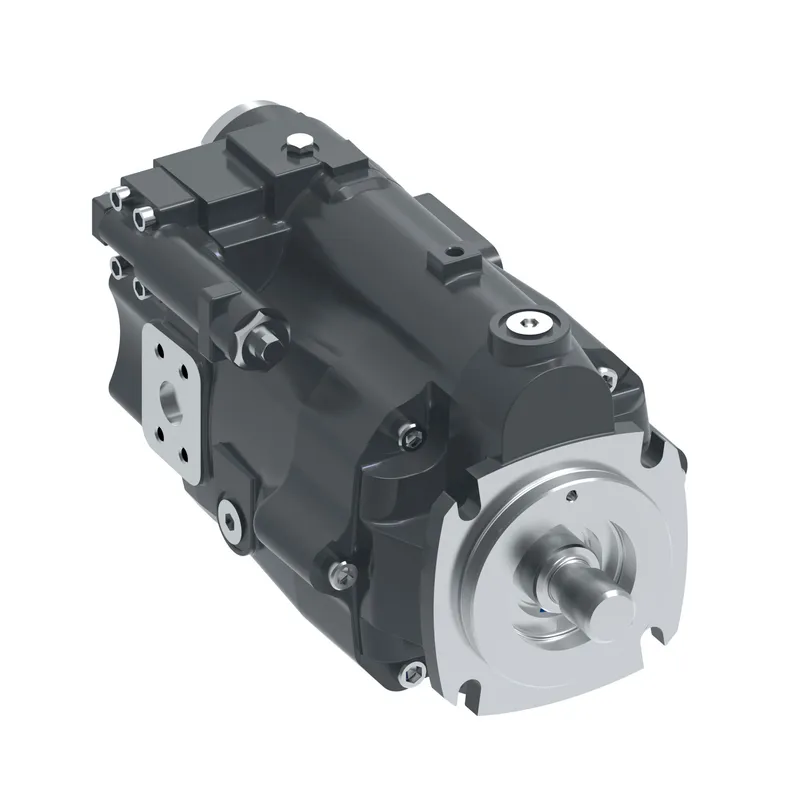

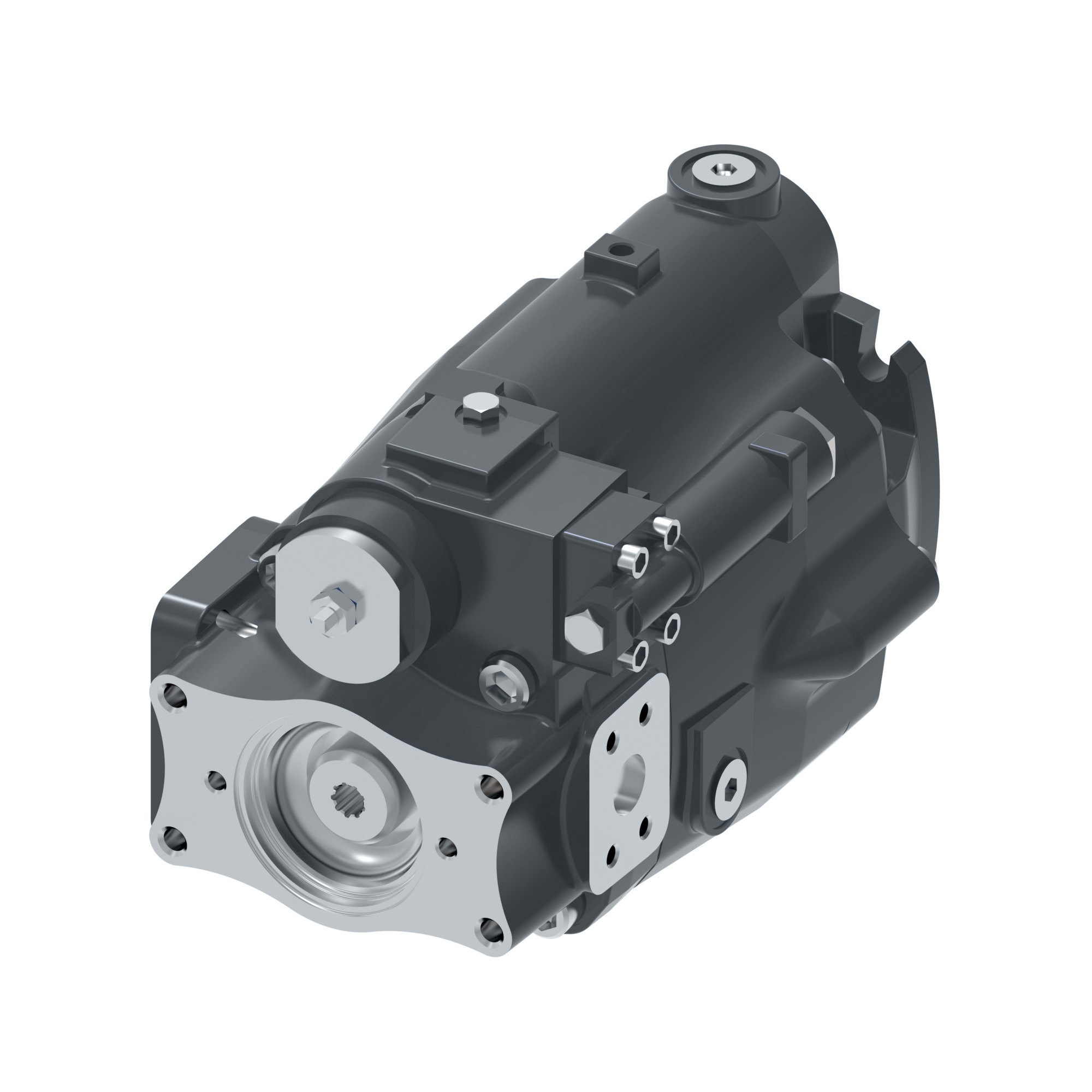

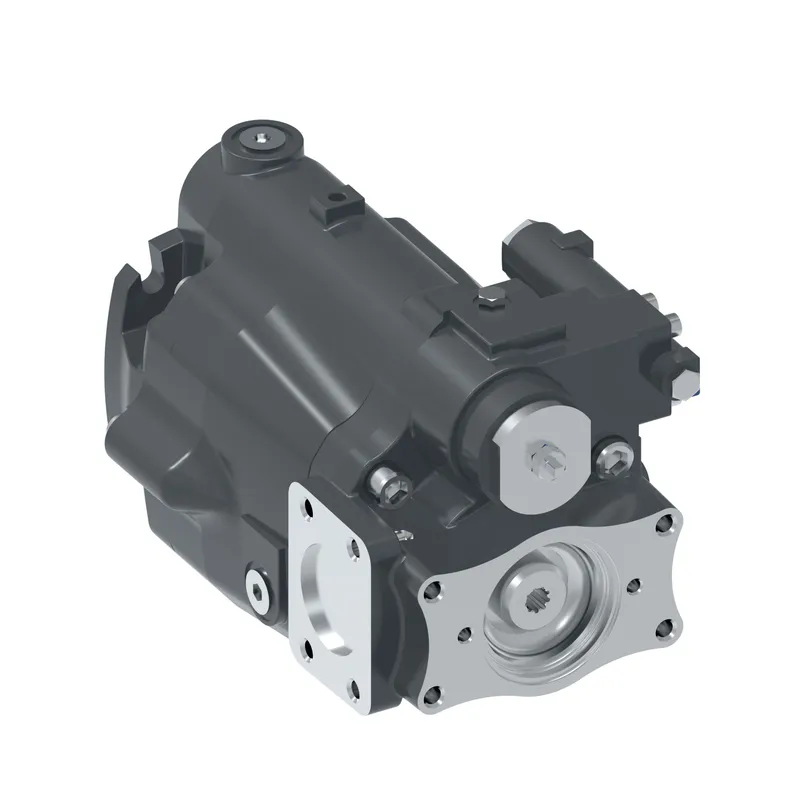

Danfoss 123AL00565A

PVM098ER10GS02AAA2800000 EA0A, PVM098ER10GS02AAA2800000 EA0A

MPN: 123AL00565A
Category: Medium-duty open-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 123AL00565A?

Danfoss PVM098ER10GS02AAA2800000 EA0A, PVM098ER10GS02AAA2800000 EA0A, manufacturer part number 123AL00565A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

PRODUCT	VAR DISP OCP PVM PUMP
DISPLACEMENT	98.3 cm3/r [6.00 in3/r] (280 bar MAX)
Valve plate	INDUSTRIAL (1800 r/min MAX)
Input rotation	CLOCKWISE (RIGHTHAND)
INPUT SHAFT	SAE J744-38-1 SAE C-C STRAIGHT KEYED (MODEL 074 098 AND 131)
Mounting Flange	SAE J744-127-4 (C 4-BOLT) (MODELS 057 074 098 AND 131)
MAIN PORT LOCATION	SIDE
PORT OPTIONS	SAE J518 FLANGE PORTS SAE AUXILIARY PORTS
PUMP SPECIAL FEATURES	ADJUSTABLE MAX DISPLACEMENT STOP(CONTAINS SINGLE SHAFT SEAL)
CONTROL	PRESSURE COMPENSATOR
PRESSURE COMP SET	276-284 BAR [4002-4118 LBF/IN2]
FLOW COMP UNLD VLV RPC SET	NONE
UNLD VLV TQ CONTROL SET	NONE
COMP SPECIAL FEATURES	NONE
Auxiliary mounting	SAE C 2-/4-BOLT 14T SPLINE MODELS 057 074 098 AND 131
Paint	BLACK [DEFAULT]
Customer identification	NONE
DESIGN CODE	A
Brand	Vickers by Danfoss
CODE TITLE	VICKERS VARIABLE DISPLACEMENT OPEN CIRCUIT PISTON PUMPS
IPM FRAME SIZE	PVM Code A 98cc Pump
Model Code 1	PVM098ER10GS02AAA2800000 EA0A
