Home / Danfoss (Drives) / Medium-duty open-circuit piston pumps / Danfoss 123AL00449A

Danfoss (Drives)

Danfoss 123AL00449A

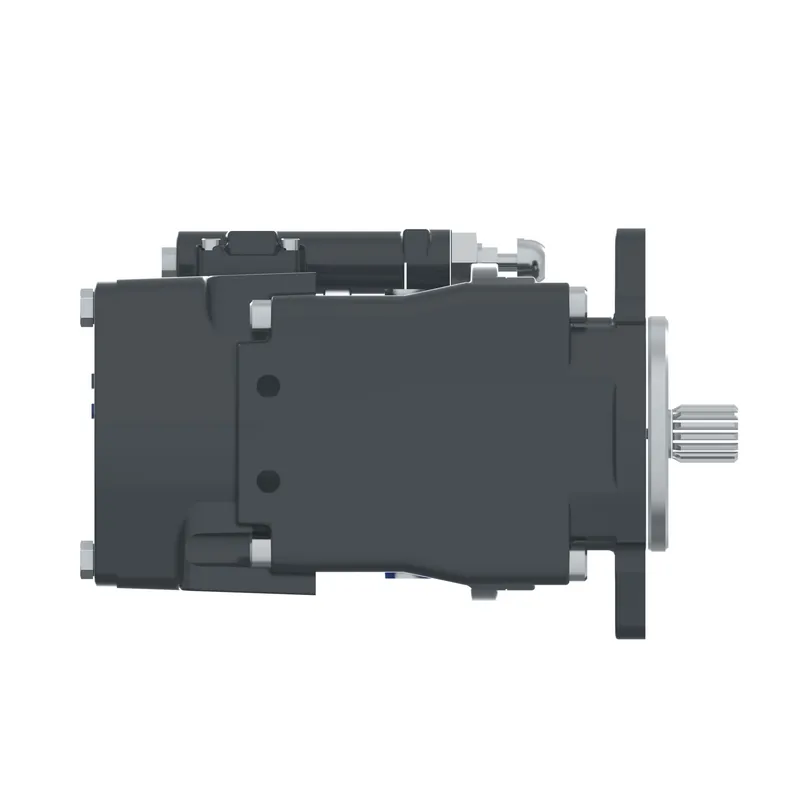

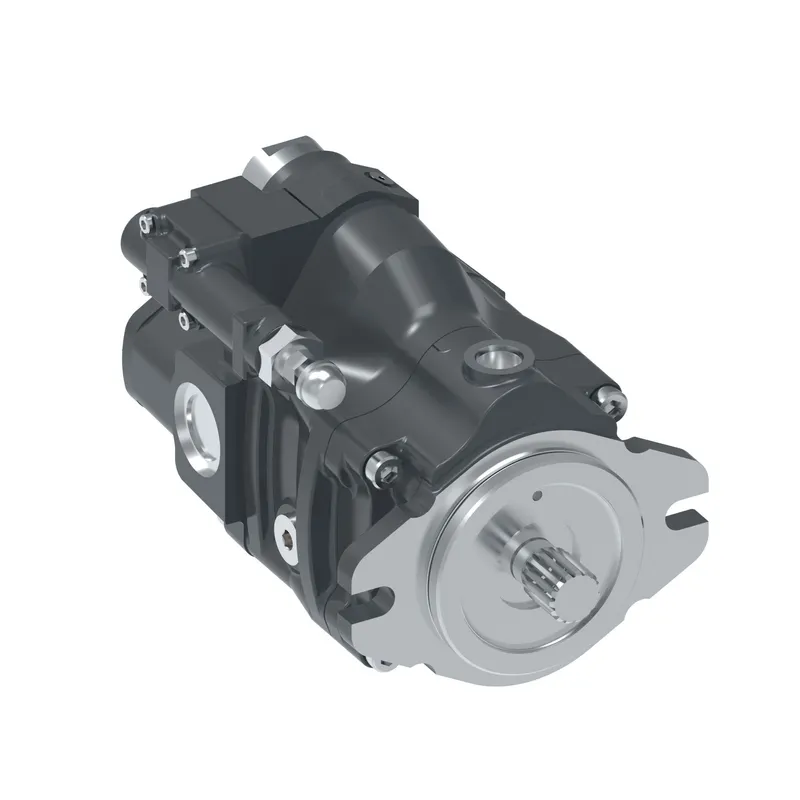

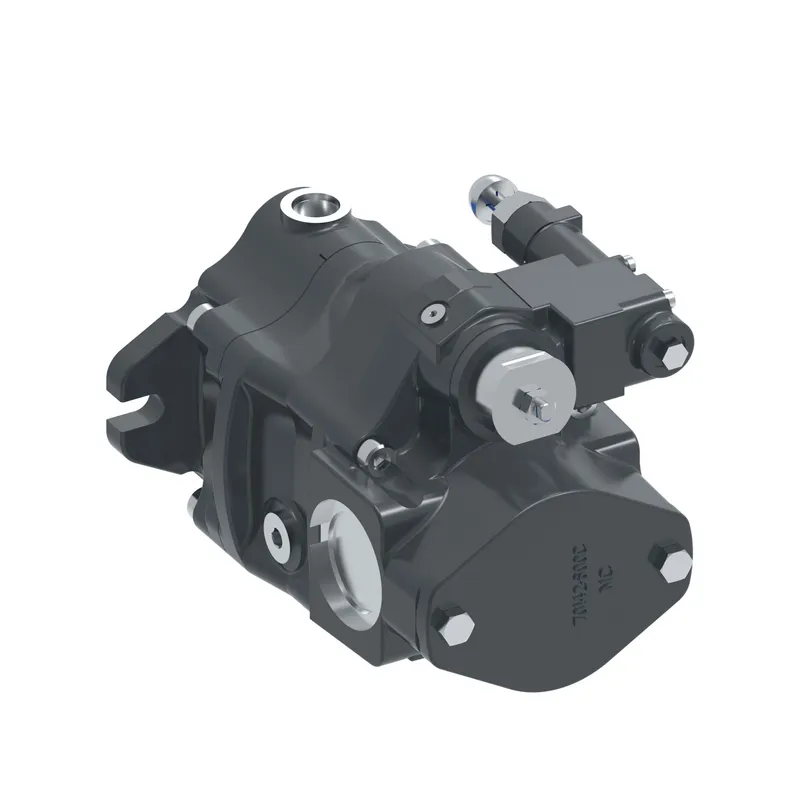

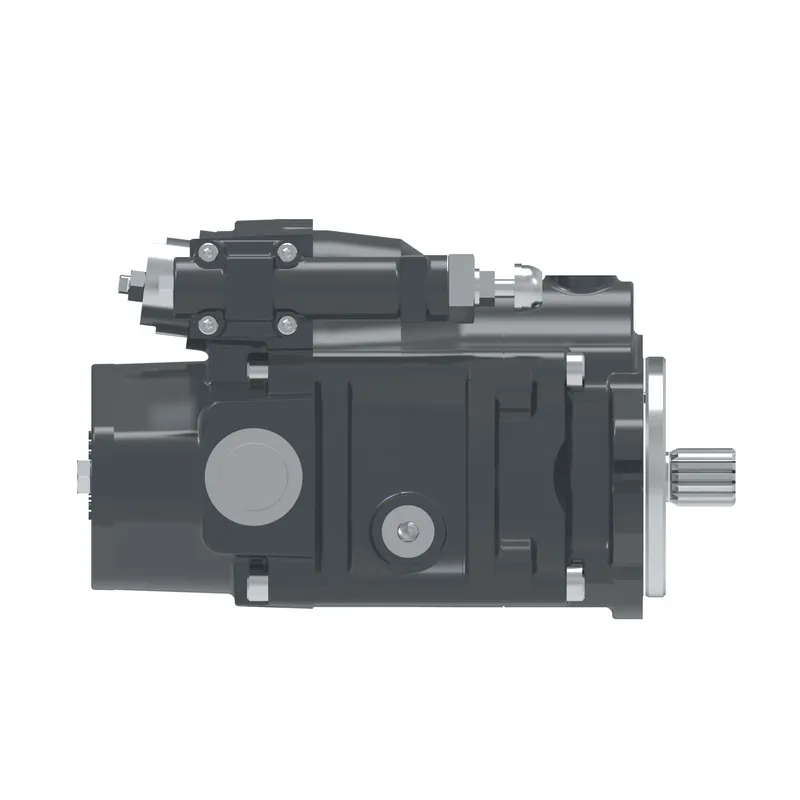

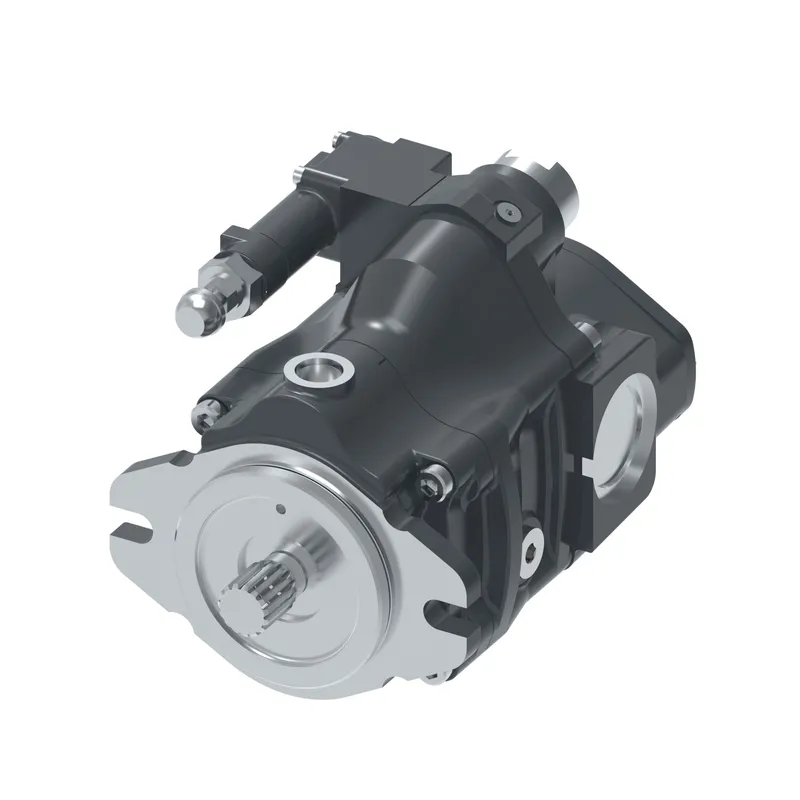

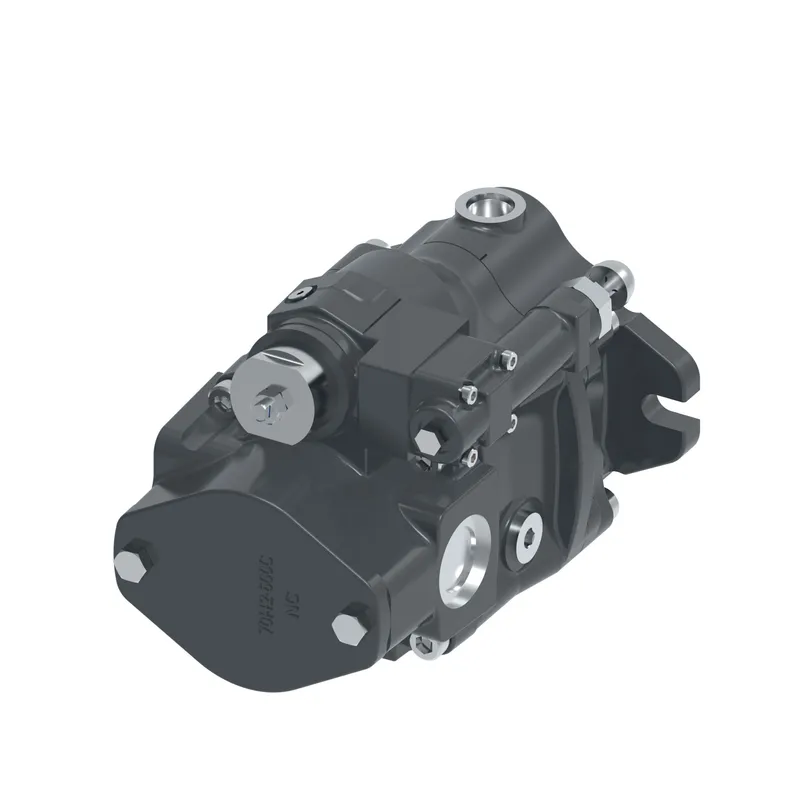

PVM020ER07CE01AAA2300000 0A0A, PVM020ER07CE01AAA2300000 0A0A

MPN: 123AL00449A
Category: Medium-duty open-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 123AL00449A?

Danfoss PVM020ER07CE01AAA2300000 0A0A, PVM020ER07CE01AAA2300000 0A0A, manufacturer part number 123AL00449A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

PRODUCT	VAR DISP OCP PVM PUMP
DISPLACEMENT	020 - REFER LONG DESCRIPTION
Valve plate	INDUSTRIAL (1800 r/min MAX)
Input rotation	CLOCKWISE (RIGHTHAND)
INPUT SHAFT	07 - REFER LONG DESCRIPTION
Mounting Flange	C - REFER LONG DESCRIPTION
MAIN PORT LOCATION	END (MODELS 018,020,045,050)
PORT OPTIONS	01 - REFER LONG DESCRIPTION
PUMP SPECIAL FEATURES	AMDS (CONTAIN SSS)
CONTROL	PRESSURE COMPENSATOR
PRESSURE COMP SET	227-234 BAR[3277-3393 LBF/IN2]
FLOW COMP UNLD VLV RPC SET	NONE
UNLD VLV TQ CONTROL SET	NONE
COMP SPECIAL FEATURES	NONE
Auxiliary mounting	NONE (REAR PORT ONLY)
Paint	BLACK [DEFAULT]
Customer identification	NONE
DESIGN CODE	A
Brand	Vickers by Danfoss
CODE TITLE	PVM - REFER LONG DESCRIPTION
IPM FRAME SIZE	PVM Code A 20cc Pump
Model Code 1	PVM020ER07CE01AAA2300000 0A0A

123AL00449A: frequently asked questions

When can 123AL00449A be shipped?

123AL00449A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 123AL00449A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 123AL00449A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 123AL00449A, subject to availability and destination.
