Home / Danfoss (Drives) / Medium-duty open-circuit piston pumps / Danfoss 123AL00388A

Danfoss (Drives)

Danfoss 123AL00388A

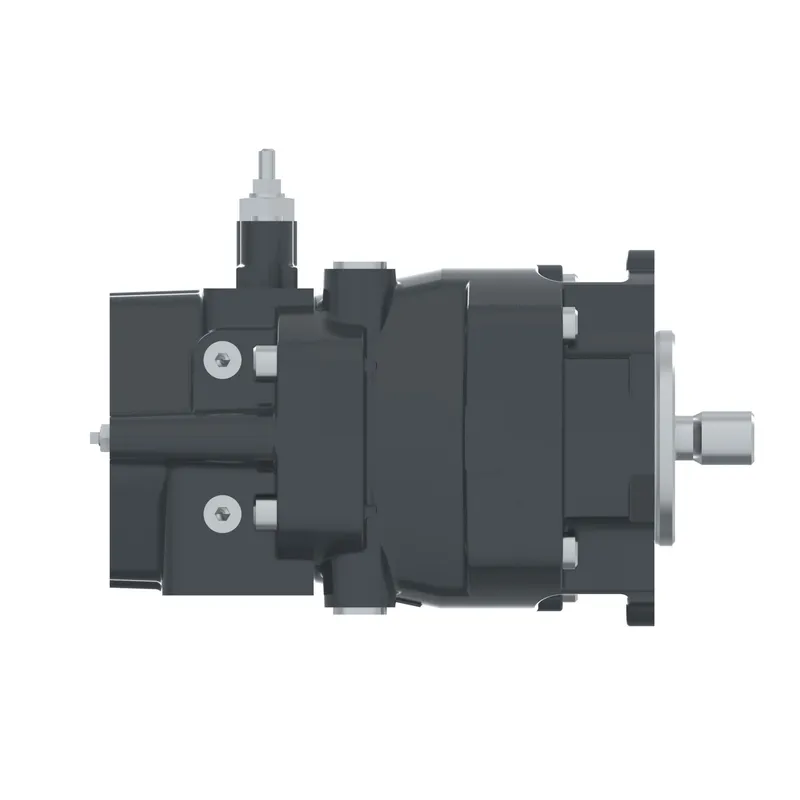

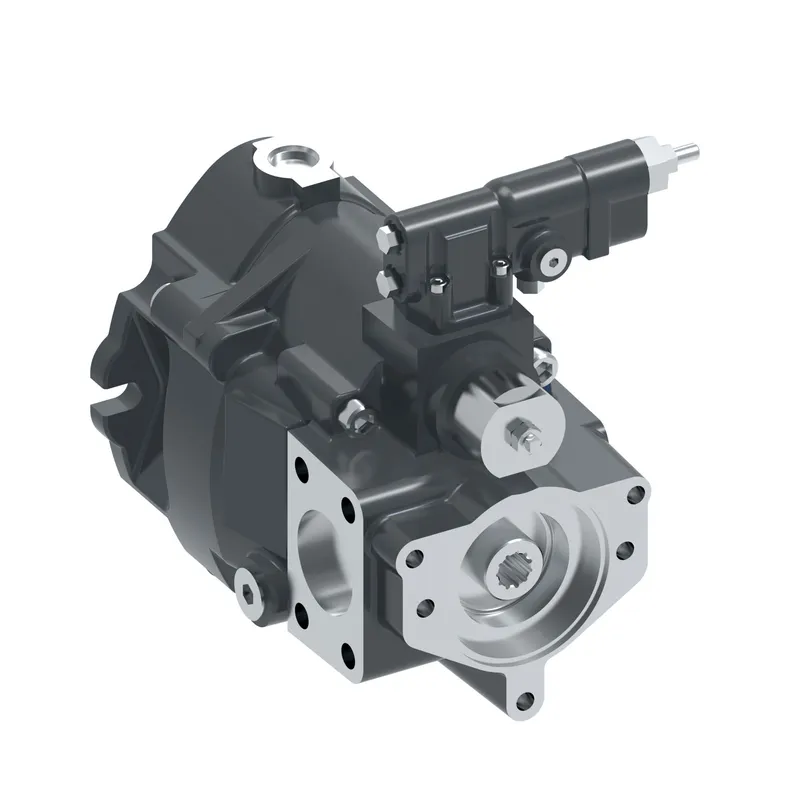

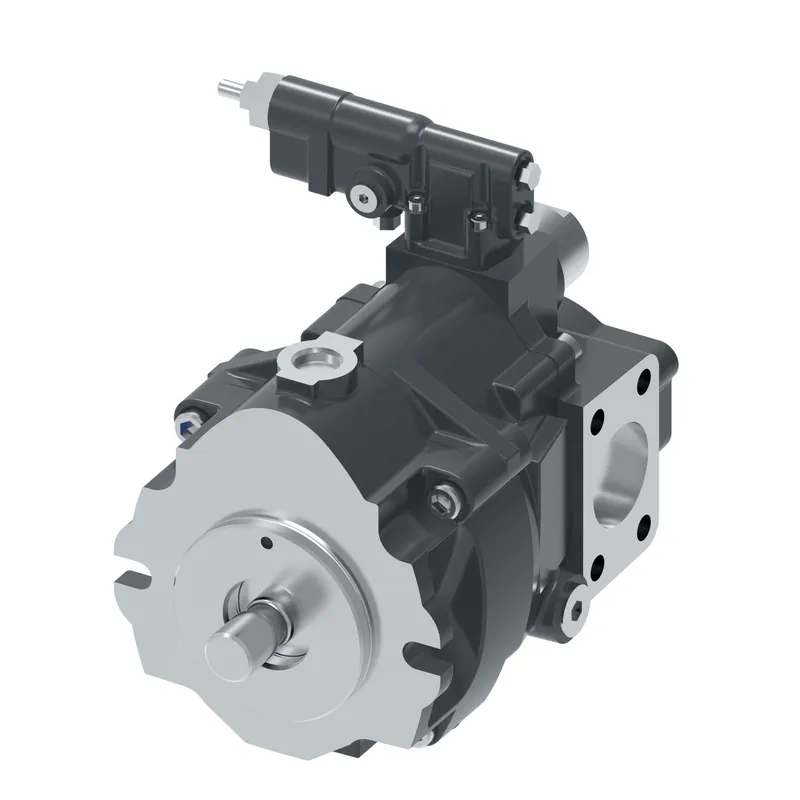

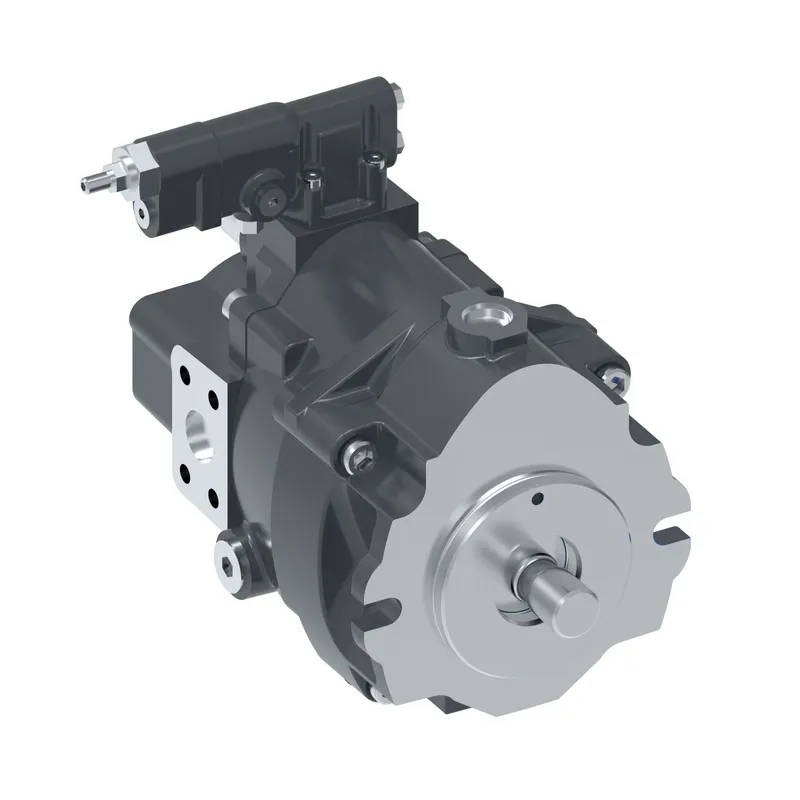

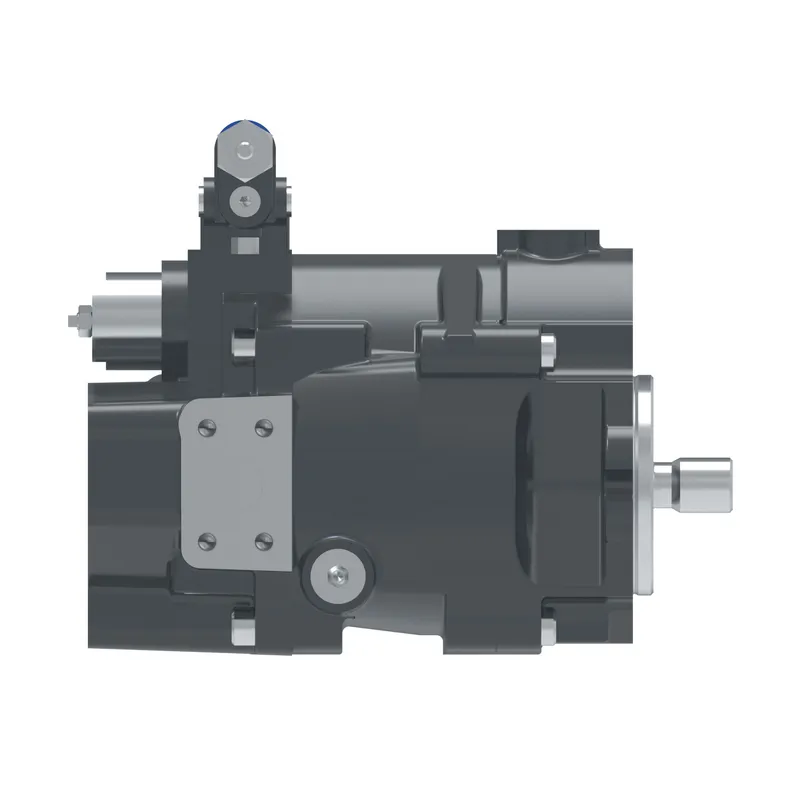

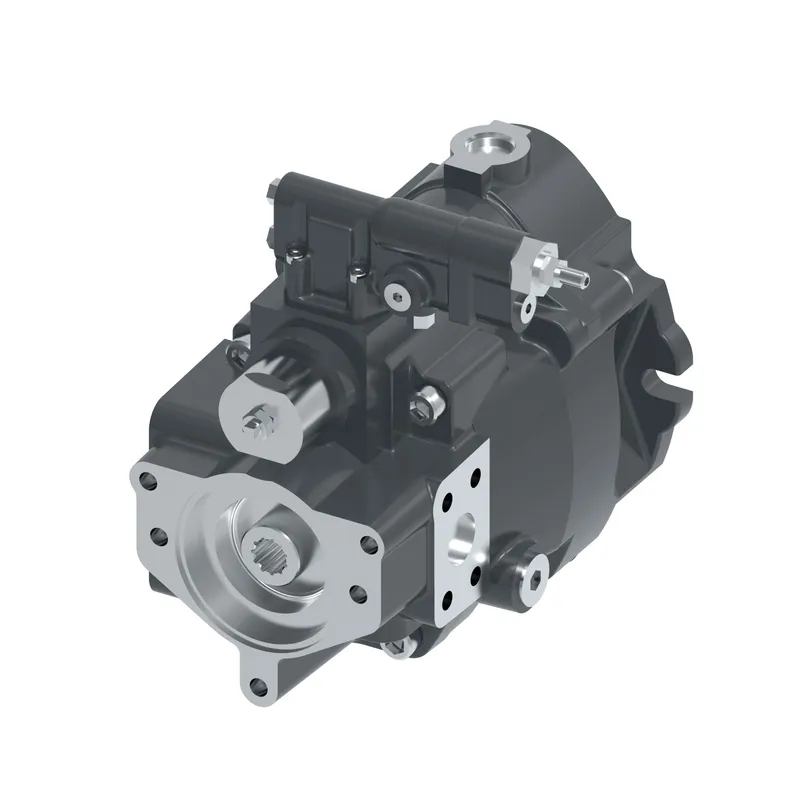

PVM045ER06CS02AAC2811000CA0A, PVM045ER06CS02AAC2811000CA0A

MPN: 123AL00388A
Category: Medium-duty open-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 123AL00388A?

Danfoss PVM045ER06CS02AAC2811000CA0A, PVM045ER06CS02AAC2811000CA0A, manufacturer part number 123AL00388A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

PRODUCT	VAR DISP OCP PVM PUMP
DISPLACEMENT	45.1 cm3/r [2.75 in3/r] (280 bar MAX)
Valve plate	INDUSTRIAL (1800 r/min MAX)
Input rotation	CLOCKWISE (RIGHTHAND)
INPUT SHAFT	SAE J744-25-1 SAE B-B STRAIGHT KEYED (MODEL 018 028 045 AND 057)
Mounting Flange	SAE J744-101-2 (B 2-BOLT) (MODELS 018 028 045)
MAIN PORT LOCATION	SIDE
PORT OPTIONS	SAE J518 FLANGE PORTS SAE AUXILIARY PORTS
PUMP SPECIAL FEATURES	ADJUSTABLE MAX DISPLACEMENT STOP(CONTAINS SINGLE SHAFT SEAL)
CONTROL	PRESSURE AND FLOW COMPENSATOR WITH PLUGGED ORIFICE
PRESSURE COMP SET	276-284 BAR [4002-4118 LBF/IN2]
FLOW COMP UNLD VLV RPC SET	10-12 BAR [145-174 LBF/IN2]
UNLD VLV TQ CONTROL SET	NONE
COMP SPECIAL FEATURES	NONE
Auxiliary mounting	SAE B 2-/4-BOLT 13T SPLINE MODELS 028 045 057 074 098 AND 131
Paint	BLACK [DEFAULT]
Customer identification	NONE
DESIGN CODE	A
Brand	Vickers by Danfoss
CODE TITLE	VICKERS VARIABLE DISPLACEMENT OPEN CIRCUIT PISTON PUMPS
IPM FRAME SIZE	PVM Code A 45cc Pump
Model Code 1	PVM045ER06CS02AAC2811000CA0A
