Home / Danfoss (Drives) / Medium-duty open-circuit piston pumps / Danfoss 123AL00124A

Danfoss (Drives)

Danfoss 123AL00124A

PVM063ER09GS02AAA0700000 AA0A, PVM063ER09GS02AAA0700000 AA0A

MPN: 123AL00124A
Category: Medium-duty open-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 123AL00124A?

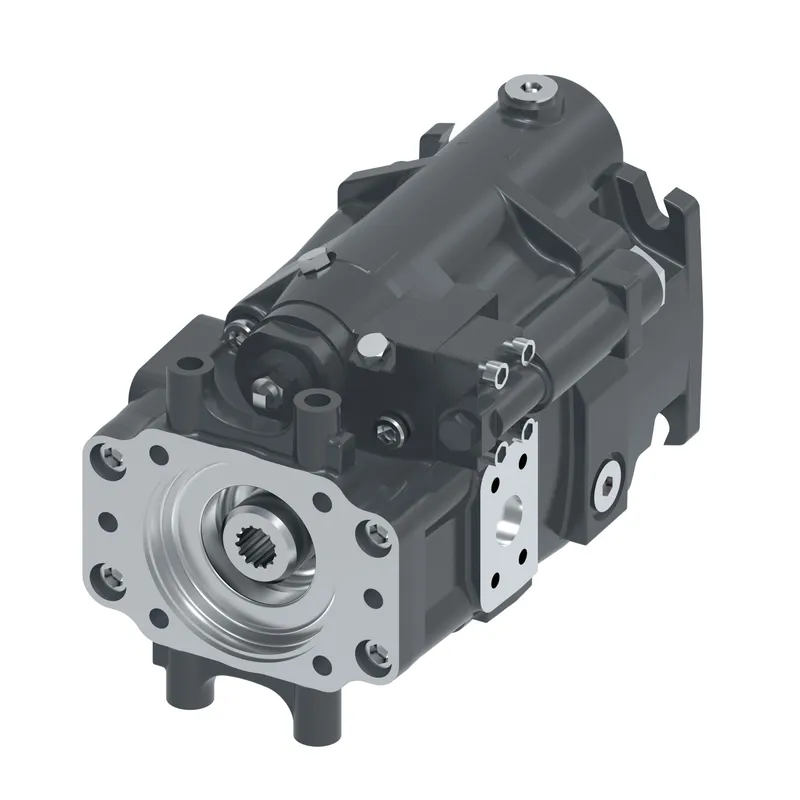

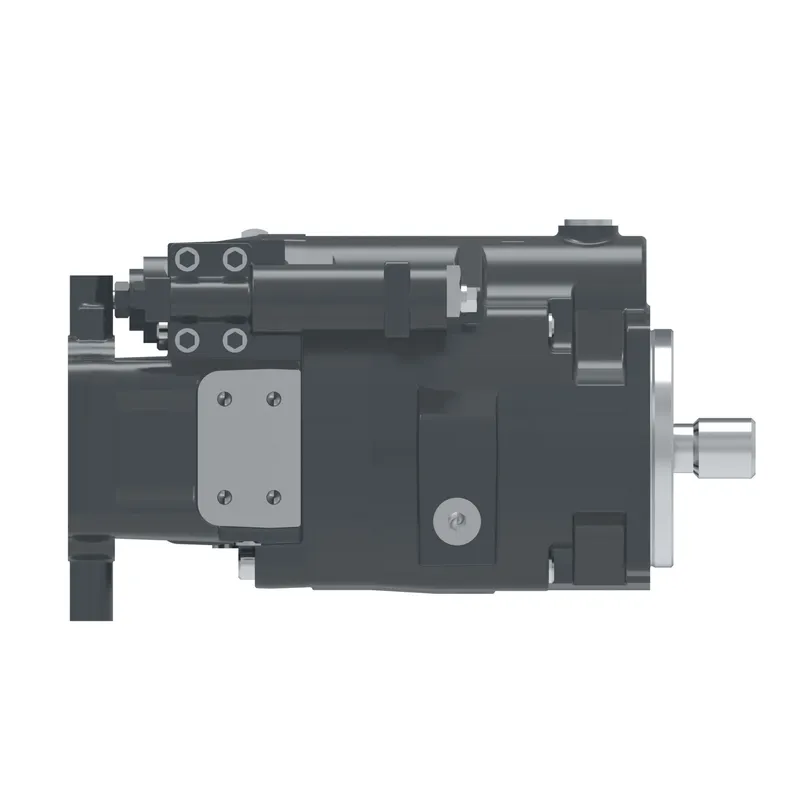

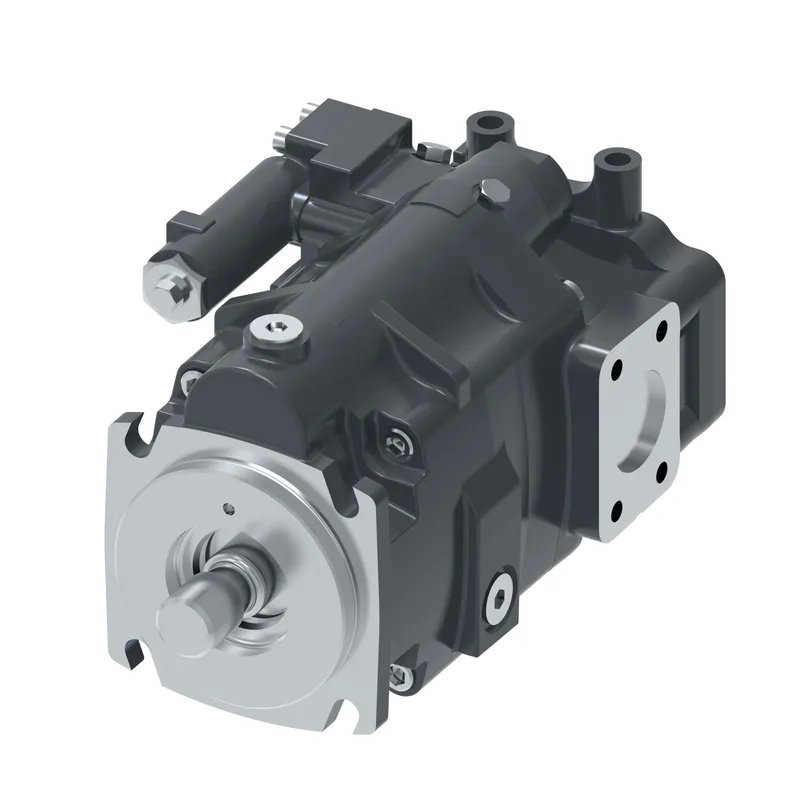

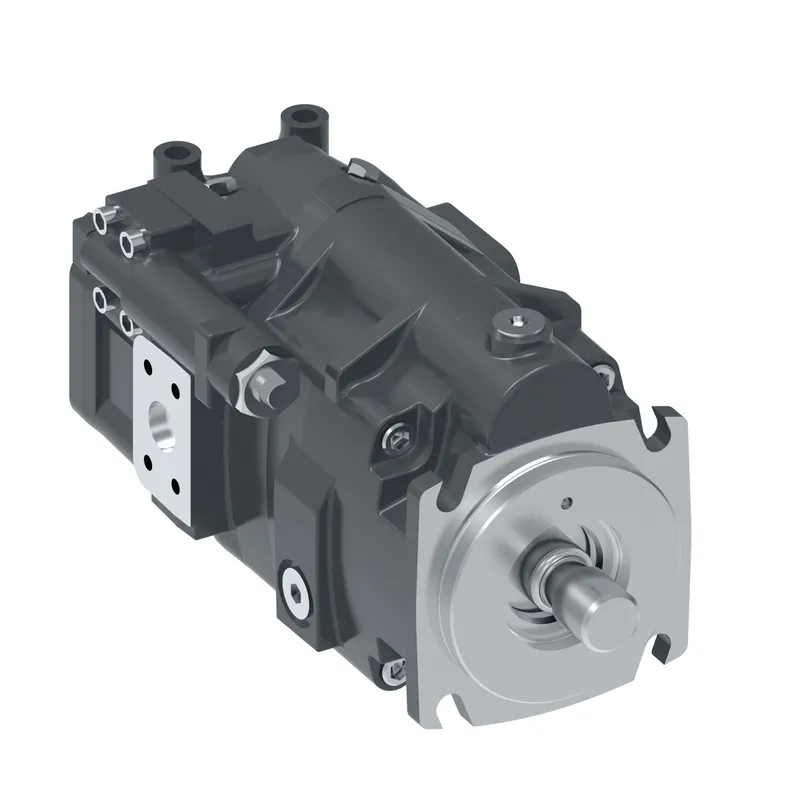

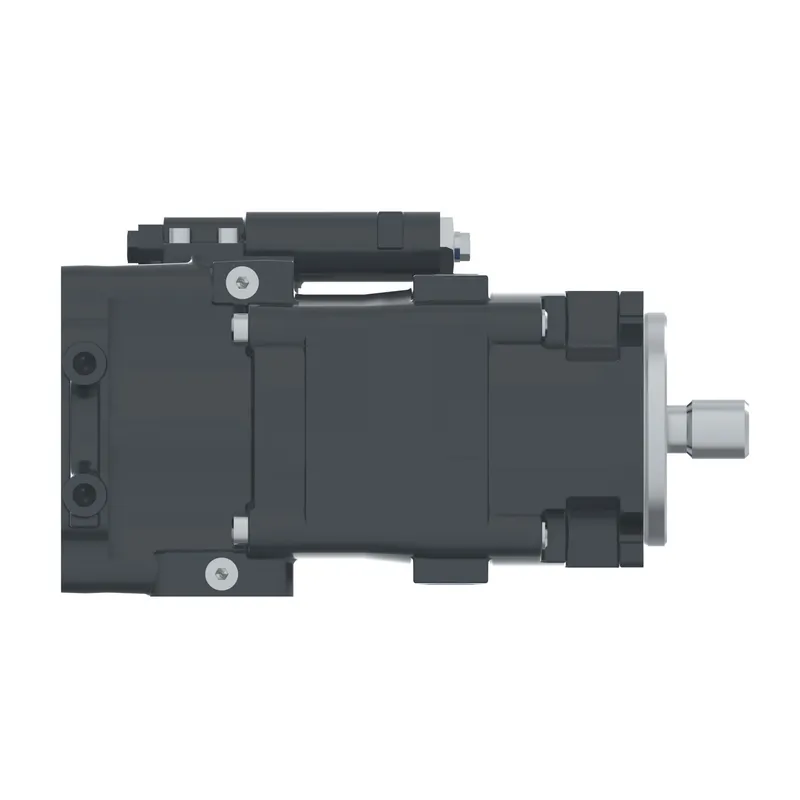

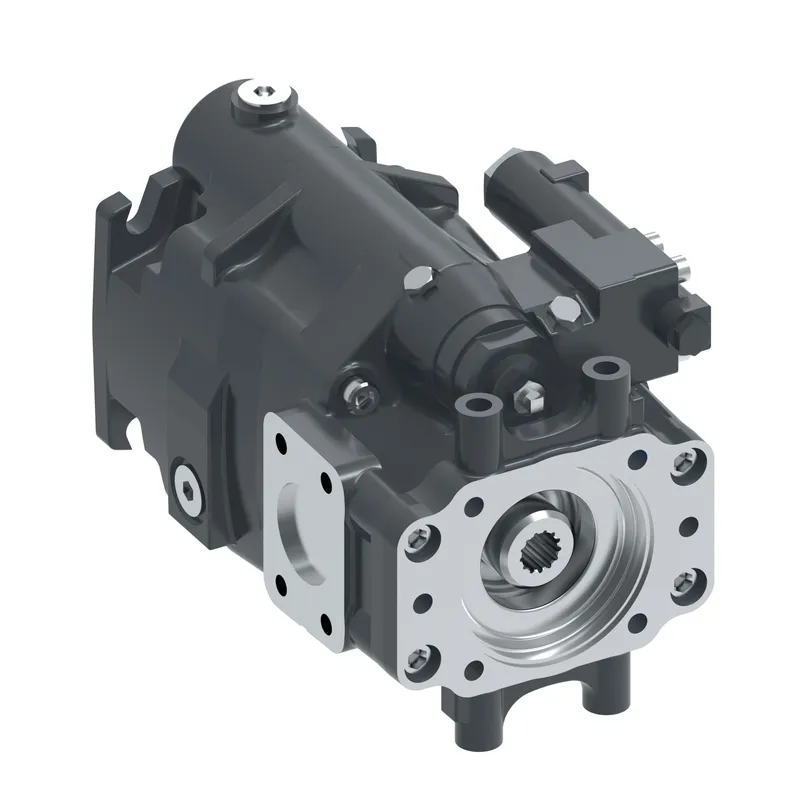

Danfoss PVM063ER09GS02AAA0700000 AA0A, PVM063ER09GS02AAA0700000 AA0A, manufacturer part number 123AL00124A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

PRODUCT	VAR DISP OCP PVM PUMP
DISPLACEMENT	63.1 cm3/r [3.85 in3/r] (230 bar MAX)
Valve plate	INDUSTRIAL (1800 r/min MAX)
Input rotation	CLOCKWISE (RIGHTHAND)
INPUT SHAFT	SAE J744-32-1 SAE C STRAIGHT KEYED (MODEL 057 074 098 AND 131)
Mounting Flange	SAE J744-127-4 (C 4-BOLT) (MODELS 057 074 098 AND 131)
MAIN PORT LOCATION	SIDE
PORT OPTIONS	SAE J518 FLANGE PORTS SAE AUXILIARY PORTS
PUMP SPECIAL FEATURES	ADJUSTABLE MAX DISPLACEMENT STOP(CONTAINS SINGLE SHAFT SEAL)
CONTROL	PRESSURE COMPENSATOR
PRESSURE COMP SET	66-74 BAR [957-1073 LBF/IN2]
FLOW COMP UNLD VLV RPC SET	NONE
UNLD VLV TQ CONTROL SET	NONE
COMP SPECIAL FEATURES	NONE
Auxiliary mounting	SAE A 2-BOLT 9T SPLINE ALL MODELS
Paint	BLACK [DEFAULT]
Customer identification	NONE
DESIGN CODE	A
Brand	Vickers by Danfoss
CODE TITLE	VICKERS VARIABLE DISPLACEMENT OPEN CIRCUIT PISTON PUMPS
IPM FRAME SIZE	PVM Code A 63cc Pump
Model Code 1	PVM063ER09GS02AAA0700000 AA0A

123AL00124A: frequently asked questions

When can 123AL00124A be shipped?

123AL00124A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 123AL00124A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 123AL00124A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 123AL00124A, subject to availability and destination.
