Danfoss 123AL00008B

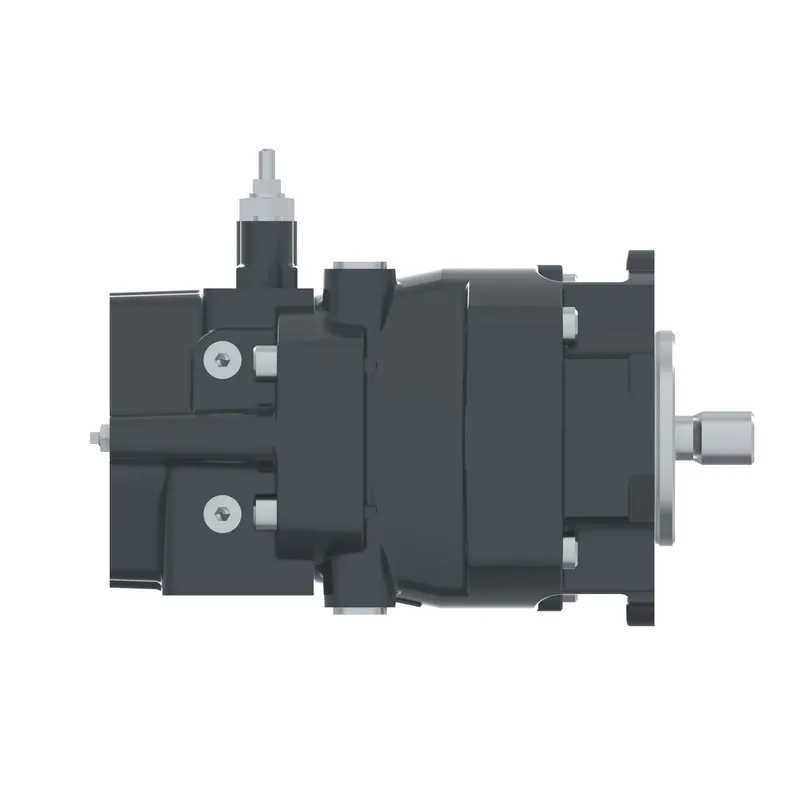

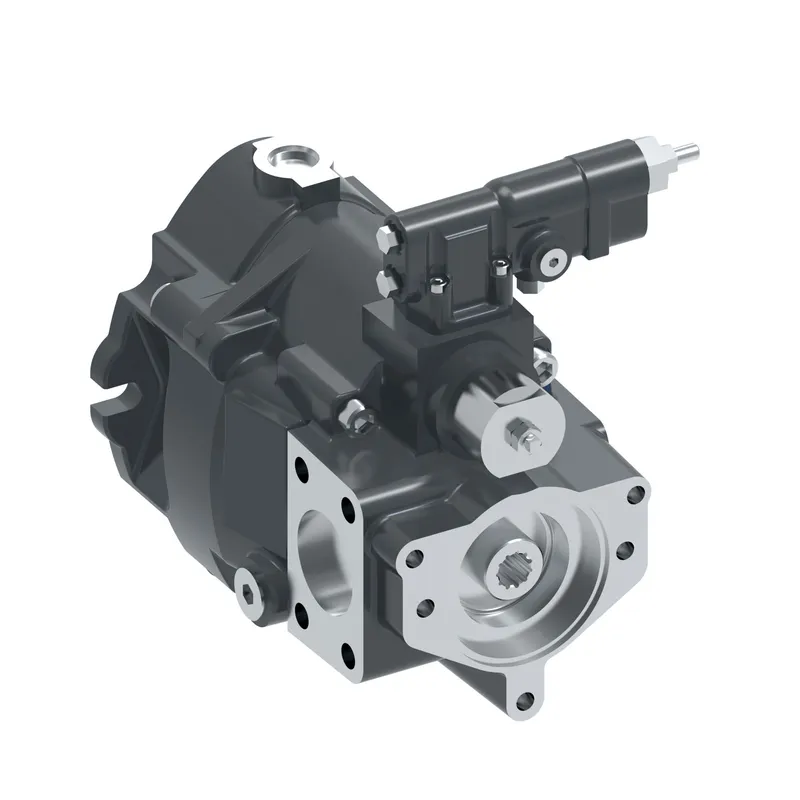

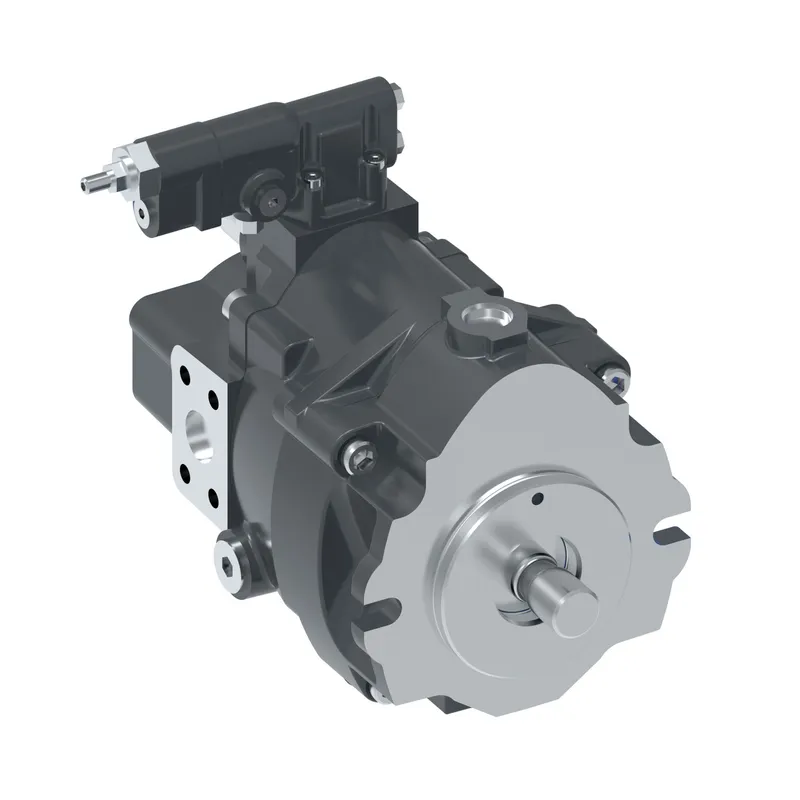

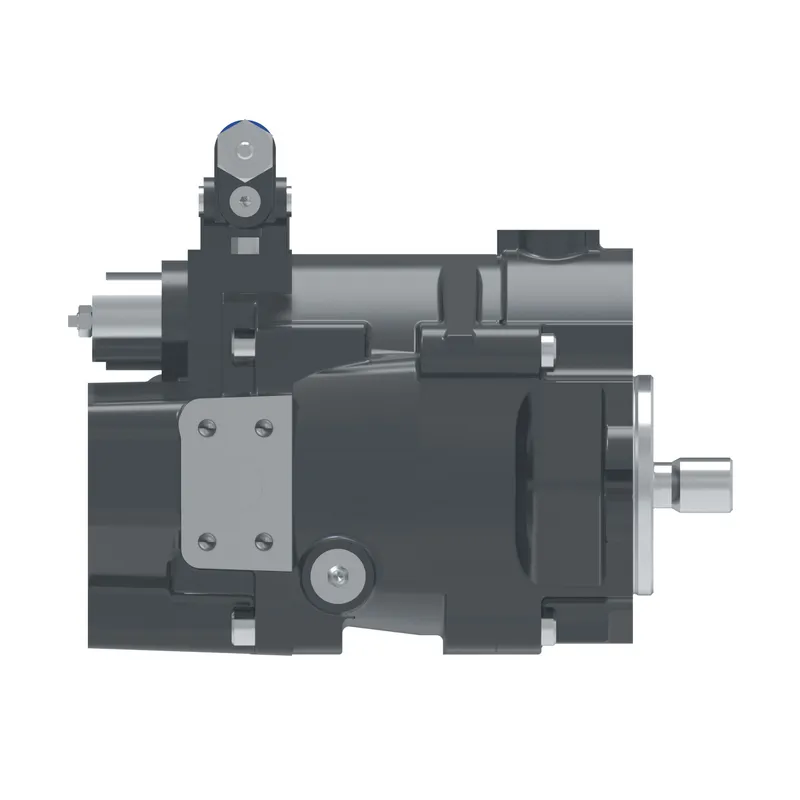

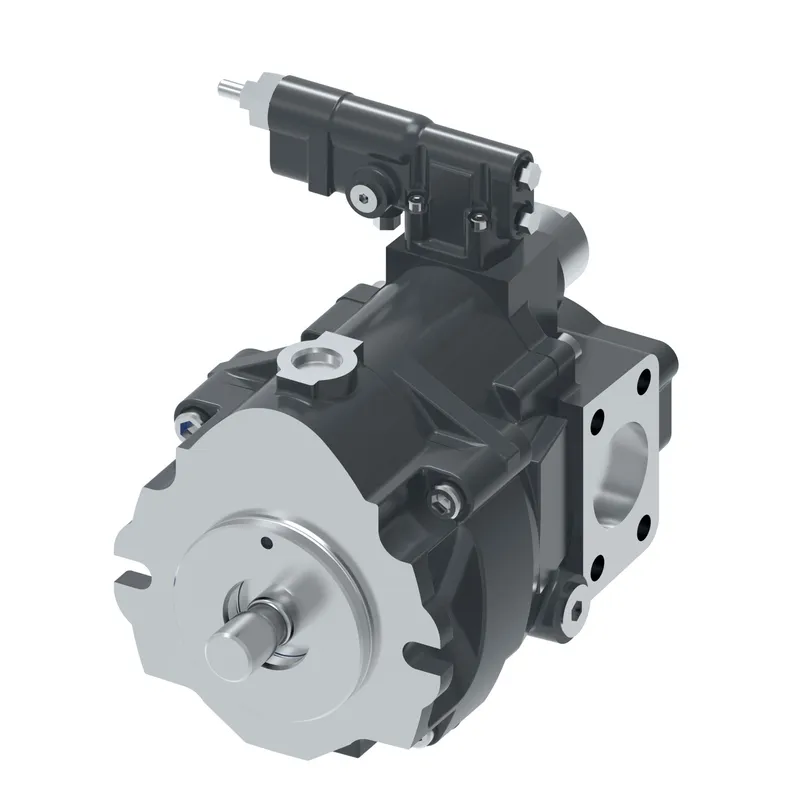

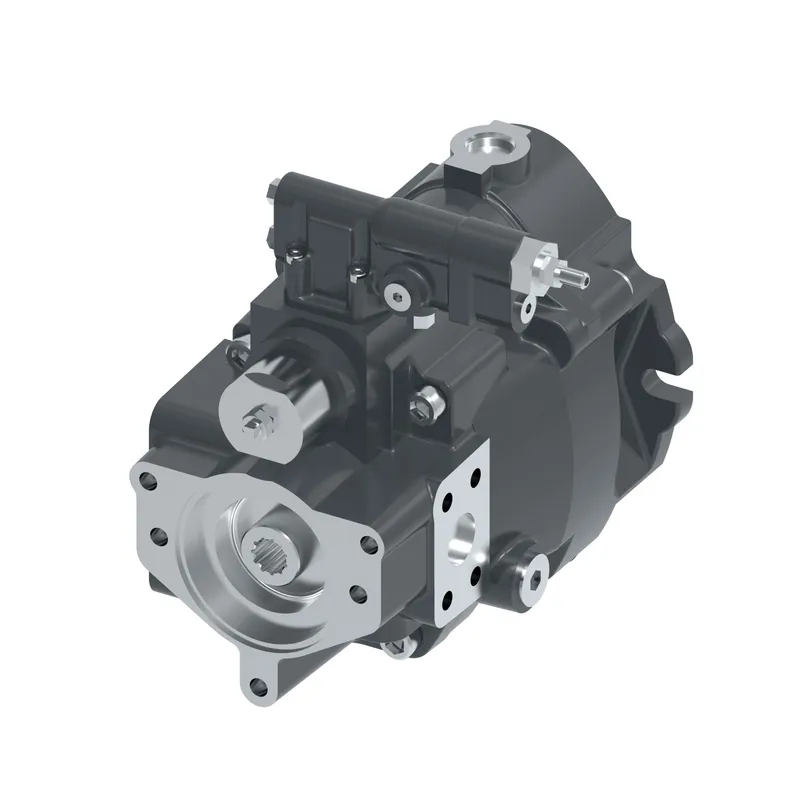

PVM045ER07CS2C230200001AB-BD00, PVM045ER07CS2C230200001AB-BD00

MPN: 123AL00008B
Category: Medium-duty open-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 123AL00008B?

Danfoss PVM045ER07CS2C230200001AB-BD00, PVM045ER07CS2C230200001AB-BD00, manufacturer part number 123AL00008B. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

CODE TITLE	VARIABLE DISPLACEMENT OPEN CIRCUIT PISTON PUMPS
DISPLACEMENT	45.1 cm3/r [2.75 in3/r] (315 bar MAX)
Valve plate	INDUSTRIAL (1800 r/min MAX)
Input rotation	CLOCKWISE (RIGHTHAND)
INPUT SHAFT	SAE J744-22-4, SAE B, 13T SPLINE (MODEL 010, 013, 018,045 AND 057)
Mounting Flange	SAE J744-101-2(B 2-BOLT) (MODELS 010, 013, 018 AND 045)
MAIN PORT LOCATION	SIDE
PORT OPTIONS	SAE J518 FLANGE PORTS, SAE AUXILIARY PORTS
CONTROL	PRESSURE AND FLOW COMPENSATOR WITH PLUGGED ORIFICE
PRESSURE COMP SETTING	230±4 bar [3335±58 lbf/in2][DEFAULT][OVERBORE CC]
FLOW COMP SETTING	20±1 bar [290±14.5 lbf/in2][DEFAULT]
POWER CONTROL SETTING	NONE
Auxiliary mounting	AUXILIARY A-MOUNT WITH COVER PLATE AND NO COUPLER
Paint	BLACK [DEFAULT]
DESIGN CODE	B
DIFFERENTIATOR	-
PUMP SPECIAL FEATURES	ADJUSTABLE MAX DISPLACEMENT STOP SET AT 30-34 CM3/R [1.83-2.07 IN3/R] (CONTAINS SINGLE SHAFT SEAL)
COMPENSATOR SPECIAL FEATURES	NONE
Customer identification	NONE
Brand	Vickers by Danfoss
IPM FRAME SIZE	PVM Code B 45cc Pump
Model Code 1	PVM045ER07CS2C230200001AB-BD00
Proposition 65	Cancer and Reproductive Harm
