Home / Danfoss (Drives) / Medium-duty open-circuit piston pumps / Danfoss 123AL00002B

Danfoss (Drives)

Danfoss 123AL00002B

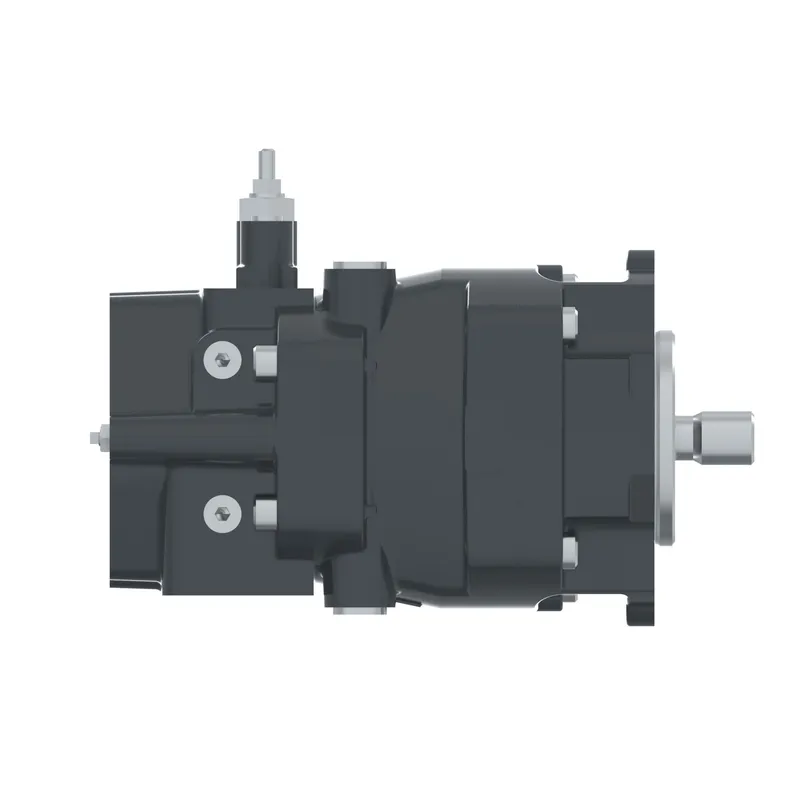

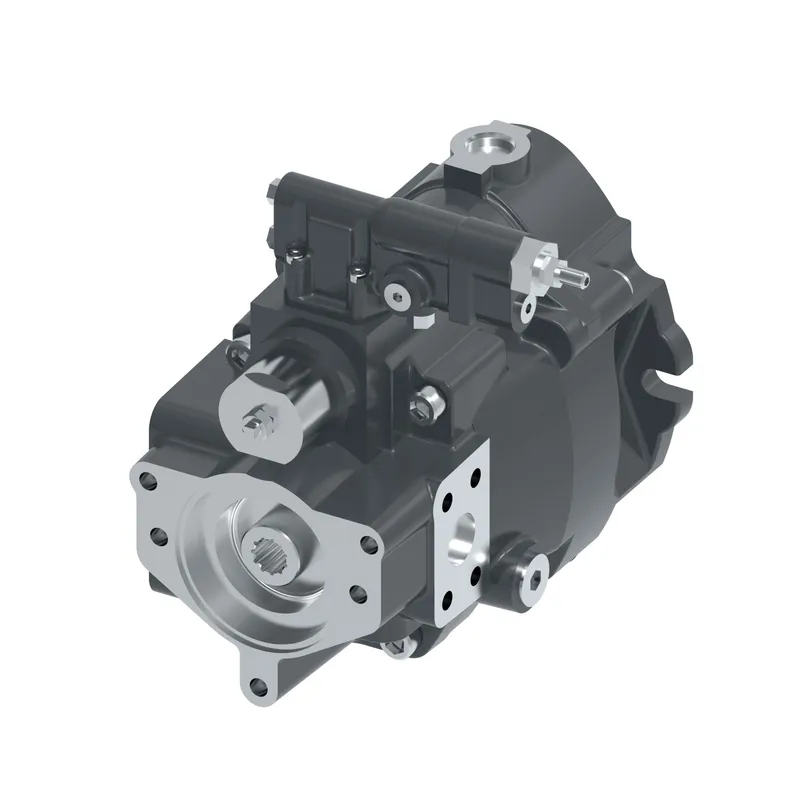

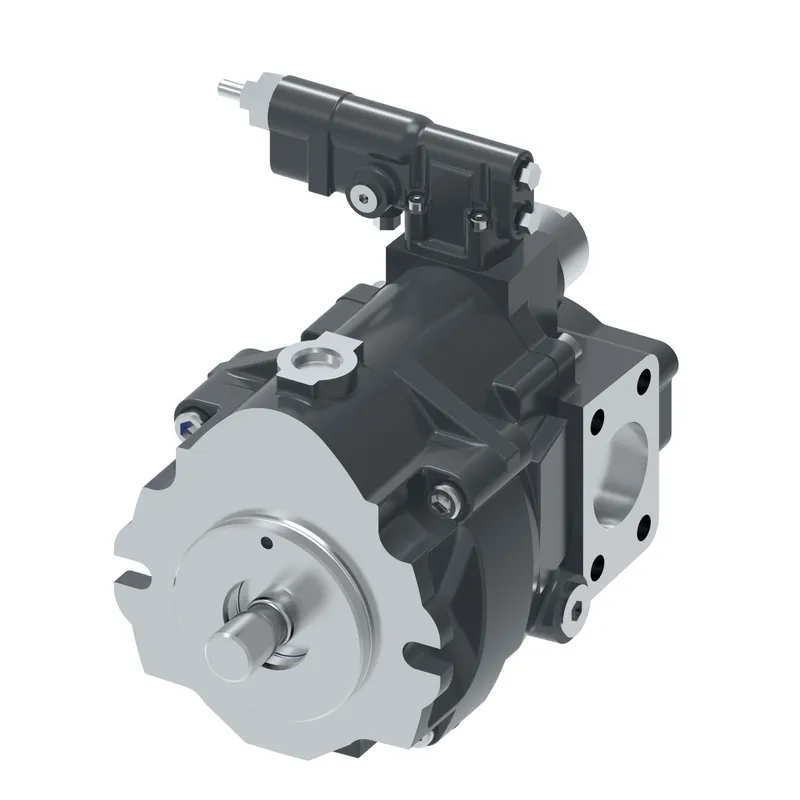

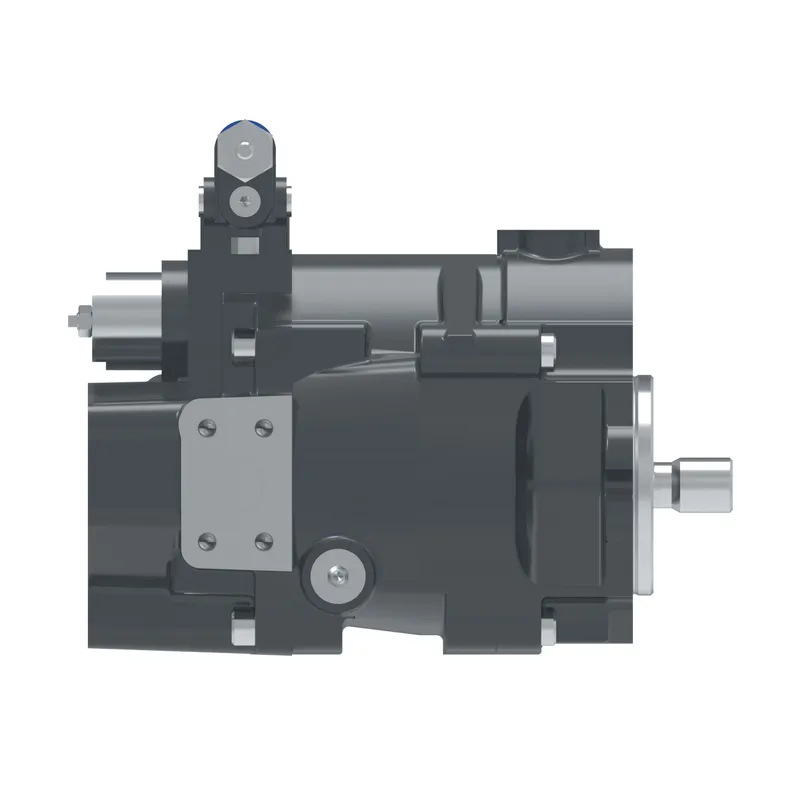

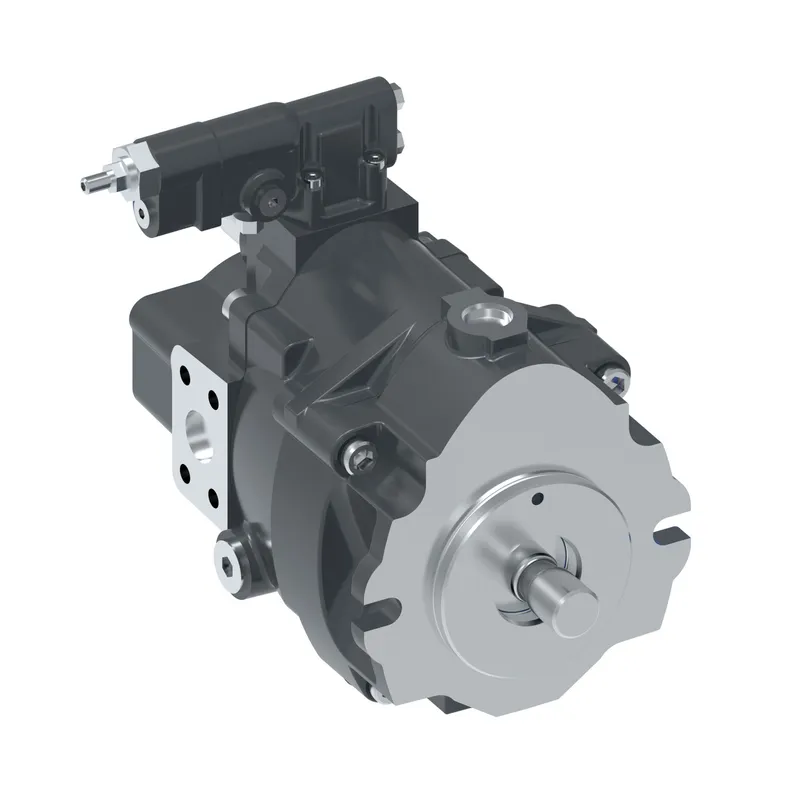

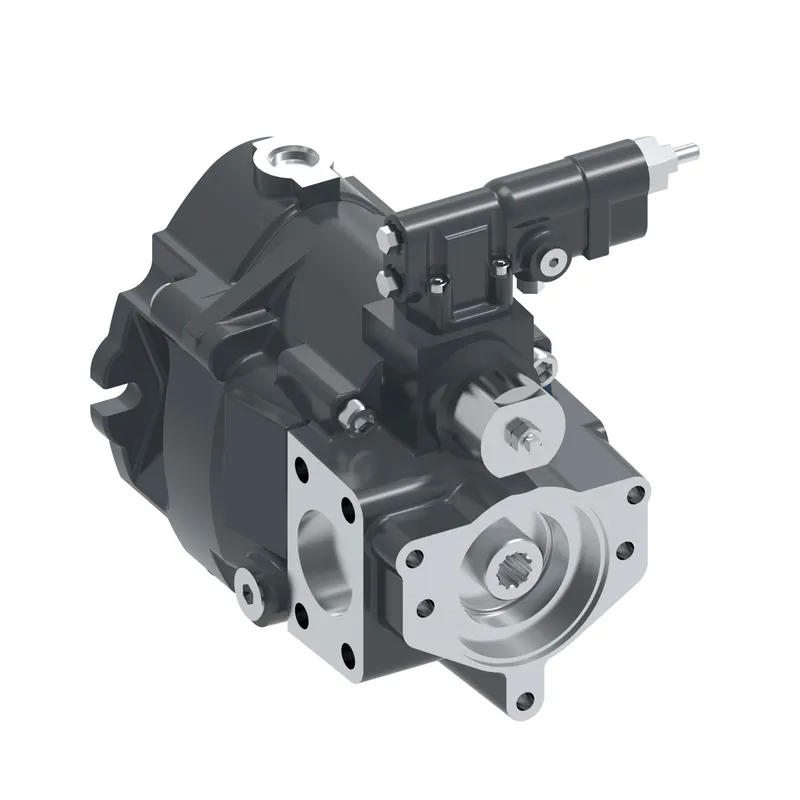

PVM045ER05CS2C315200001AB-BD00, PVM045ER05CS2C315200001AB-BD00

MPN: 123AL00002B
Category: Medium-duty open-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 123AL00002B?

Danfoss PVM045ER05CS2C315200001AB-BD00, PVM045ER05CS2C315200001AB-BD00, manufacturer part number 123AL00002B. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

CODE TITLE	VARIABLE DISPLACEMENT OPEN CIRCUIT PISTON PUMPS
DISPLACEMENT	45.1 cm3/r [2.75 in3/r] (315 bar MAX)
Valve plate	INDUSTRIAL (1800 r/min MAX)
Input rotation	CLOCKWISE (RIGHTHAND)
INPUT SHAFT	SAE J744-22-1, SAE B, STRAIGHT KEYED (MODEL 010, 013, 018 AND 045)
Mounting Flange	SAE J744-101-2(B 2-BOLT) (MODELS 010, 013, 018 AND 045)
MAIN PORT LOCATION	SIDE
PORT OPTIONS	SAE J518 FLANGE PORTS, SAE AUXILIARY PORTS
CONTROL	PRESSURE AND FLOW COMPENSATOR WITH PLUGGED ORIFICE
PRESSURE COMP SETTING	315 bar [4567 lbf/in2][DEFAULT]
FLOW COMP SETTING	20±1 bar [290±14.5 lbf/in2][DEFAULT]
POWER CONTROL SETTING	NONE
Auxiliary mounting	AUXILIARY A-MOUNT WITH COVER PLATE AND NO COUPLER
Paint	BLACK [DEFAULT]
DESIGN CODE	B
DIFFERENTIATOR	-
PUMP SPECIAL FEATURES	ADJUSTABLE MAX DISPLACEMENT STOP SET AT 30-34 CM3/R [1.83-2.07 IN3/R] (CONTAINS SINGLE SHAFT SEAL)
COMPENSATOR SPECIAL FEATURES	NONE
Customer identification	NONE
Brand	Vickers by Danfoss
IPM FRAME SIZE	PVM Code B 45cc Pump
Model Code 1	PVM045ER05CS2C315200001AB-BD00
Proposition 65	Cancer and Reproductive Harm

123AL00002B: frequently asked questions

When can 123AL00002B be shipped?

123AL00002B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 123AL00002B in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 123AL00002B and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 123AL00002B, subject to availability and destination.
