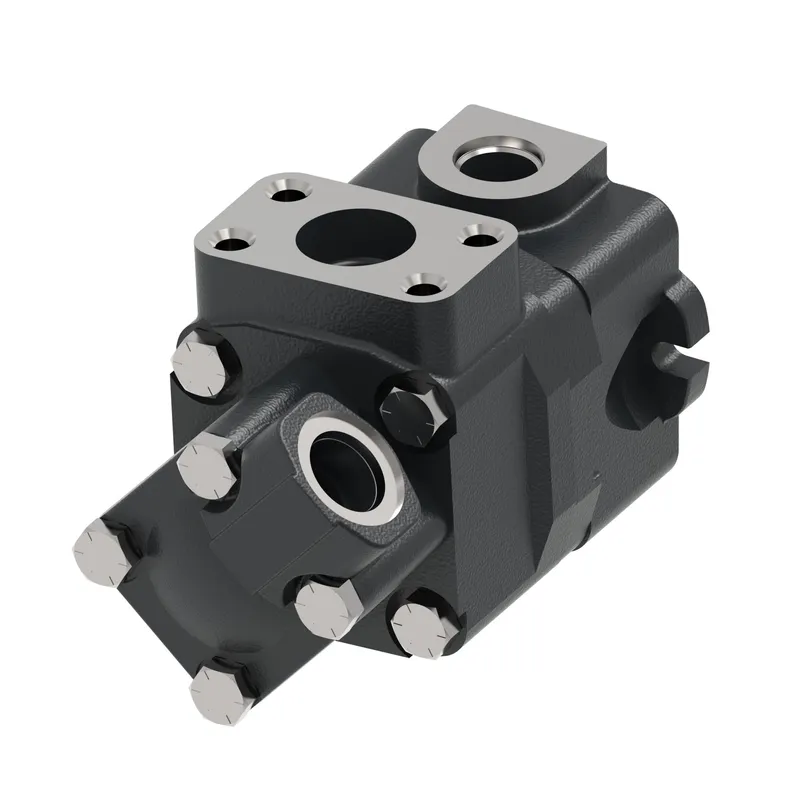

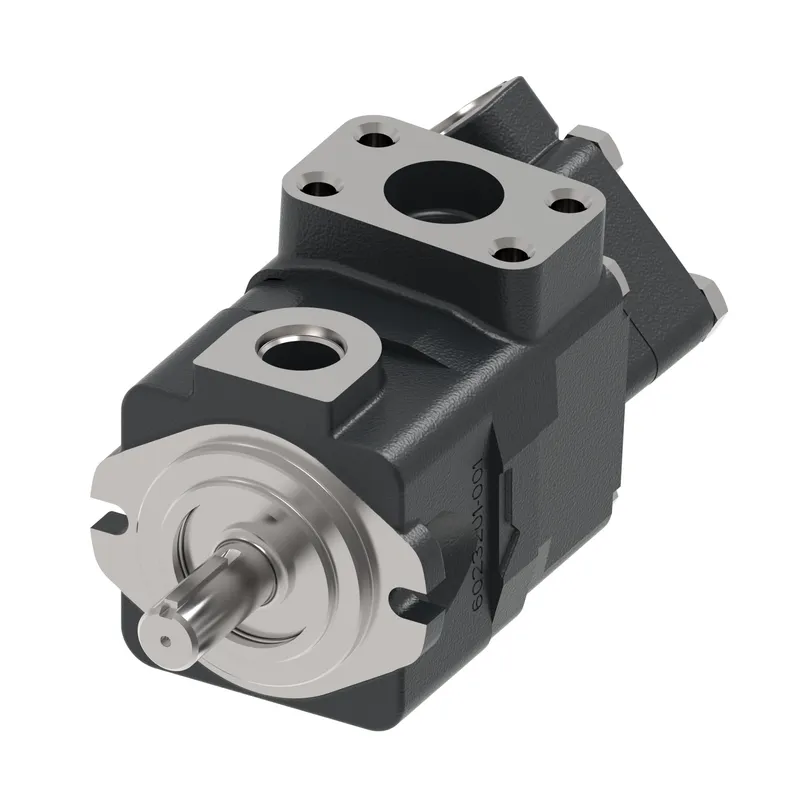

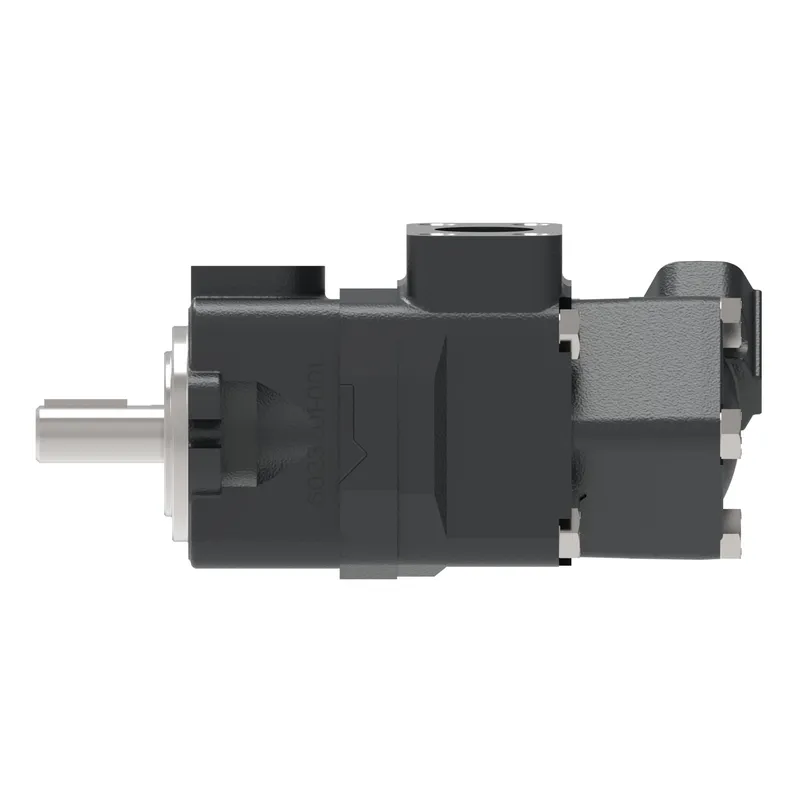

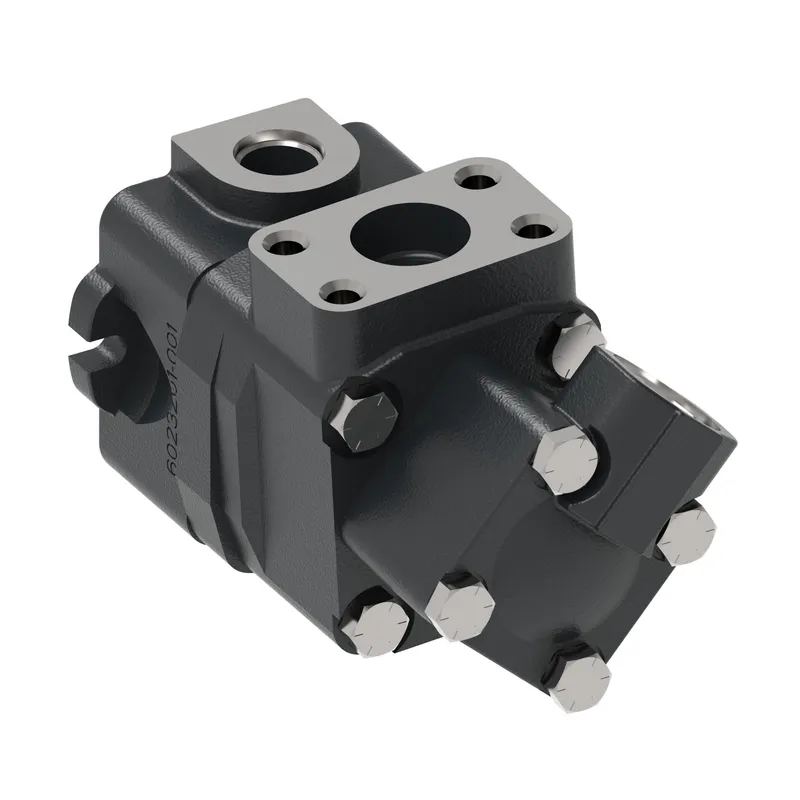

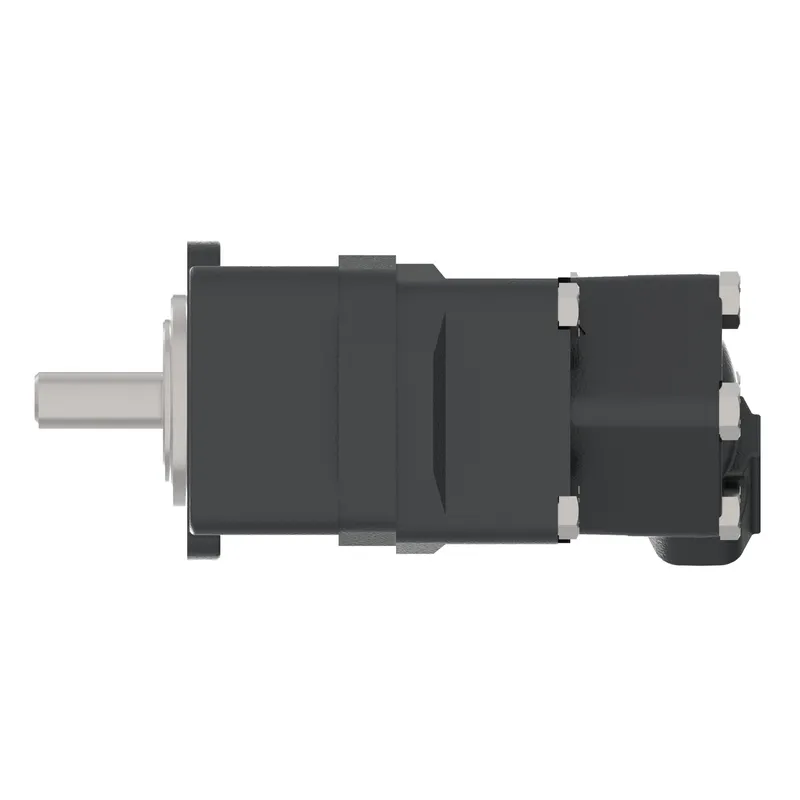

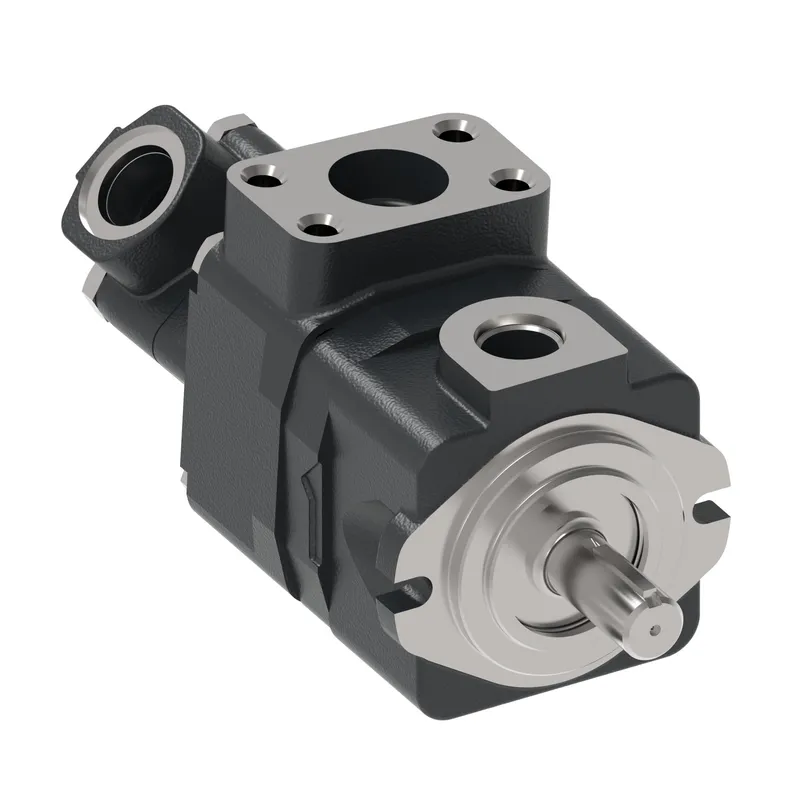

V2010HS01F07S05SB011CD00ZAL000AZ31, V2010HS01F07S05SB011CD00ZAL000AZ31
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Industrial vane pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 12043866 be shipped?
12043866 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 12043866 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 12043866 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 12043866, subject to availability and destination.
Danfoss V2010HS01F07S05SB011CD00ZAL000AZ31, V2010HS01F07S05SB011CD00ZAL000AZ31, manufacturer part number 12043866. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| SEALS TYPE | STANDARD SEAL |
| PUMP TYPE | VANE PUMP |
| Series | DOUBLE SQUARE PUMP |
| Cover type | STANDARD COVER |
| Mounting type | 2 BOLT FLANGE SAE-B SIZE |
| INLET PORT TYPE | 4 BOLT FLANGE |
| RING CAPACITY COVER SIDE | 5 GPM |
| RING CAPACITY SHAFT END | 7 GPM |
| OUTLET PORT TYPE SHAFT END | 1.0625-12 UN-2B THREAD |
| SHAFT SEAL AND BEARING | SINGLE LIP SEAL AND SEALED BEARING |
| Shaft type | 13TEETH 16/32 MDF,MAJOR DIA-.873, EXTENSION-1.62 |
| OUTLETCOVER PORT ORIENTATION | OUTLET#2: 135 ° CW FROM INLET PORT ,OUTLET#1:INLINE WITH INLET PORT |
| OUTLET PORT TYPE COVER SIDE | .750-16 UN-2B THREAD |
| Shaft rotation | LH CCW ROTATION VIEWED FROM SHAFT END |
| Brand | Vickers by Danfoss |
| Model Code 1 | V2010HS01F07S05SB011CD00ZAL000 |
| Model Code 2 | AZ31 |
