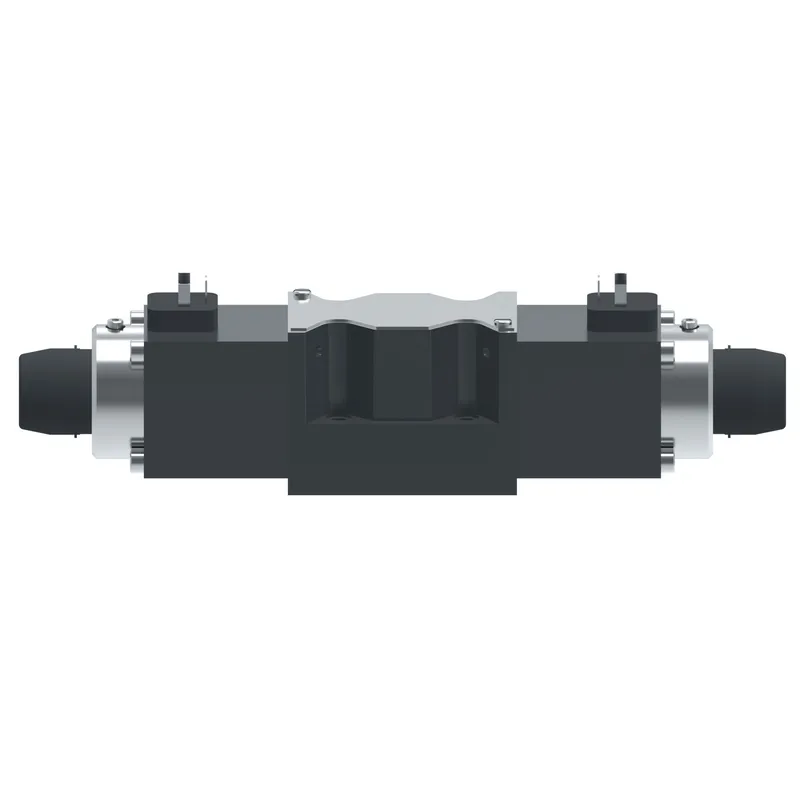

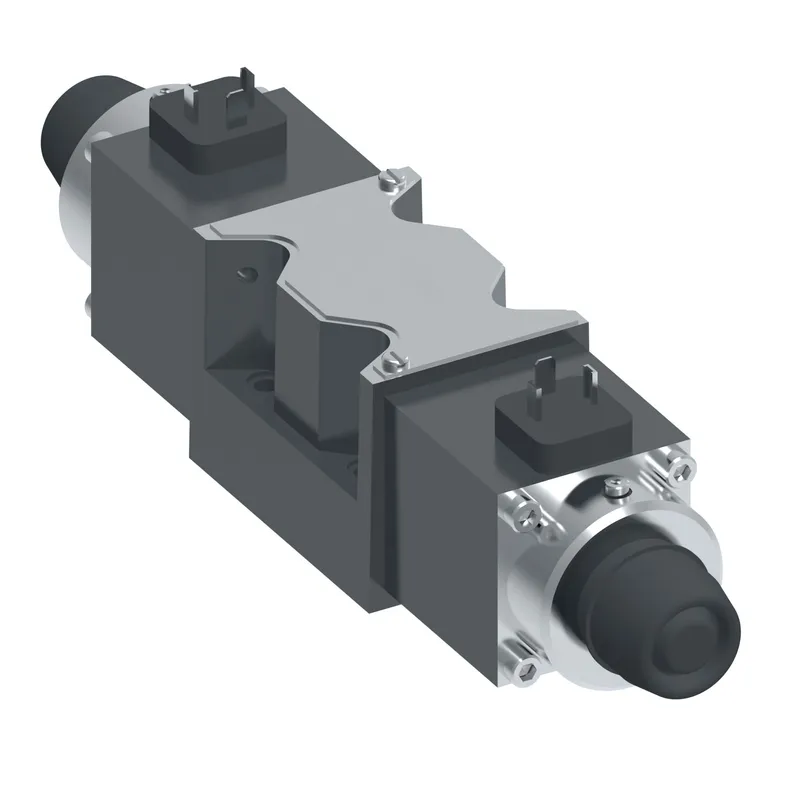

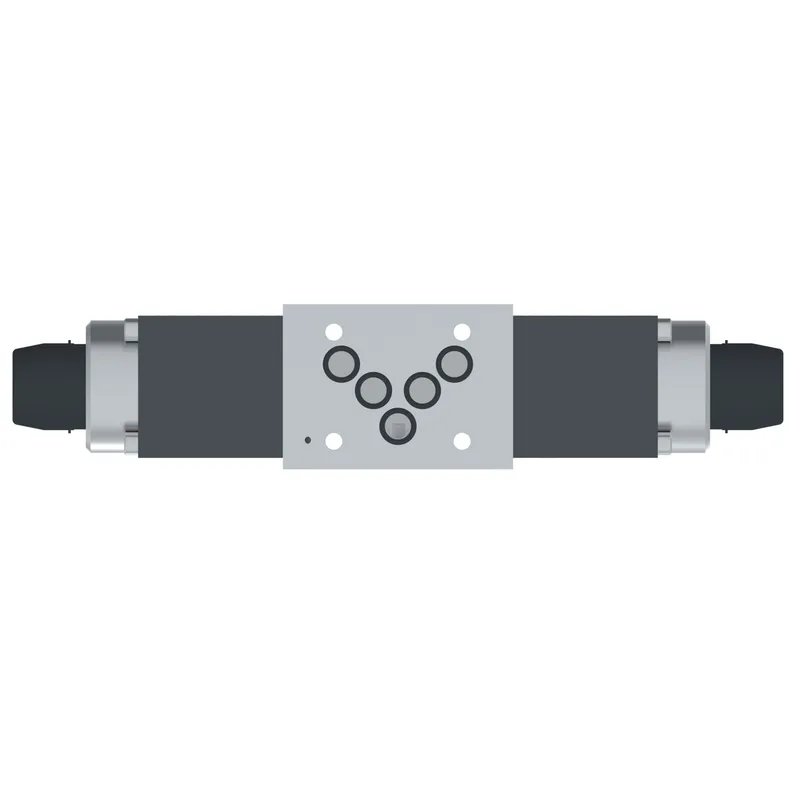

Danfoss 12008495

KBFDG4V-3-33C03N-Z-M1-PC7-H7-12, KBFDG4V333C03NZM1PC7H712

MPN: 12008495
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 12008495?

Danfoss KBFDG4V-3-33C03N-Z-M1-PC7-H7-12, KBFDG4V333C03NZM1PC7H712, manufacturer part number 12008495. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	3.00
A Port flow USGPM	0.80
Actuation Type	Solenoid controlled
B Port flow LPM	3.00
B Port flow USGPM	0.80
Brand	Vickers by Danfoss
Build orientation	Standard as per ANSI B93 9
Build type	Spring centered
Coil voltage	24 Volt DC
Command input	+/- 10V control signal
Communication protocol	None
Design Series	12 Series
Electrical Connection	Electrical (PC7) 7 pin connector without plug
Feedback sensor	Yes
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-03/NFPA D03/CETOP 3/NG06
Manual override	None
Maximum pressure BAR	350
Maximum pressure PSI	5000
Metering	Meter in / meter out
Model Code 1	KBFDG4V333C03NZM1PC7H712
On board electronics	Yes
Performance	High
ProFX compatible	No
Reducer module	No
Reverse flow check	No
Seal type	Viton
Special features	None
Spool Type	P blocked, A & B to tank
Stage	Single stage
Symmetric flow	Yes
Tank port rating BAR	210
Tank port rating PSI	3000
Valve Mount Type	Subplate
Valve type	Proportional directional
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
