Danfoss 119-1037-003

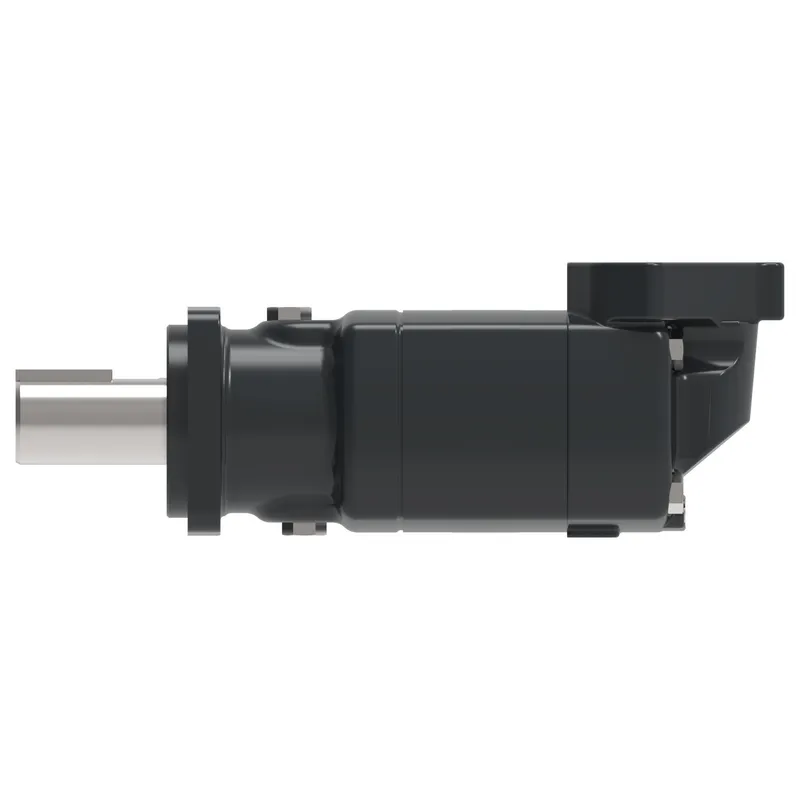

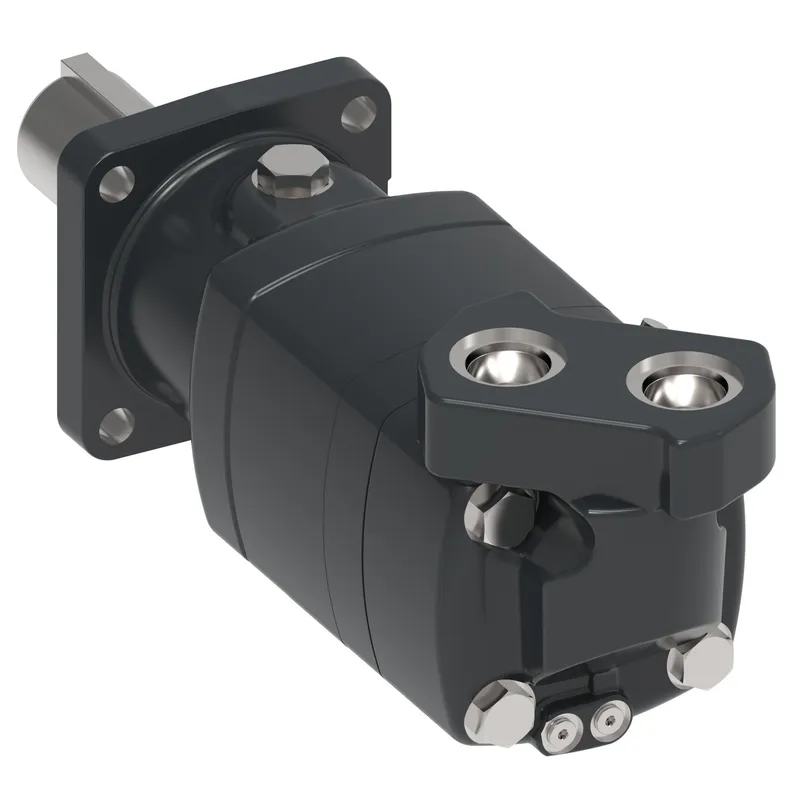

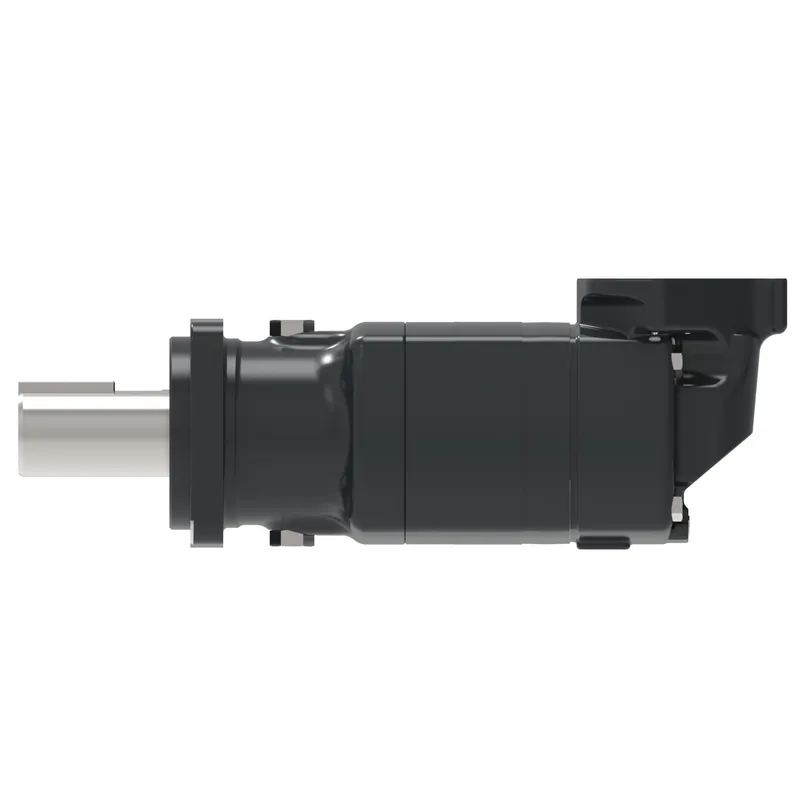

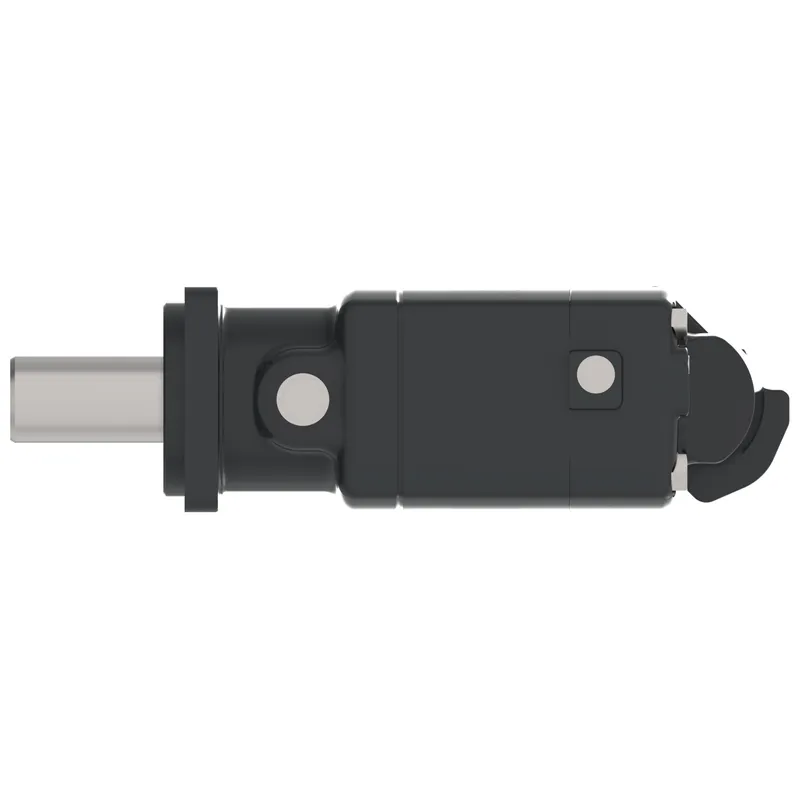

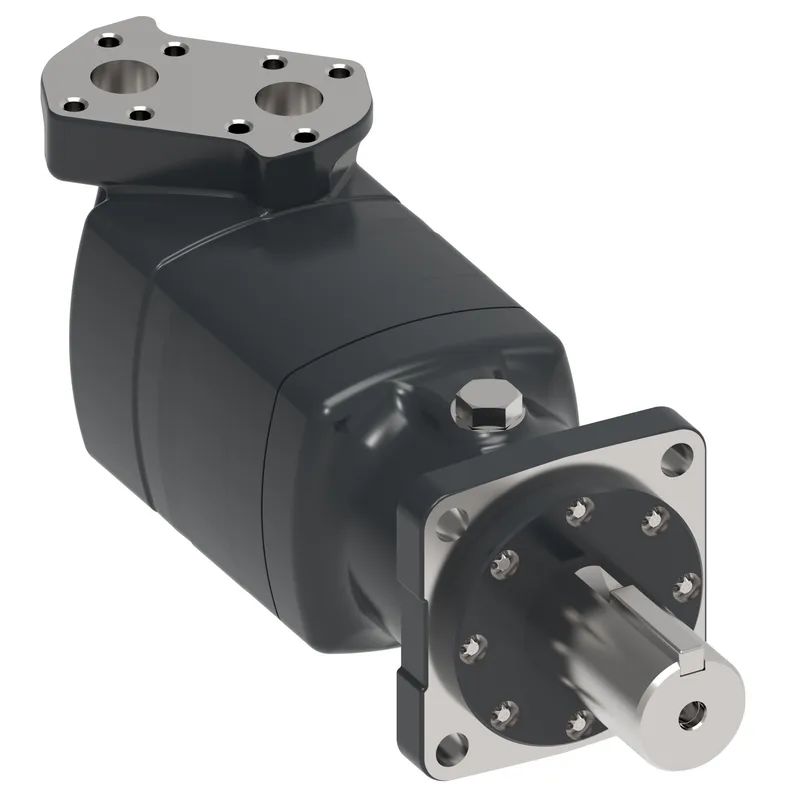

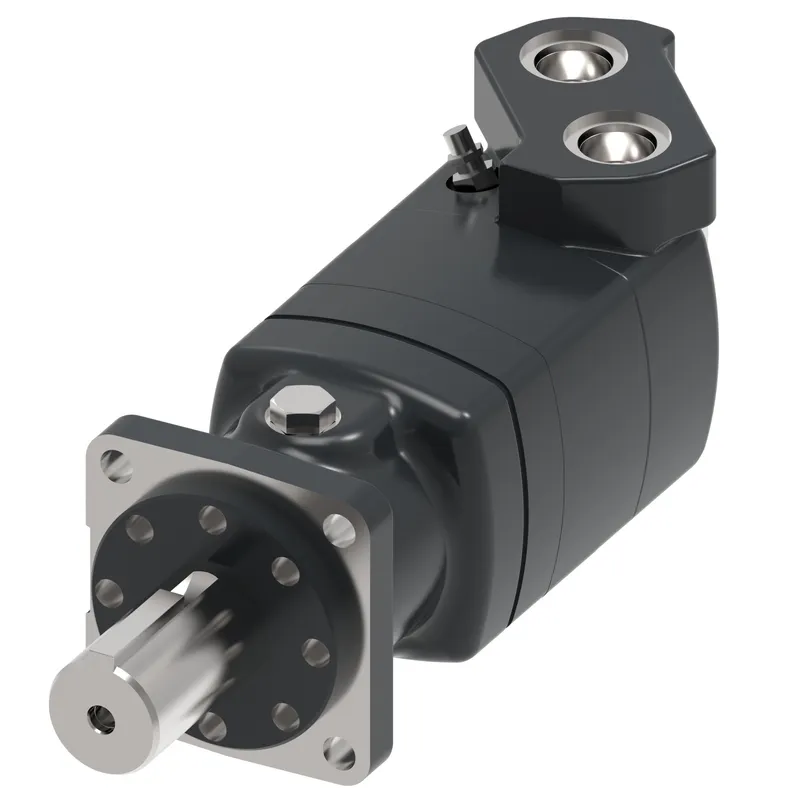

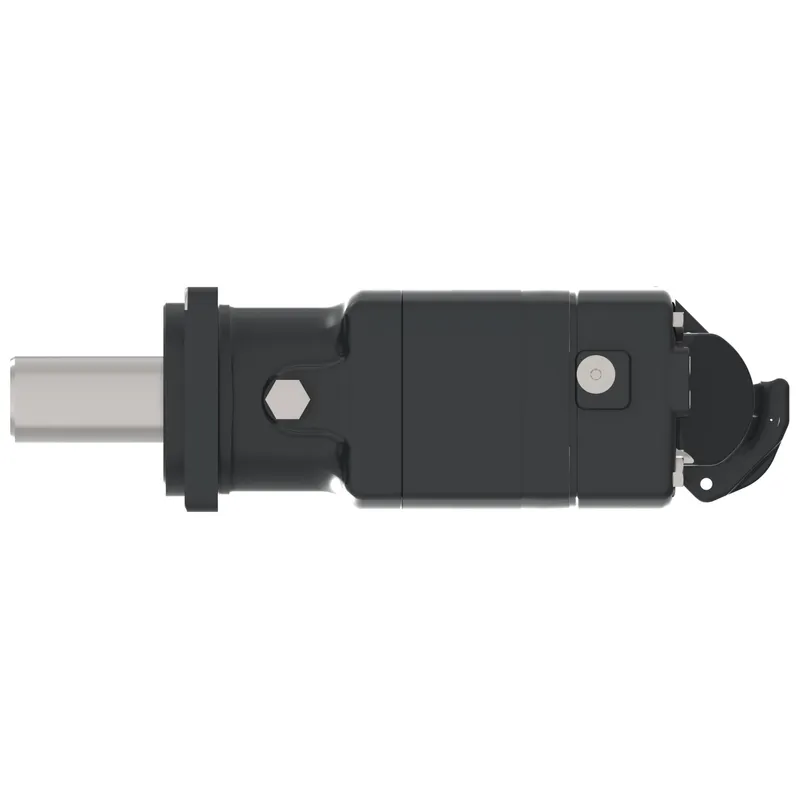

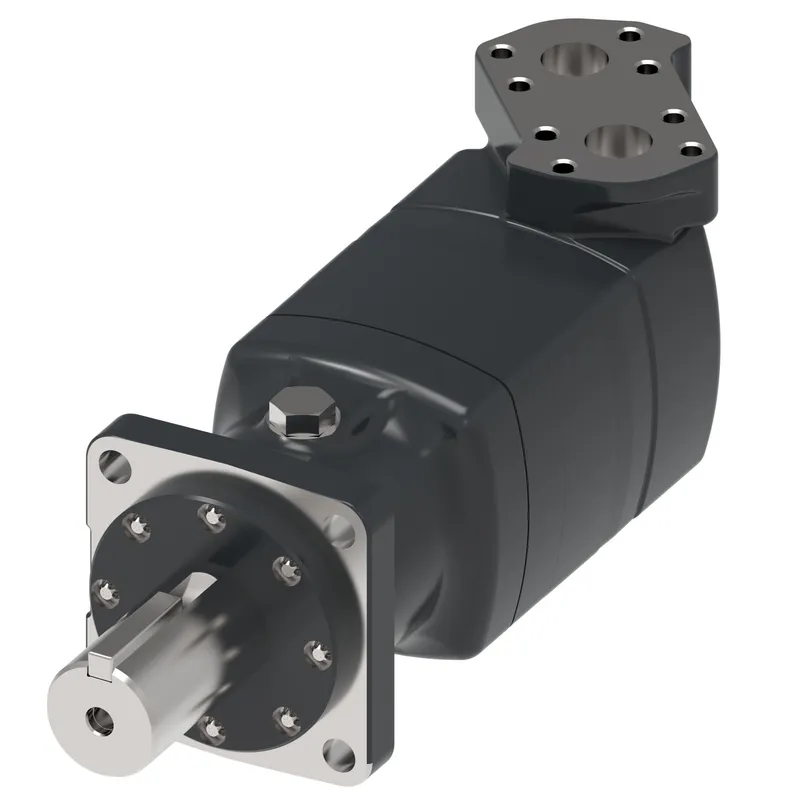

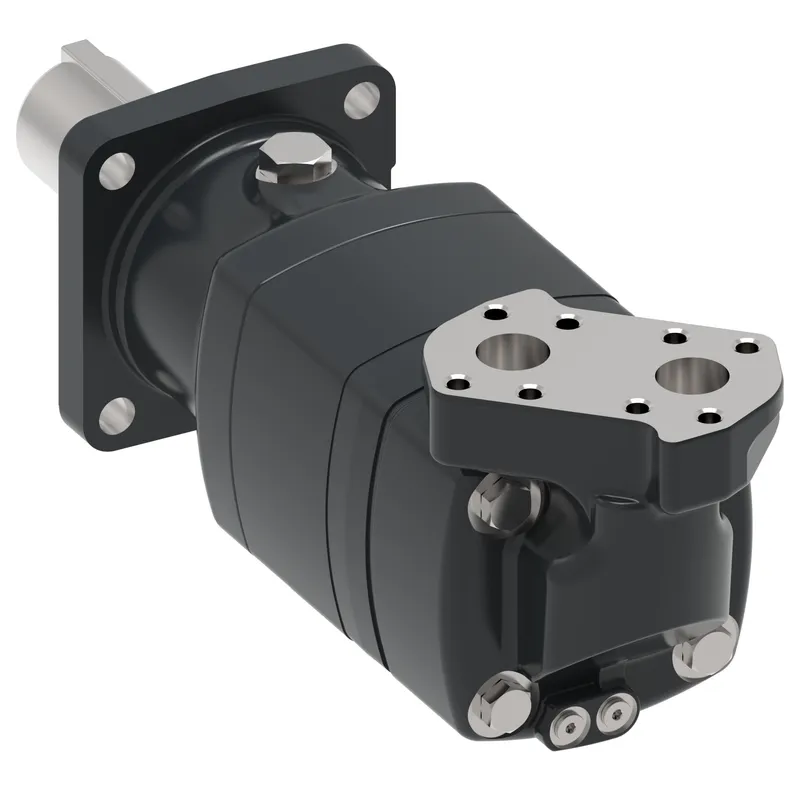

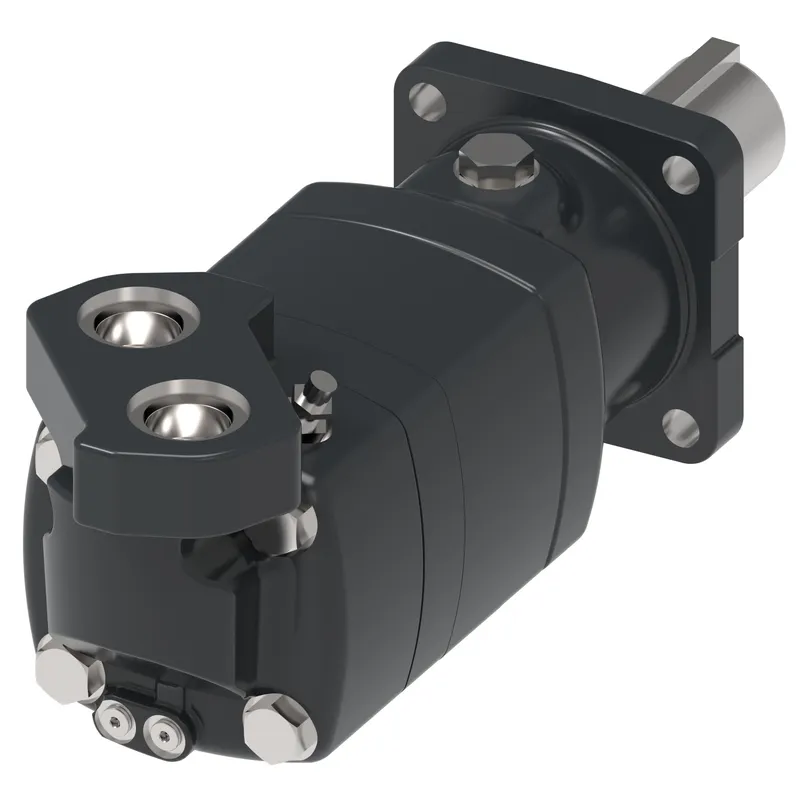

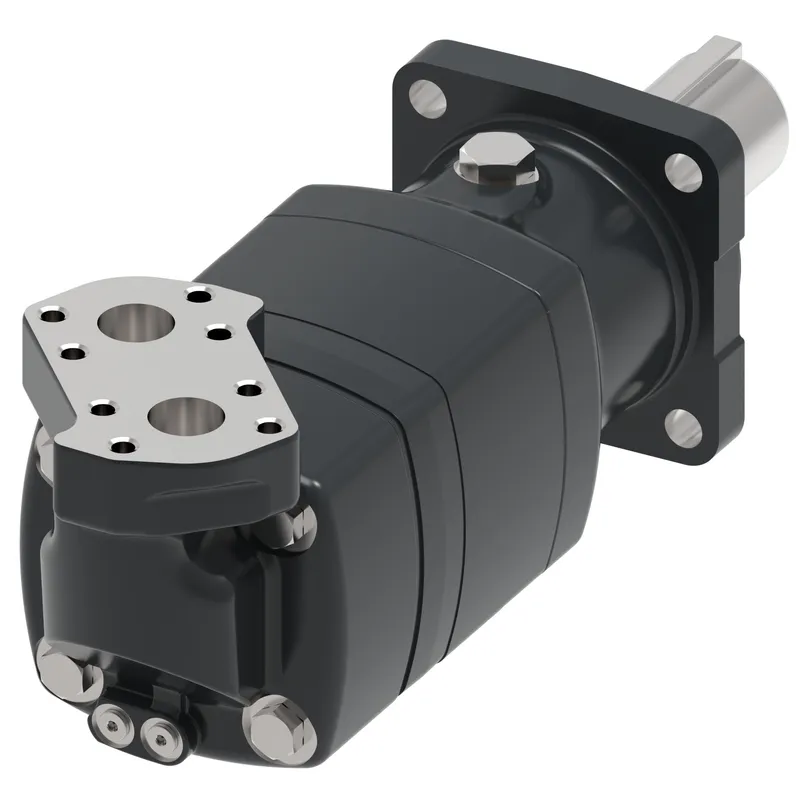

MOTOR-ORBITAL,10000 SERIES 480 [29.26], M10293AA02AA01000000000000000C

MPN: 119-1037-003
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 119-1037-003?

Danfoss MOTOR-ORBITAL,10000 SERIES 480 [29.26], M10293AA02AA01000000000000000C, manufacturer part number 119-1037-003. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	M10293AA02AA01000000000000000C
Motor Series	10000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	480
Geometric displacement [cm3/r [in3/r]]	479.5 [29.26)
Motor type	Standard
Motor function	Standard
Mounting flange type	4 Bolt - Square
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	127.0 x 13.8, 161.9, 16.8 [5.00 x 0.54, 6.38, 0.66]
Shaft type	TAPERED
Shaft dimension	Dia. 2 1/4 inch, 1:8 SAE J501, 1 1/2 - 18 UNEF-2A thread in shaft end
Shaft Key	Square key, 9/16 x 2 inch
Main port thread type	UN / UNF
Main port style	Sideport - staggered
Main port dimension	1 5/16 - 12 UN-2B SAE O-Ring port
Drain Port Dimension	9/16 - 18 UNF-2B SAE O-Ring port
Brake Release Port Dimension	n/a
Painted	No
Paint information	n/a
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	NBR - Standard
Seal Kit	No data available
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Orbital gearwheel set	Standard
Check valve function	No
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Danfoss name tag
Design code	3
Brand	Danfoss
Sub brand	Char-Lynn
