Danfoss 114-1013-006

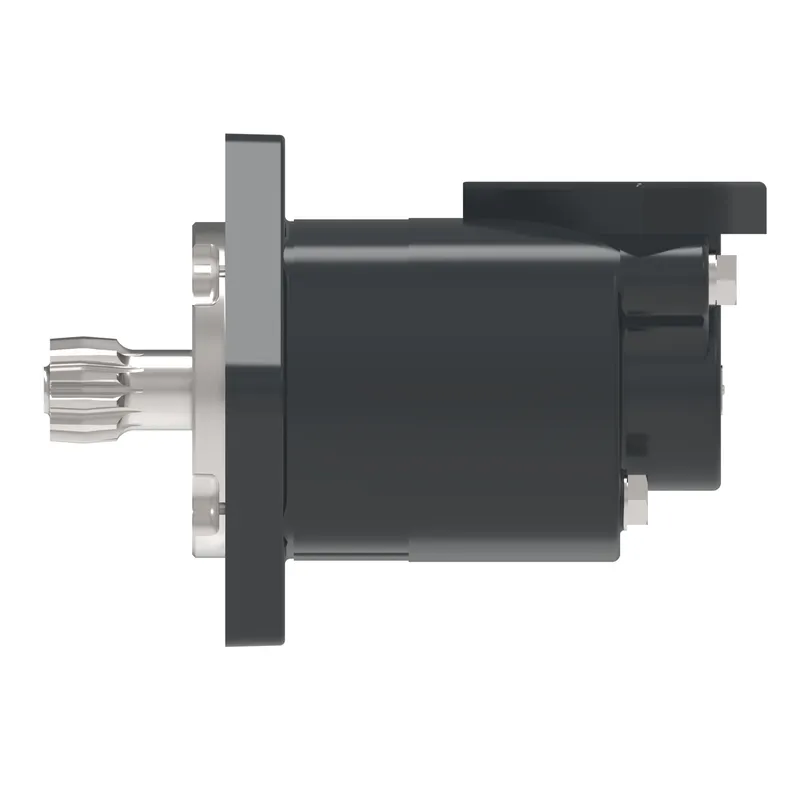

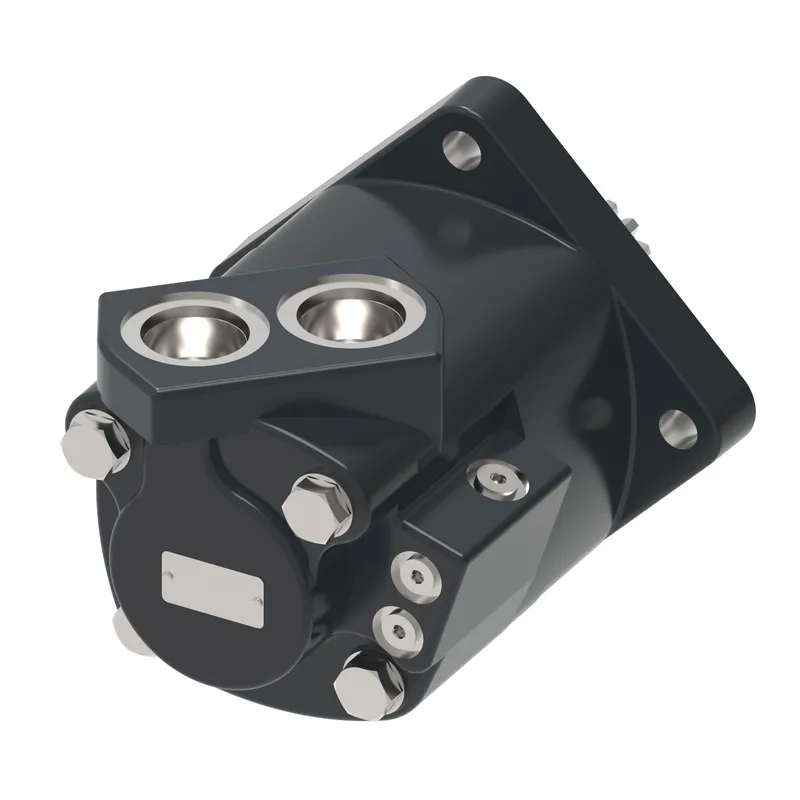

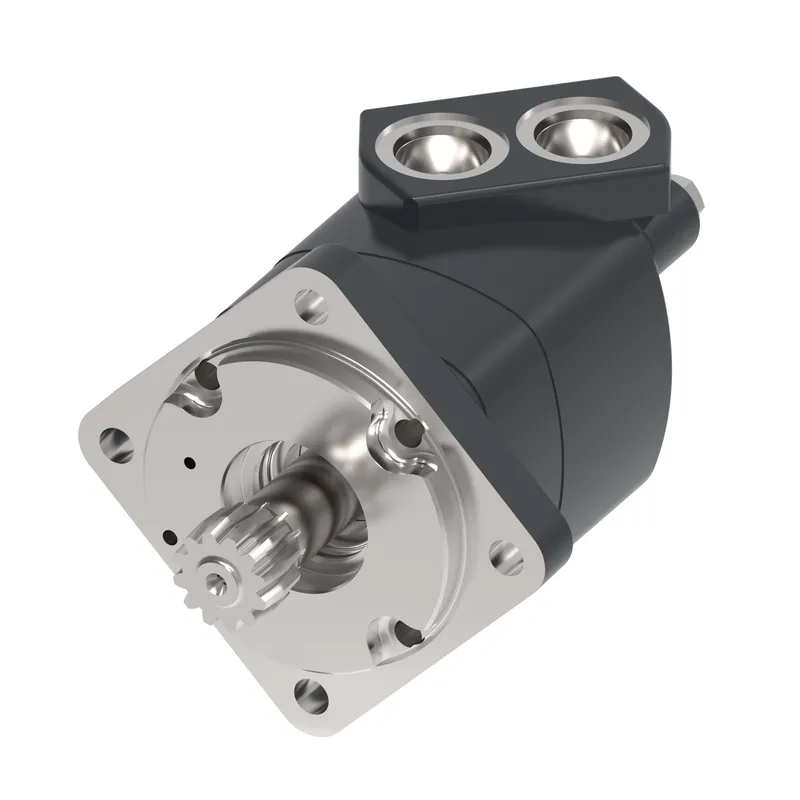

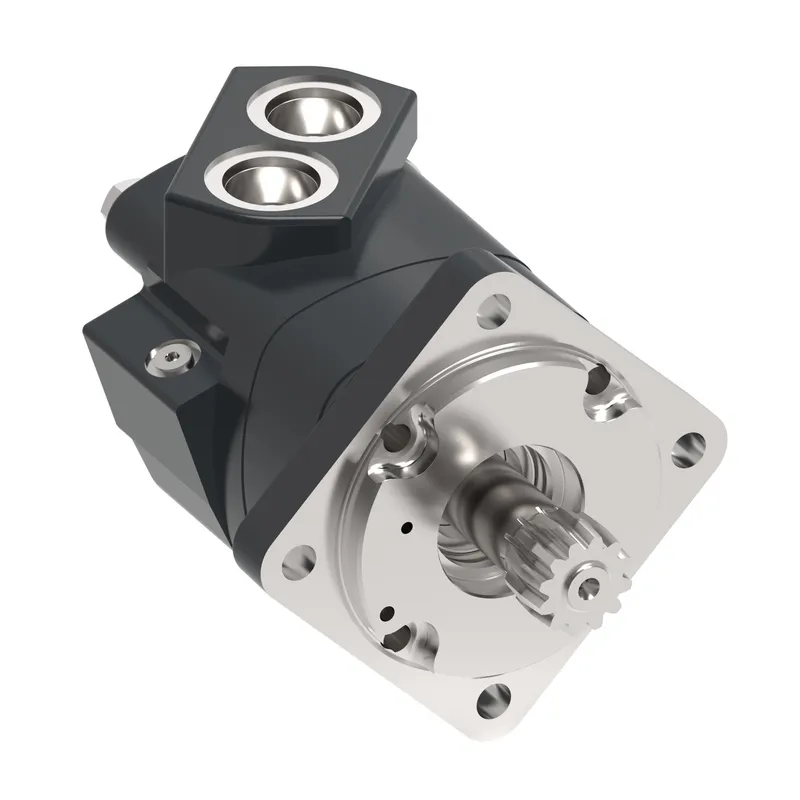

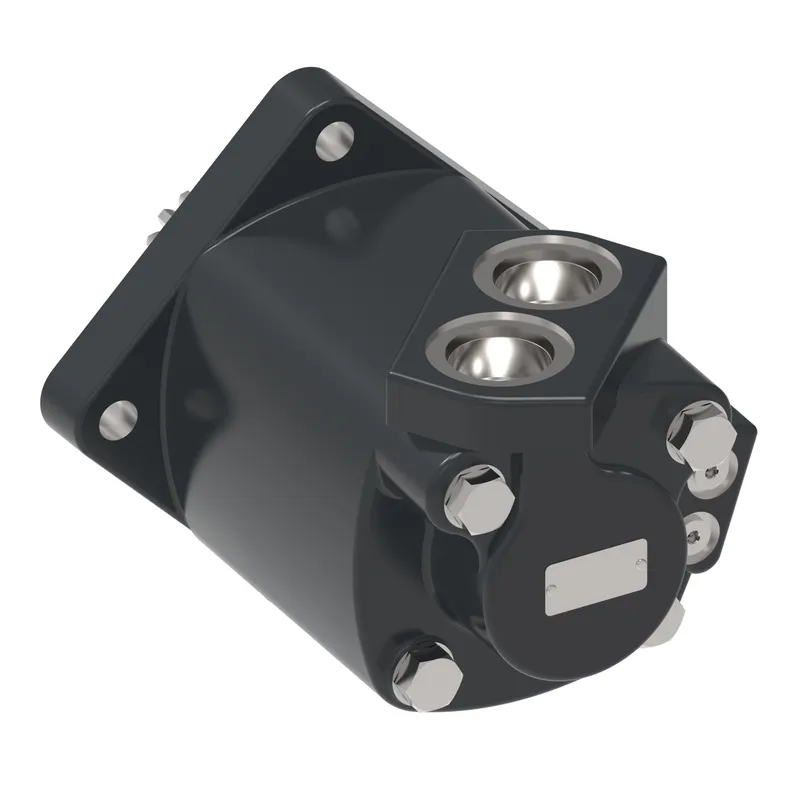

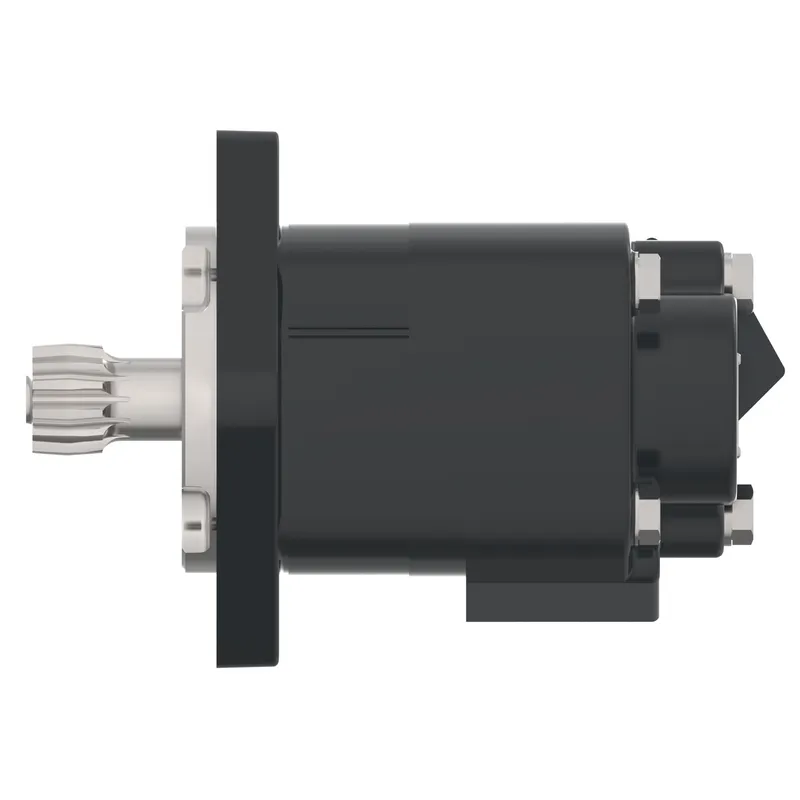

MOTOR-ORBITAL,6000 SERIES 245 [15], M06150AA00AD050000000000000BAF, M06150AA00AD050000000000000BAF

MPN: 114-1013-006
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 114-1013-006?

Danfoss MOTOR-ORBITAL,6000 SERIES 245 [15], M06150AA00AD050000000000000BAF, M06150AA00AD050000000000000BAF, manufacturer part number 114-1013-006. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	M06150AA00AD050000000000000BAF
Motor Series	6000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Mounting type	4 B P127 B162 H14
Motor size	245
Geometric displacement [cm3/r [in3/r]]	246.5 [15.04]
Motor type	Short
Motor function	Standard
Mounting flange type	4 Bolt - Short
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	127.0 x 12.5, 162.0, 14.4 [5.00 x 0.49, 6.38, 0.57]
Shaft type	None
Shaft dimension	n/a
Shaft Key	n/a
Main port thread type	UN / UNF
Main port style	Sideport - staggered
Main port dimension	1 1/16 - 12 UNF-2B SAE O-Ring port
Drain Port Dimension	7/16 - 20 UNF-2B SAE O-Ring port - Spec. Component
Brake Release Port Dimension	n/a
Painted	No
Paint information	n/a
Special Features Assembly	Standard
Dust seal	n/a
Shaft Seal	n/a
Front bearing type	n/a
Rear bearing type	n/a
Orbital gearwheel set	Standard
Check valve function	Yes
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Customized
Design code	06
Brand	Danfoss
Low pressure relief	None
Output shaft type	None
Seal options	Standard
Series	6000 series
Sub brand	Char-Lynn
