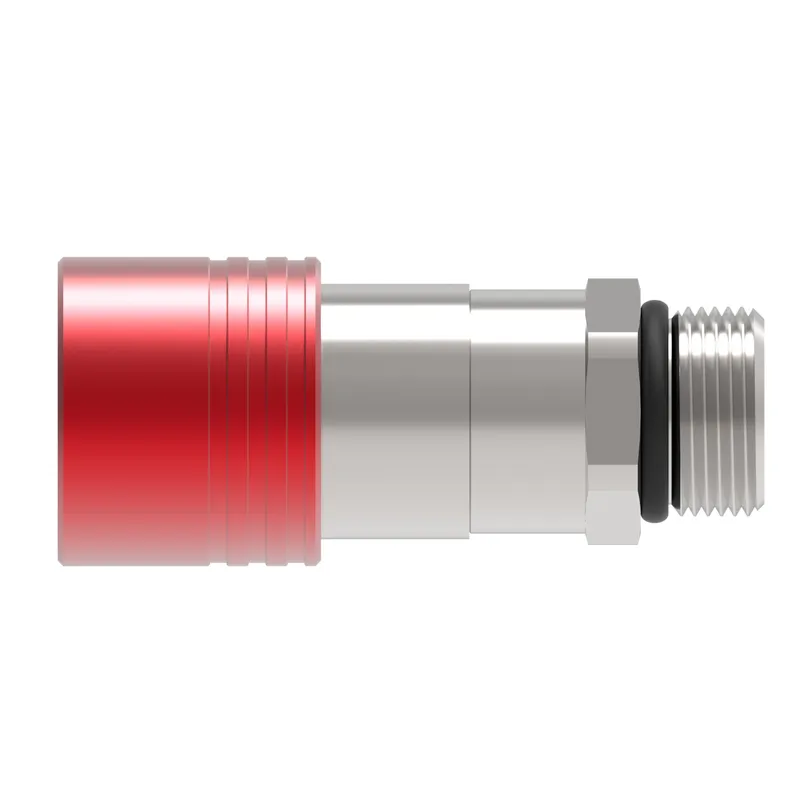

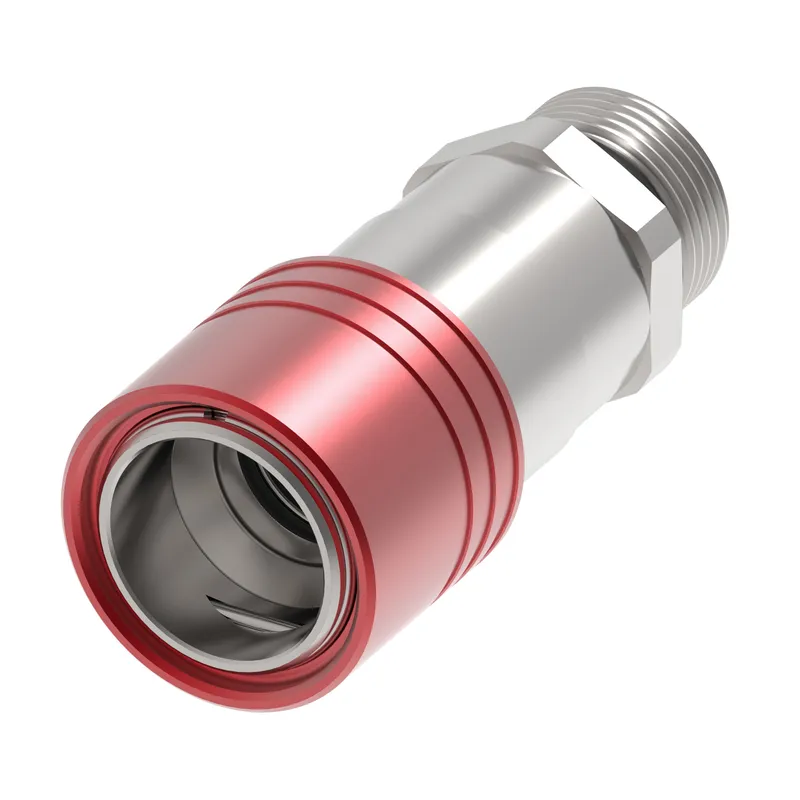

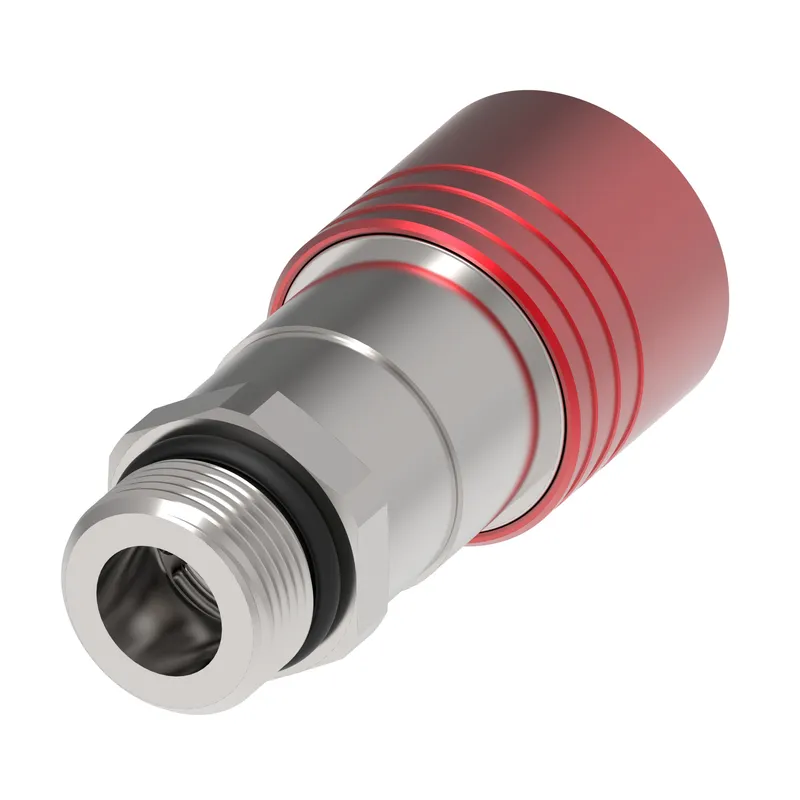

SOCKET FEMALE UQD06 COUPLING RD

Name: SOCKET FEMALE UQD06 COUPLING RD
Brand: Danfoss (Drives)
SKU: 11348376

MPN: 11348376 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Danfoss Hansen® quick disconnect couplings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 11348376 be shipped?

11348376 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 11348376 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 11348376 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 11348376, subject to availability and destination.

SOCKET FEMALE UQD06 COUPLING RD - 11348376

Specifications

Air inclusion max cc	0.04
Angle shape	Straight
Body size	3/8
Brand	Danfoss
Burst pressure min bar	21
Burst pressure min psi	300
Connection style	Manual connect
End size 1	-8
End type 1	Male ORB ISO 11926-3
Flow rate GPM	3.00
Flow rate LPM	11.40
Fluid loss cc	0.03500
Hex size 1 IN	0.870
Hex size 1 MM	22.000
Item type	Female half
Latch type	Push to connect
Product material	303 Stainless steel
Seal material	Ethylene propylene (EPDM)
Sub brand	Hansen
Thread size 1	3/4-16 UNF
Valve type	2 way
Working pressure max psi	100
Working pressure max BAR	7
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
