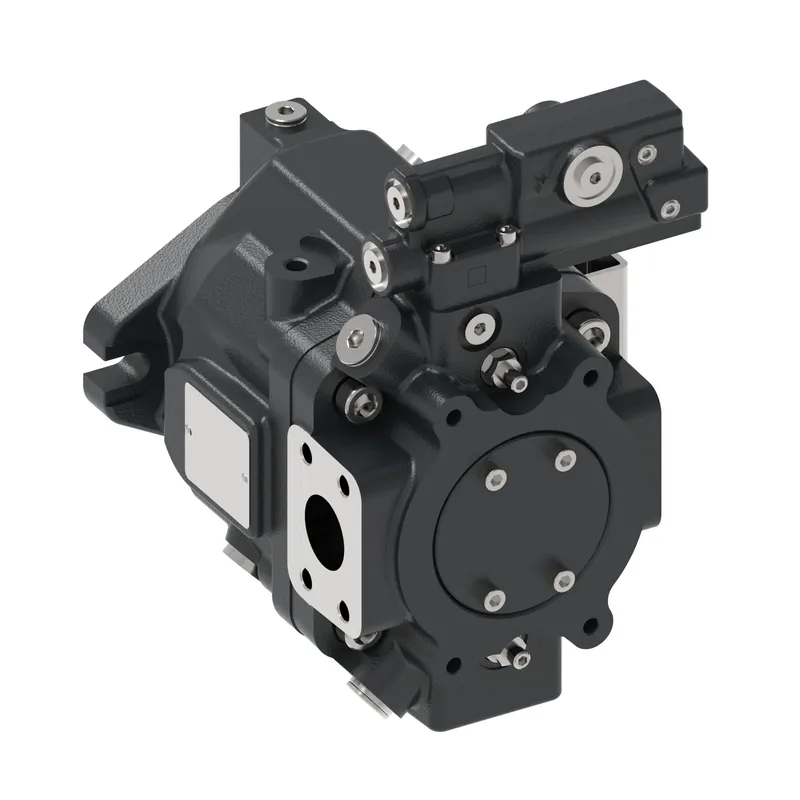

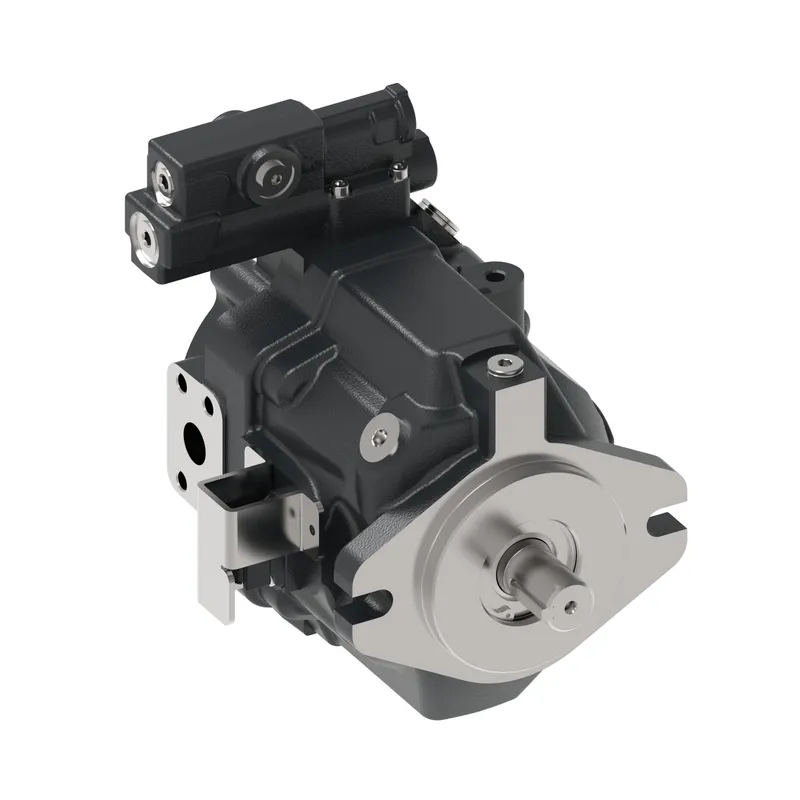

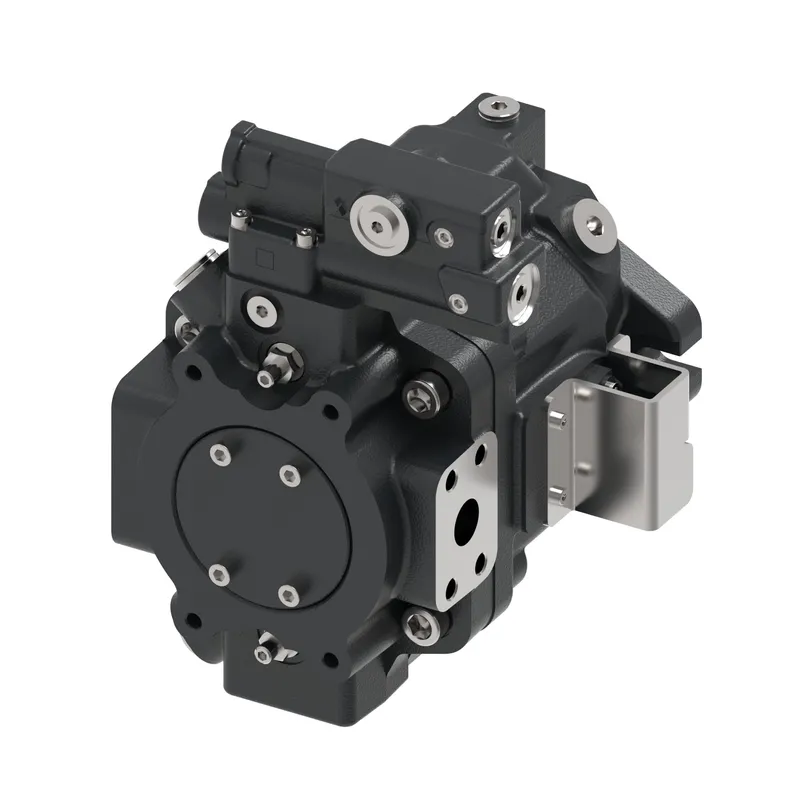

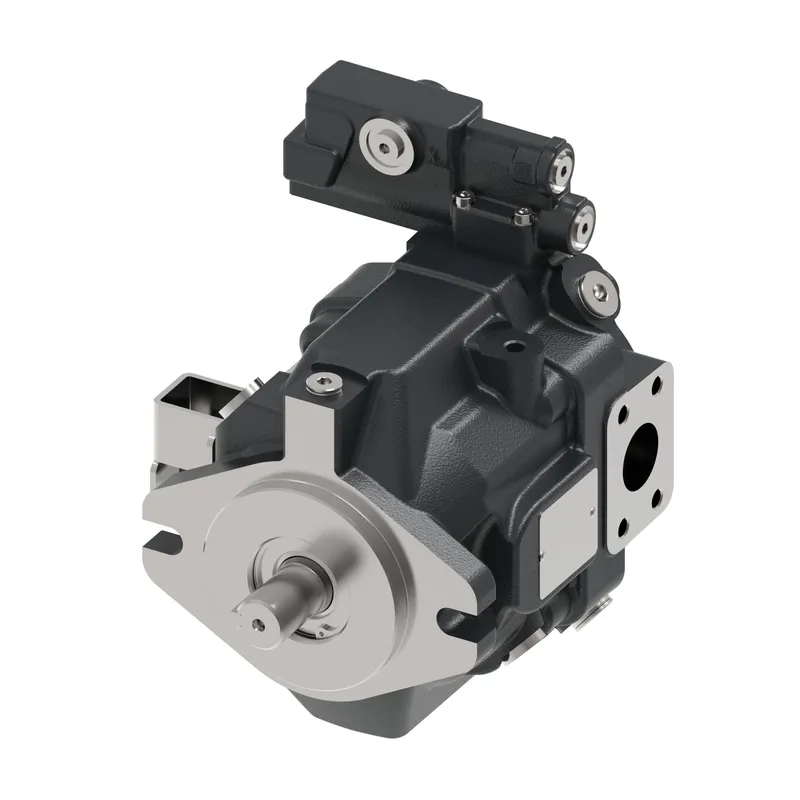

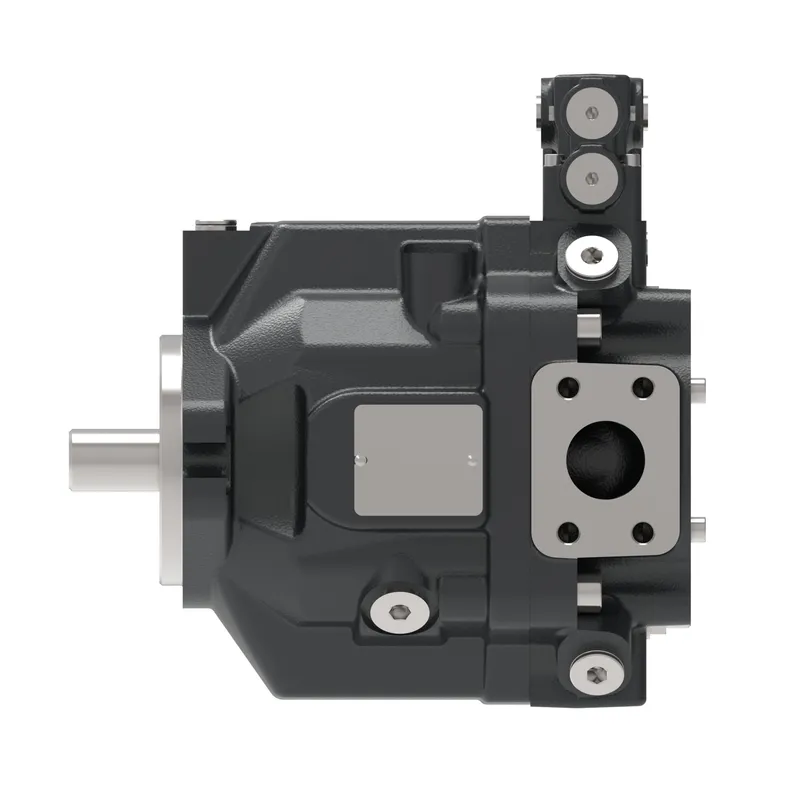

What is the Danfoss 11340532?

Danfoss PVMX028R16M4A0B000AA-00000000, manufacturer part number 11340532. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

CODE TITLEVariable displacement open circuit piston pumps
Displacement28 cm3/r [1.7 in3/r]
Input rotationClockwise (right-hand)
Input shaftDIN6885 STRAIGHT KEYED 22MM DIAMETER SHAFT (MODEL 28)
Mounting flangeISO 3019/2-100A2HW (2Bolt) (MODEL 28)
Port optionsMain ports - ISO 6162 FLANGE PORTS) (DRAIN PORT – ISO 6149-1, LOAD SENSE PORT – ISO 6149-1)
ControlPressure compensator
Pressure comp setting100-280bar range 250±4 bar [1015±58 lbf/in2]- Default setting
Flow comp settingNone
Power control settingNone
Auxiliary mountingNone (non-through drive)
PaintBlack [Default]
Design codeDESIGN VERSION A
Differentiator-
Max displacement settingNo max displacement setting (default)
Min displacement settingNo min displacement setting (default zero swash)
Pump special featuresNo pump special feature
Control special featuresNone
Pump certificationNo certification
Customer identificationNone
Proposition 65Cancer and Reproductive Harm
