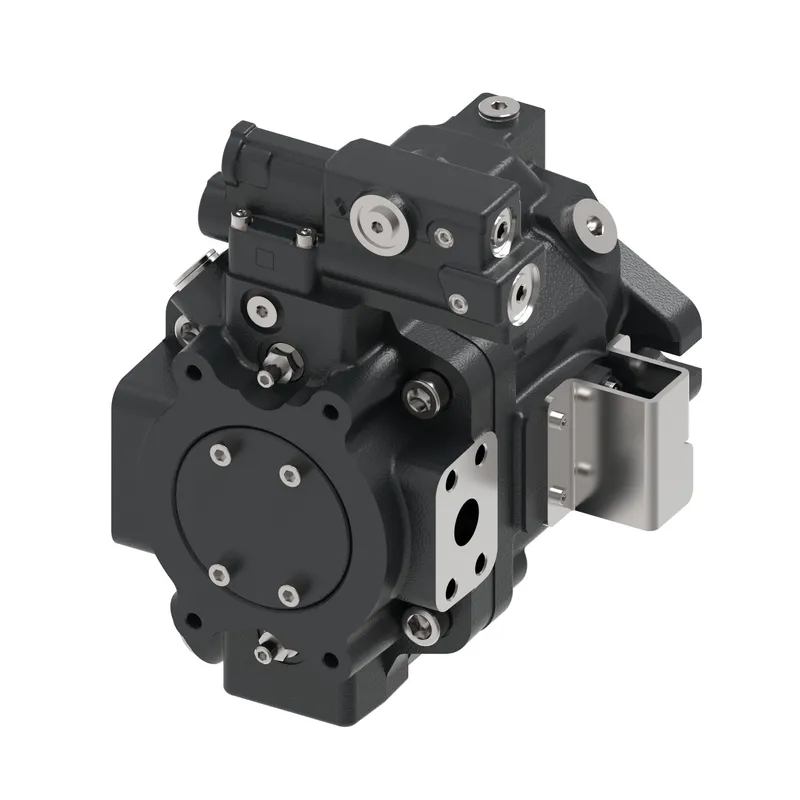

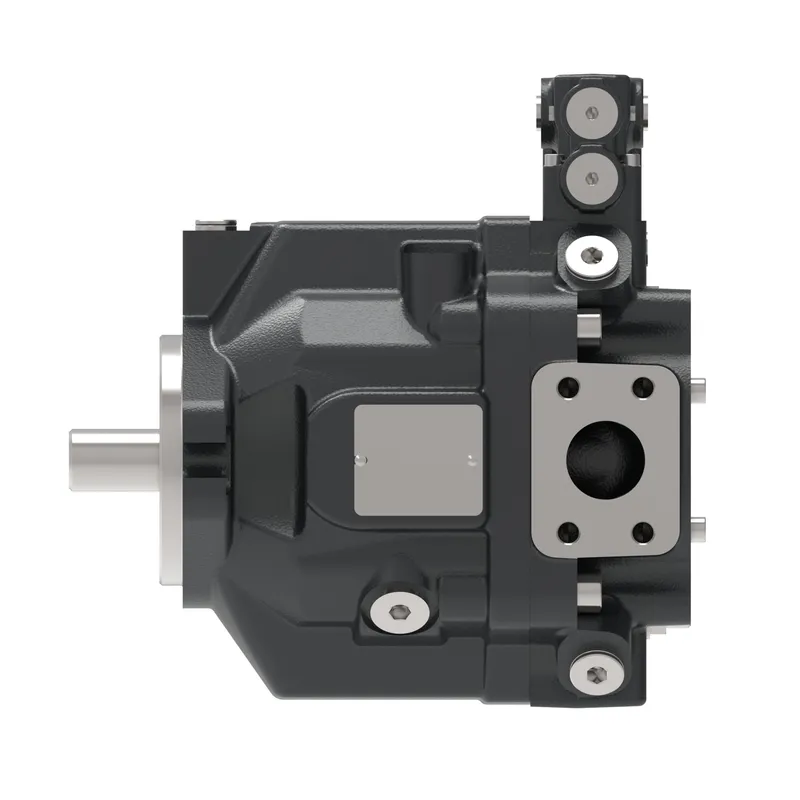

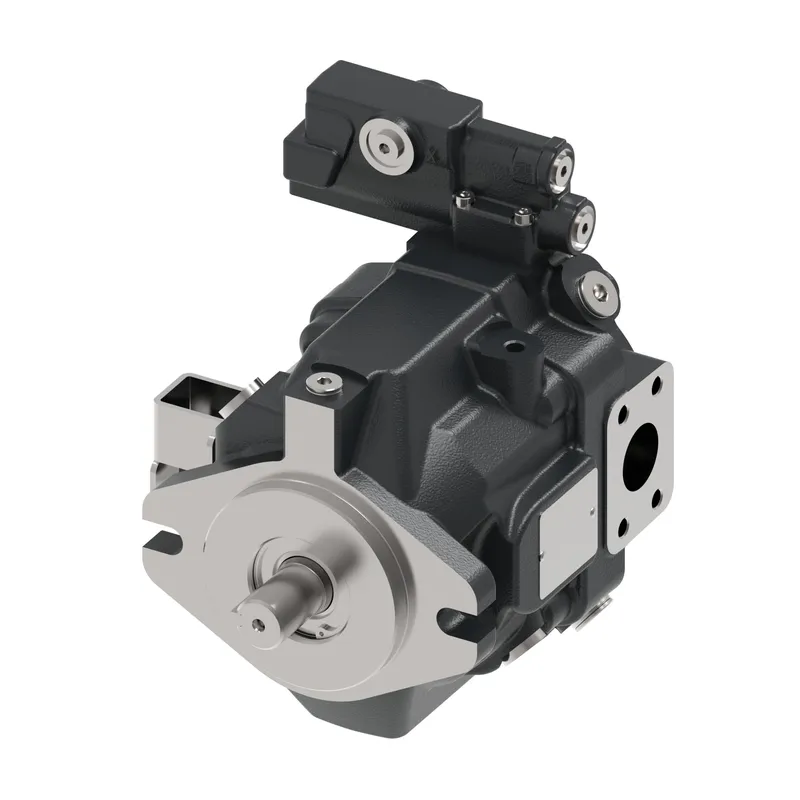

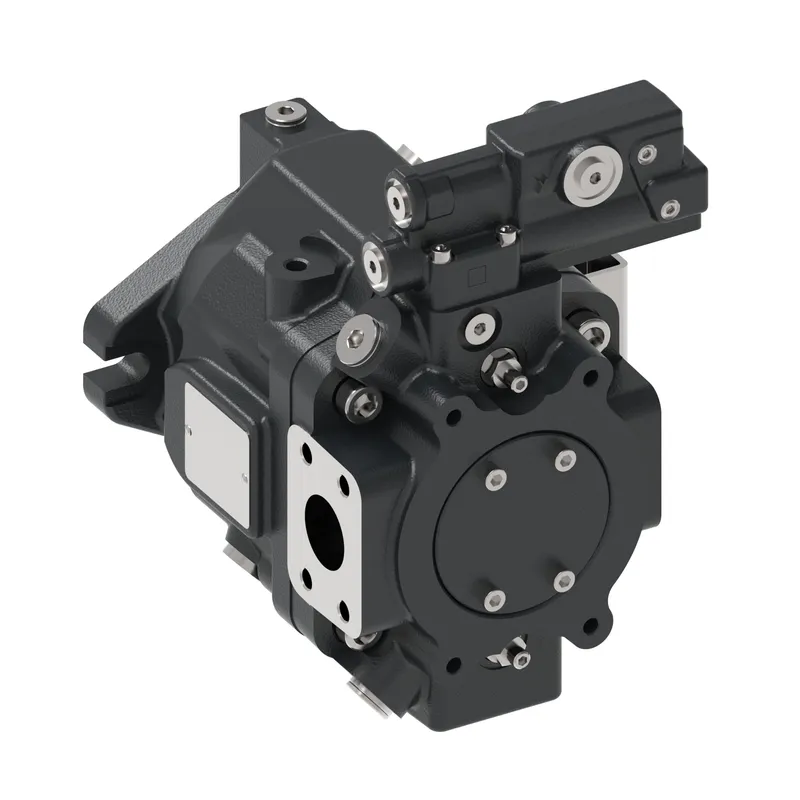

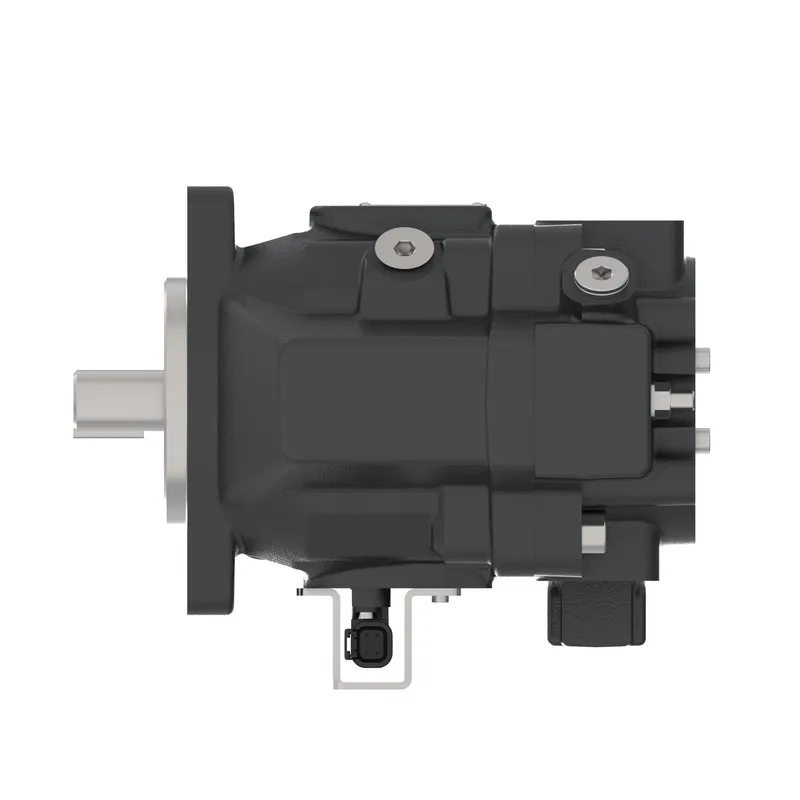

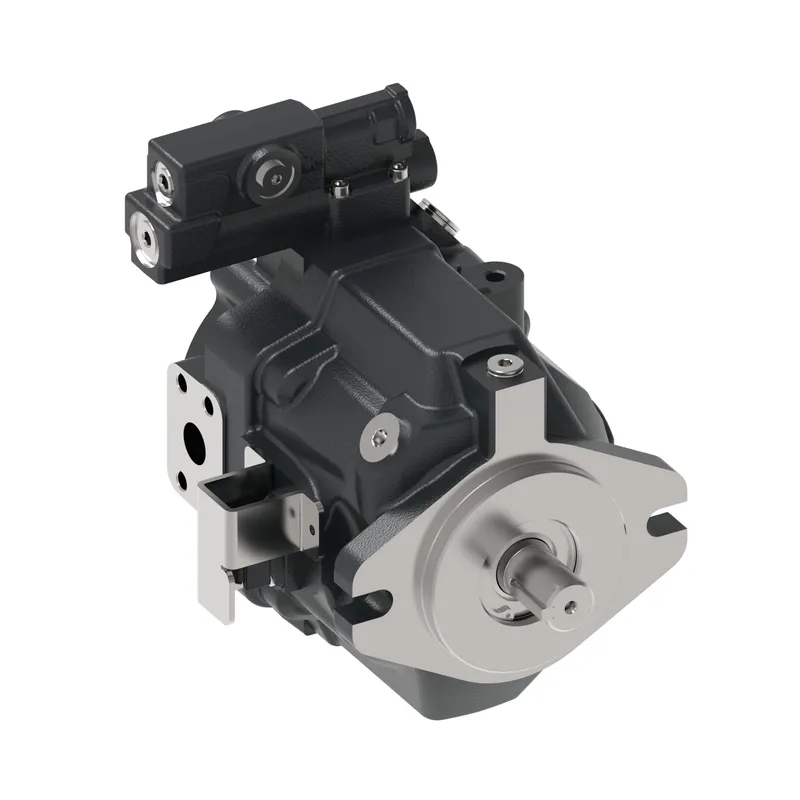

Danfoss 11340254

PVMX028R15M4A0D000AA-00000000

MPN: 11340254
Category: Medium-duty open-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11340254?

Danfoss PVMX028R15M4A0D000AA-00000000, manufacturer part number 11340254. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

CODE TITLE	Variable displacement open circuit piston pumps
Displacement	28 cm3/r [1.7 in3/r]
Input rotation	Clockwise (right-hand)
Input shaft	DIN6885 STRAIGHT KEYED 25MM DIAMETER SHAFT (MODEL 28)
Mounting flange	ISO 3019/2-100A2HW (2Bolt) (MODEL 28)
Port options	Main ports - ISO 6162 FLANGE PORTS) (DRAIN PORT – ISO 6149-1, LOAD SENSE PORT – ISO 6149-1)
Control	Pressure compensator
Pressure comp setting	310-350bar range 350±4 bar [1015±58 lbf/in2]- Default setting
Flow comp setting	None
Power control setting	None
Auxiliary mounting	None (non-through drive)
Paint	Black [Default]
Design code	DESIGN VERSION A
Differentiator	-
Max displacement setting	No max displacement setting (default)
Min displacement setting	No min displacement setting (default zero swash)
Pump special features	No pump special feature
Control special features	None
Pump certification	No certification
Customer identification	None
Proposition 65	Cancer and Reproductive Harm
