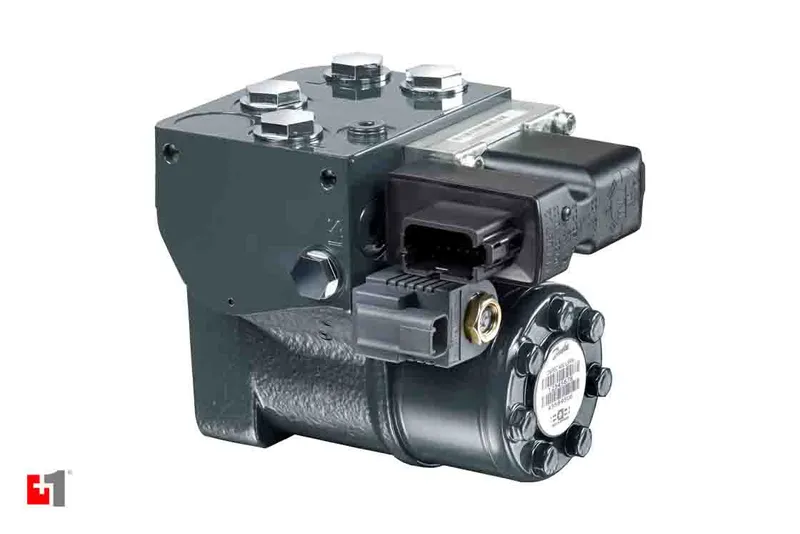

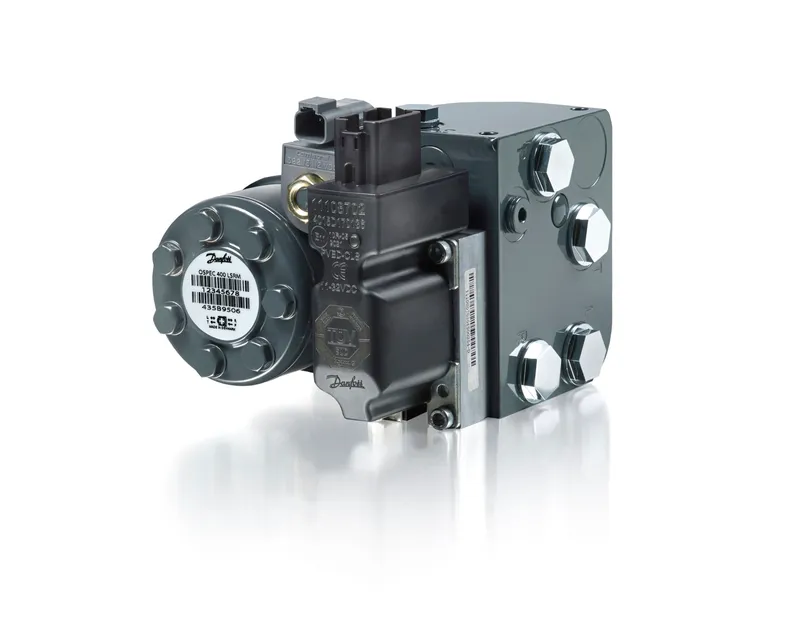

OSPEC 315 LS STEERING UNIT
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Electrohydraulic steering valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 11322318 be shipped?
11322318 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 11322318 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 11322318 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 11322318, subject to availability and destination.
Danfoss OSPEC 315 LS STEERING UNIT, manufacturer part number 11322318. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Additional information | No additional info |
| Anti-cavitation valves | With anti-cavitation valves |
| AUX port | Not available |
| Check valve in P and LS | Check valve in P and LS |
| Circuit type | Load sense non reaction |
| Cut off coil connector | Deutsch |
| Cut off coil voltage | 12 VDC |
| Dynamic orifice | 0.9 mm dyn. orifice |
| EF port | Plastic plug |
| Electrohydraulic flow, nominal | 30 L/min |
| Emergency steering displ. | Single displacement |
| Excess flow | Excess flow available |
| Firmware package | Not applicable |
| Firmware revision | 2.02 |
| Firmware type | Standard |
| First gear size | 315 |
| Gear set type | Single |
| Gearset option | Regular |
| Housing type | SEHS |
| Housing variant | 1604 |
| Integrated priority valve | 90 L/min |
| Integrated priority valve type | Dynamic |
| Integrated PV spring | 7 bar spring |
| Label | Danfoss Standard Label |
| LS front port | Plastic plug |
| LS orifice | 1.2 mm LS orifice |
| LS side port | Steel plug |
| Number of edges | 2 edge |
| P Spool | A900911 |
| P-LS orifice | NN |
| Paint | Painted black |
| Ports sizing | M22, M18, M12 |
| Ports standard | ISO 6149-1 |
| PP orifice | 1.1 mm PP orifice |
| Product Label | Danfoss Standard Label |
| Product type | OSPE |
| Proposition 65 | Cancer and Reproductive Harm |
| PVE actuator | PVED-CLS s5 Deutsch (SIL2) |
| Relief valve setting | 200-210 Bar |
| Relief valve Y/N | Present |
| Second gear size | NNN |
| Shock valves setting | 250-270 Bar |
| Shock valves Y/N | Present |
| Software ID | SWID005455 |
| Special feature | None |
| Spool/sleeve set | High dynamic (240-500 ccm) |
| Spool/sleeve set centering spr | Regular (11004855) |
| Spool/sleeve set type | C type |
| Steering column interface type | 4x M10x1.5 bolt holes for colu |
| Total steering displacement | 315 ccm |
