Danfoss 11320898

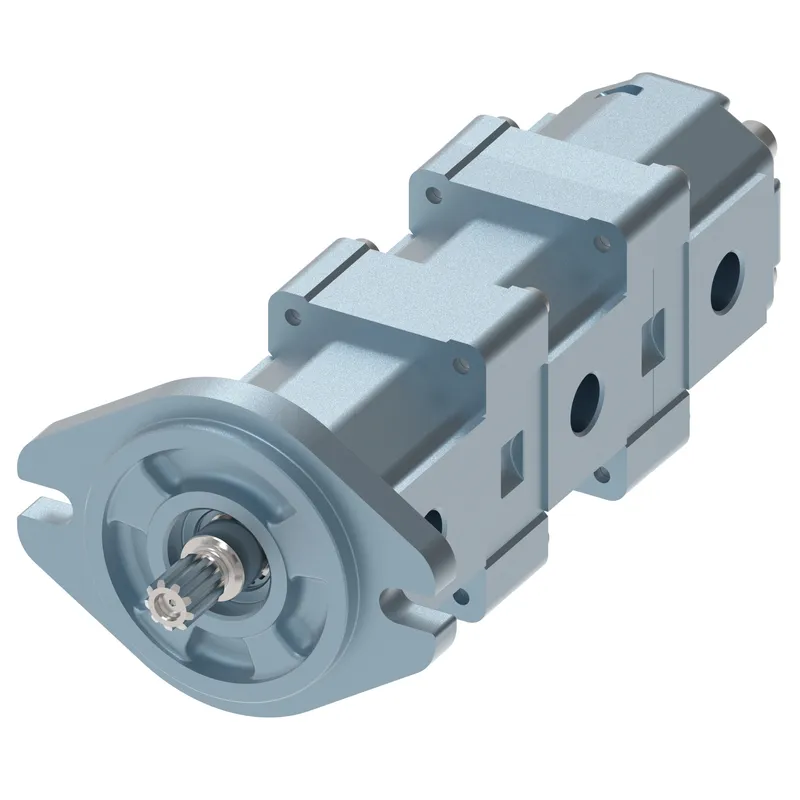

TRIPLE GEAR PUMP GR1 FIXED DISPL

MPN: 11320898
Category: GearMe modular three stage

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11320898?

Danfoss TRIPLE GEAR PUMP GR1 FIXED DISPL, manufacturer part number 11320898. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A_FAMILY GR1+1+1	SNW1NN+SNO1NN+SNQ1NN
B_1ST DISPL GR1+1+1	Displacement 4,3cc
C_2ND DISPL GR1+1+1	Displacement 1,2cc
D_3RD DISPL GR1+1+1	Displacement 1,2cc
E_ROT GR1+1+1	Right rotation
F_PROJ VER GR1+1+1	Standard (without intermediate flange)
G_FLANGE GR1+1+1	Pilot D25,4+4 holes for bolts
H_DRIVE GR1+1+1	Taper 1:8-M7-Key2,41+Rear shaft Spline CO41
I_COVER GR1+1+1	Std Cover for pump
J_IN BODY 1ST GR1+1+1	3/8 GAS
K_OUT BODY 1ST GR1+1+1	3/8 GAS
L_PORTS POS 1ST GR1+1+1	Std from catalogue
M_IN BODY 2ND GR1+1+1	3/8 GAS
N_OUT BODY 2ND GR1+1+1	3/8 GAS
O_PORTS POS 2ND GR1+1+1	Std from catalogue
O-Ring, Inside Diameter	Slash
OC DELIMITER (-)	-
P_IN BODY 3RD GR1+1+1	3/8 GAS
Proposition 65	Cancer and Reproductive Harm
Q_OUT BODY 3RD GR1+1+1	3/8 GAS
R_PORTS POS 3RD GR1+1+1	Std from catalogue
S_SEALS GR1+1+1	Std from catalogue
Slash separator	Slash
T_SCREWS GR1+1+1	Std from catalogue
U_SET VALVE GR1+1+1	without setting
V_TYPE MARK GR1+1+1	Std Sauer Danfoss Marking
W_MARK POS GR1+1+1	Std mark position
