Home / Danfoss (Drives) / Danfoss orbital motor quick selector / Danfoss 113-1154-006

Danfoss (Drives)

Danfoss 113-1154-006

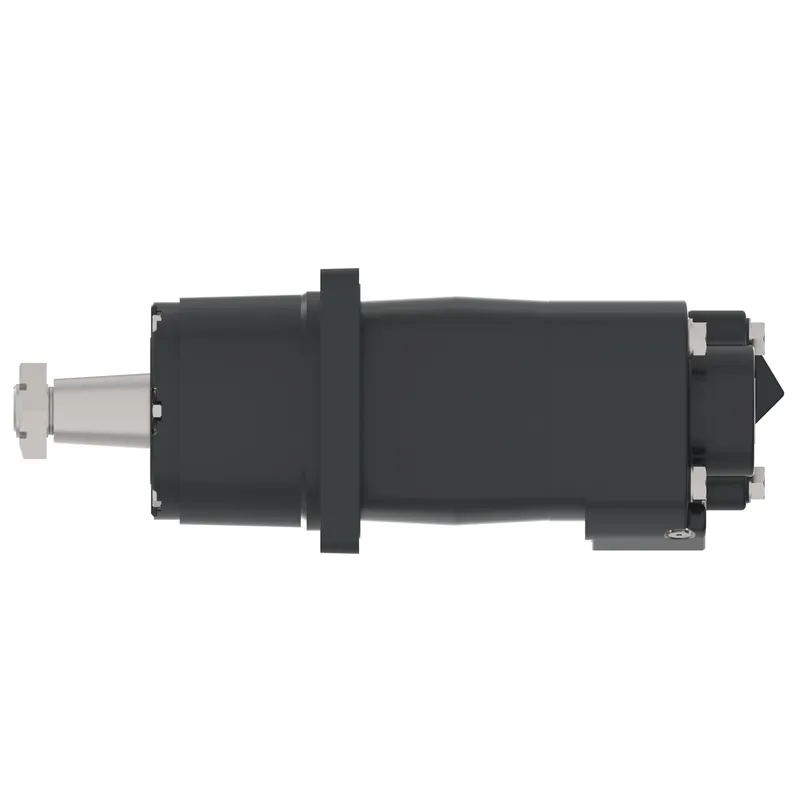

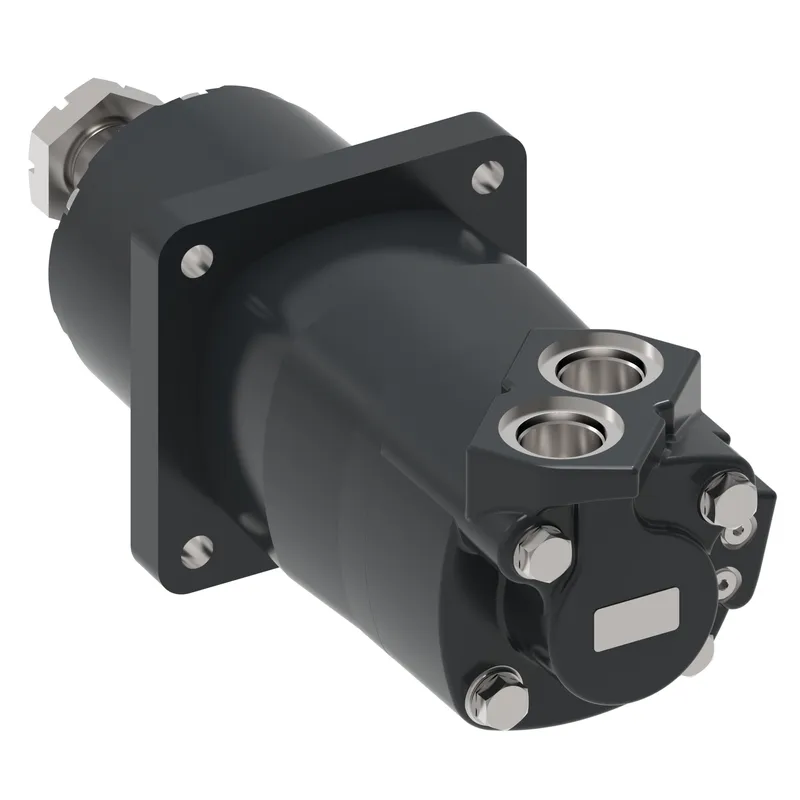

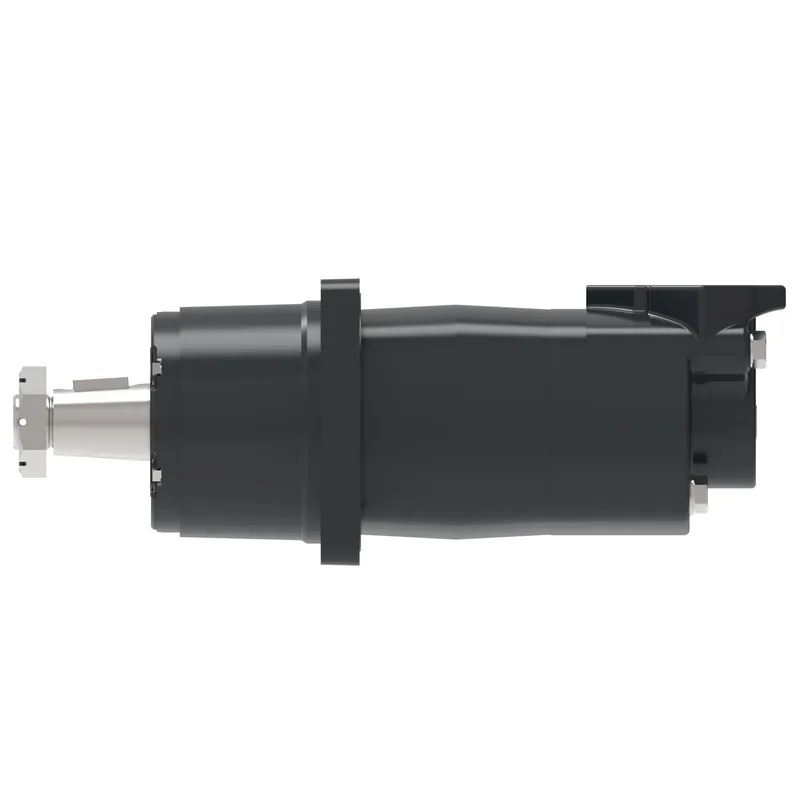

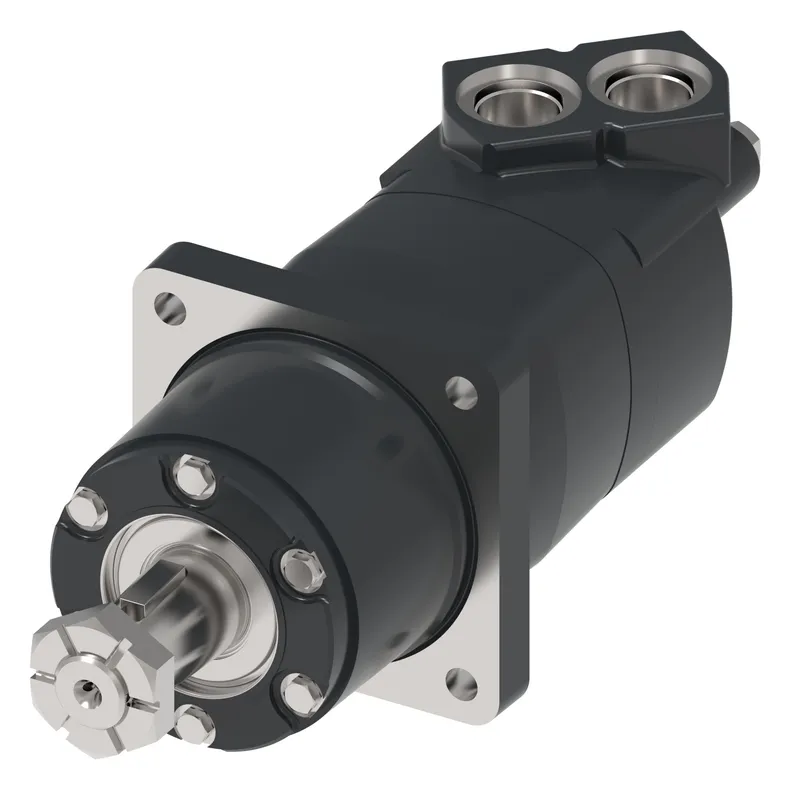

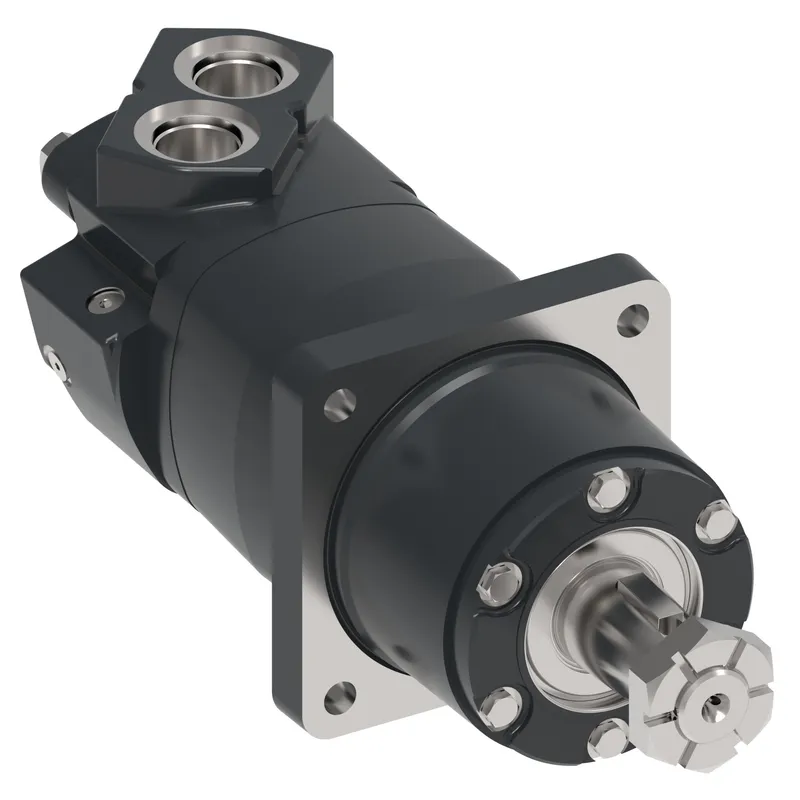

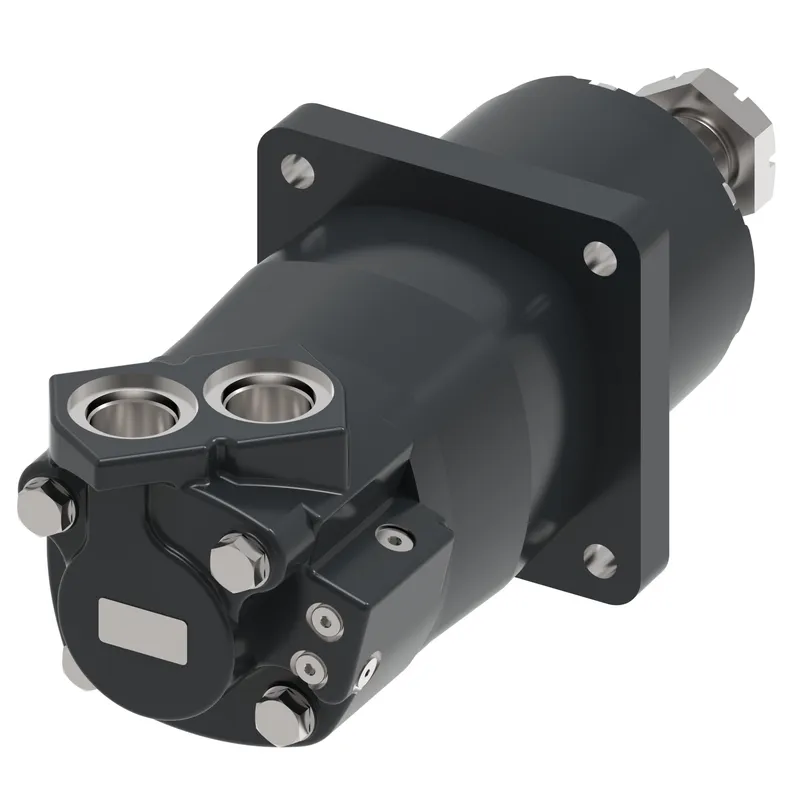

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AC06AA02000000000AA0000F, M06300AC06AA02000000000AA0000F

MPN: 113-1154-006
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 113-1154-006?

Danfoss MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AC06AA02000000000AA0000F, M06300AC06AA02000000000AA0000F, manufacturer part number 113-1154-006. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	M06300AC06AA02000000000AA0000F
Motor Series	6000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Mounting type	4 w p140 b184 h14
Motor size	490
Geometric displacement [cm3/r [in3/r]]	491.4 [29.99]
Motor type	Wheel
Motor function	Standard
Mounting flange type	4 Bolt - Wheel
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	139.7 x 7.9, 184.2, 14.4 [5.50 x 0.31, 7.25, 0.57]
Shaft type	Splined
Shaft dimension	Dia. 1.73 inch, 13T, 3/8 - 16 UNC-2B thread in shaft end
Shaft Key	n/a
Main port thread type	UN / UNF
Main port style	Sideport - staggered
Main port dimension	1 5/16 - 12 UN-2B SAE O-Ring port
Drain Port Dimension	7/16 - 20 UNF-2B SAE O-Ring port
Brake Release Port Dimension	n/a
Painted	No
Paint information	n/a
Special Features Assembly	Direction of rotation
Dust seal	Standard
Shaft Seal	NBR - Standard
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Orbital gearwheel set	Standard
Check valve function	Yes
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Danfoss name tag
Design code	06
Brand	Danfoss
Low pressure relief	None
Seal options	Standard
Series	6000 series
Sub brand	Char-Lynn

113-1154-006: frequently asked questions

When can 113-1154-006 be shipped?

113-1154-006 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 113-1154-006 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 113-1154-006 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 113-1154-006, subject to availability and destination.
