Danfoss 112E

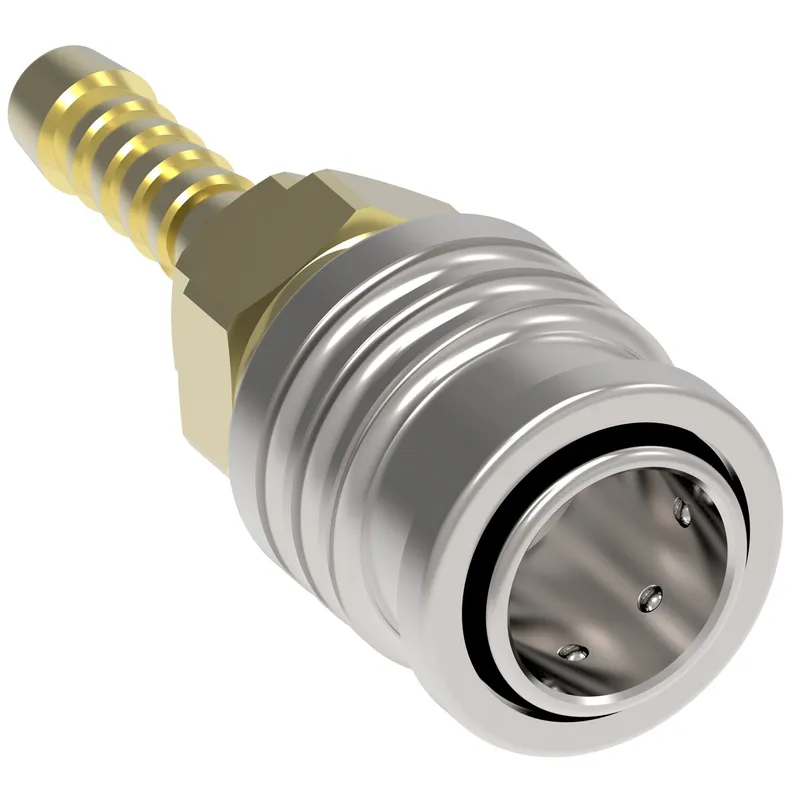

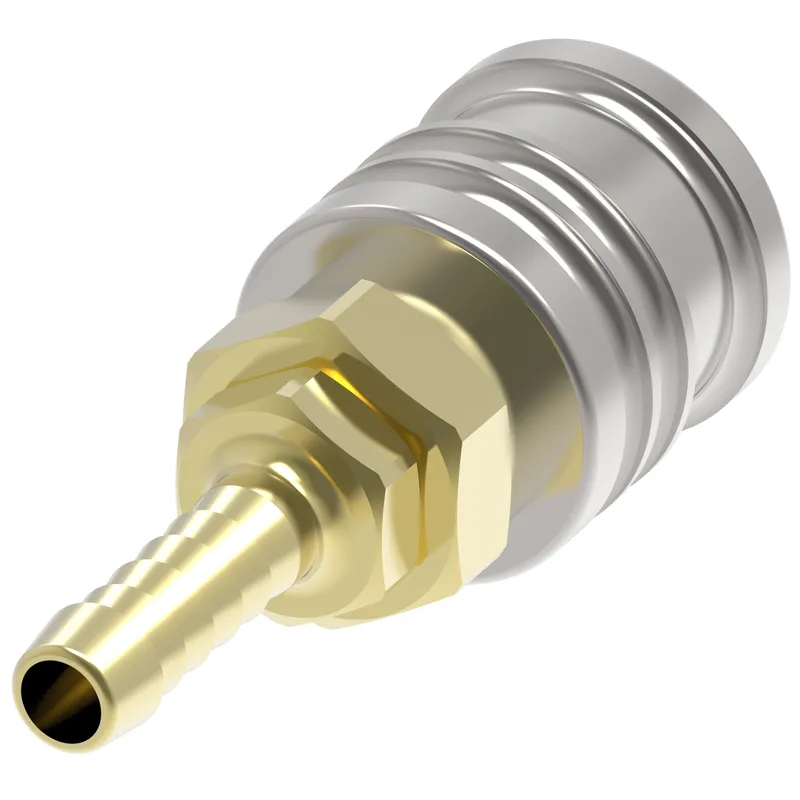

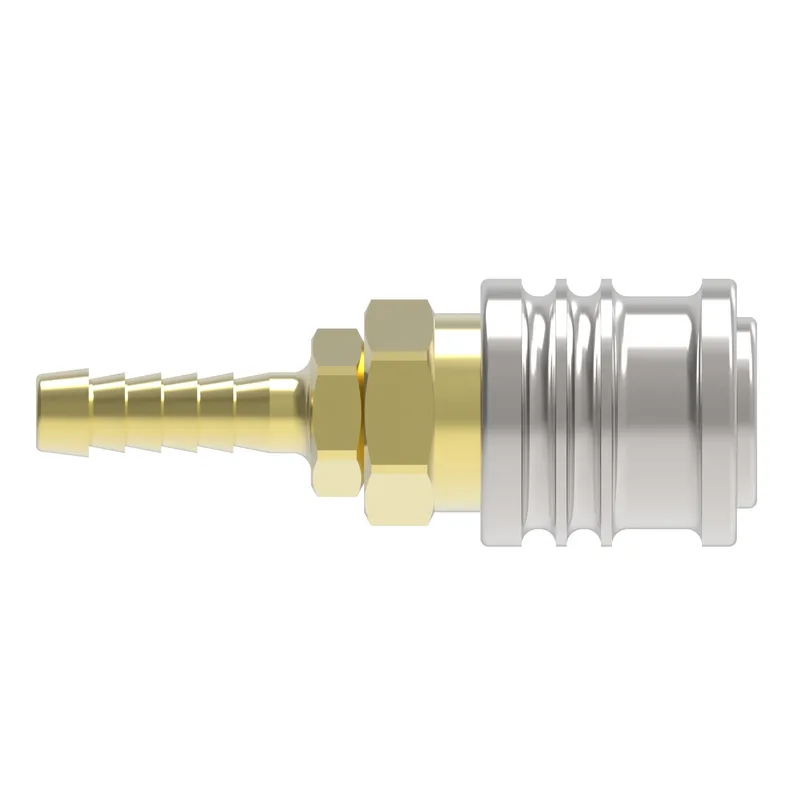

Cplng, 100 SERIES FEMALE, BRASS

MPN: 112E
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss 112E?

Danfoss Cplng, 100 SERIES FEMALE, BRASS, manufacturer part number 112E. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146196705
Angle shape	Straight
Body size	1/4
Burst pressure min bar	193
Burst pressure min psi	2800
Connection style	Manual connect
End type 1	Female Push to Connect
End type 2	Line/hose/tube
Finish plating	Nickel
Flow rate GPM	149.52
Flow rate LPM	566.00
Fluid compatibility	Compressed air and other gases
Item type	Female half
Latch type	Push/pull
Product material	Brass
Safety locking mechanism	Sleeve lock
Seal material	Nitrile (NBR)
Valve type	2 way
Working pressure max psi	350
Working pressure max BAR	24
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40

112E: frequently asked questions

When can 112E be shipped?

112E is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 112E in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 112E and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 112E, subject to availability and destination.
