Danfoss 11294706

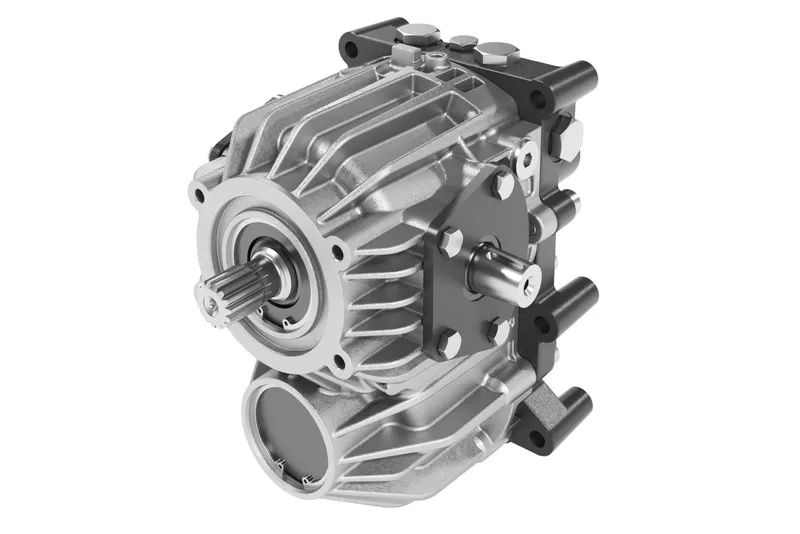

TRANSMISSION-U STYLE CCW 3232

MPN: 11294706
Category: Transmissions

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11294706?

Danfoss TRANSMISSION-U STYLE CCW 3232, manufacturer part number 11294706. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A: Displacement & block type	032 cc/rev displacement at maximum angle, U-shaft, housing mounting
B: Rotation	Counter-clockwise rotation
C: Valve plate pump	CP6.5 0.8 deg index valve plate
D: Control arm position	Right side, from input shaft view
E: Control arm configuration	17mm Square
F: Pump shaft configuration (input shaft/PTO shaft)	JB: JIS 18T SHORT, NONE W/CP
H: Output shaft configuration	F: JIS 18T 25MM OD W/ GRV
J: Centersection configuration	J:DR NONE, CHG NONE, SUCTION F
K: Charge pump displacement	6: 6cc/rev
L: CHARGE RELIEF SETTING	08: 8bar
M: BYPASS VALVE	None
N: Check & relief valve (left-hand side viewing from housing)	High Pressure Relief Valve 345 bar [5000 psi]
P: Check & relief valve (right-hand side viewing from housing)	High Pressure Relief Valve 345 bar [5000 psi]
Proposition 65	Cancer and Reproductive Harm
Series	LDU Product
Y: Special hardware feature	SNN: HOUSING W/ SMALL FLANGE
Z: Paint and nametag	Black Paint, Danfoss Nametag, Standard Layout
