Danfoss 11288522

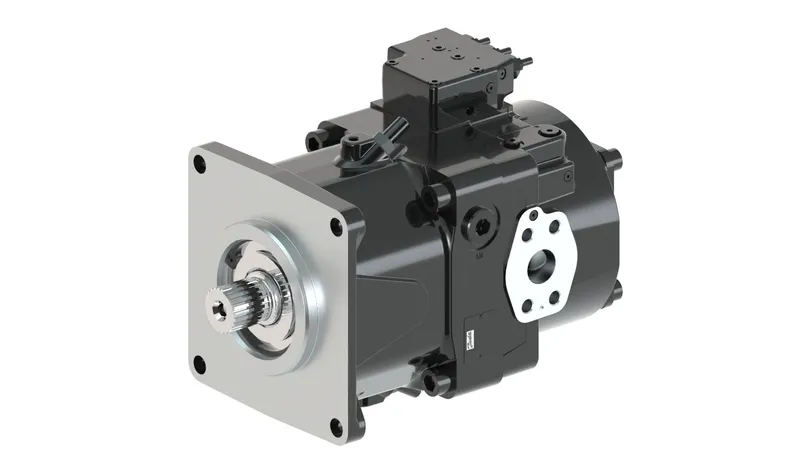

PUMP-VAR DISPL, D1P193

MPN: 11288522
Category: D1P open-circuit high-power axial piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11288522?

Danfoss PUMP-VAR DISPL, D1P193, manufacturer part number 11288522. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

D1P Product	D1P variable axial piston pump
Displacement	193cc/rev max/variable displacement
Rotation	Right hand - clockwise
Product version	Product version A
Control type	Electric power control + load sending control, 24V Deutsch 2 pin connector
Input shaft	Spline shaft DIN5480, W50 x 2 x 30 x 24 x 9g for size 130 &145 &193 W60 x 2 x 30 x 28 x 9g for size 260 W30 x 2 x 30 x 14 x 9g forsize 065
Front mounting flange	SAE J744 165-4 (E)
Endcap	Radial side flange ports inlet: SAE J518, 3 1/2 inch, M16x2 outlet: SAE J518, 1 1/2 inch, M16x2 with impeller
Auxiliary flange	SAE J744 82-2 (A), spline coupling: 5/8in 9 tooth 16/32 diametrical pitch
Power control setting	125 kW power control setting @ 1500 rpm
Pressure compensator setting	No pressure compensated control
Load sense setting	25 bar load sensing control setting
Hydraulic displacement control start pressure setting	No hydraulic displacement control
Maximum displacement setting	100% of maximum displacement
Minimum displacement setting	5% of displacement
Special hardware	No special hardware
Special feature	No paint, Danfoss tag, format A, without control oil filter
Proposition 65	Cancer and Reproductive Harm
