Danfoss 11275862

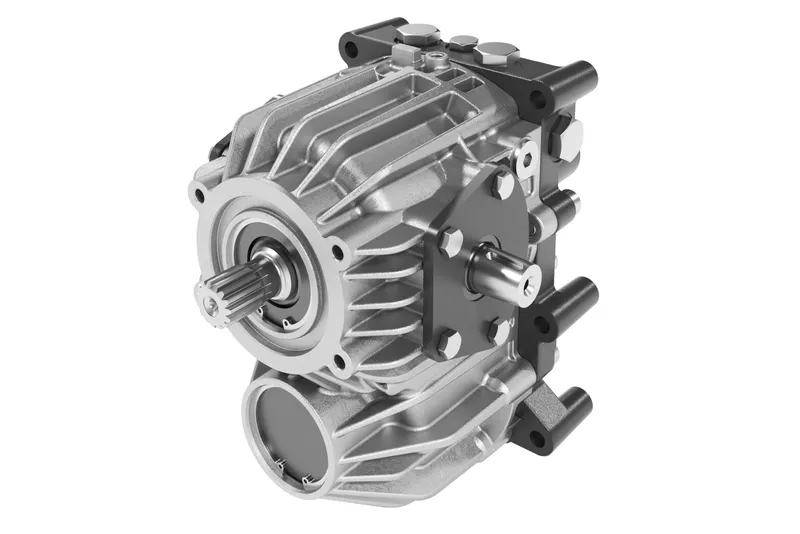

U-STYLE 3232

MPN: 11275862
Category: Transmissions

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11275862?

Danfoss U-STYLE 3232, manufacturer part number 11275862. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A: Displacement & block type	032 cc/rev displacement at maximum angle, U-shaft, housing mounting
B: Rotation	Counter-clockwise rotation
C: Valve plate pump	CP6.5 0.8 deg index valve plate
D: Control arm position	Left side, from input shaft view
E: Control arm configuration	D: Detent
F: Pump shaft configuration (input shaft/PTO shaft)	JN: JIS 13T, NONE W/CP
H: Output shaft configuration	JIS 20x18x1.0
J: Centersection configuration	J:DR NONE, CHG NONE, SUCTION F
K: Charge pump displacement	6: 6cc/rev
L: CHARGE RELIEF SETTING	05: 5bar
M: BYPASS VALVE	None
N: Check & relief valve (left-hand side viewing from housing)	High Pressure Relief Valve 345 bar [5000 psi]
P: Check & relief valve (right-hand side viewing from housing)	34B: 345BAR W/ 0.7 ORIFICE X2
Proposition 65	Cancer and Reproductive Harm
Series	LDU Product
Size/Dimensions	0,01
Y: Special hardware feature	Standard
Z: Paint and nametag	Black Paint, Danfoss Nametag, Standard Layout

11275862: frequently asked questions

When can 11275862 be shipped?

11275862 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 11275862 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 11275862 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 11275862, subject to availability and destination.
