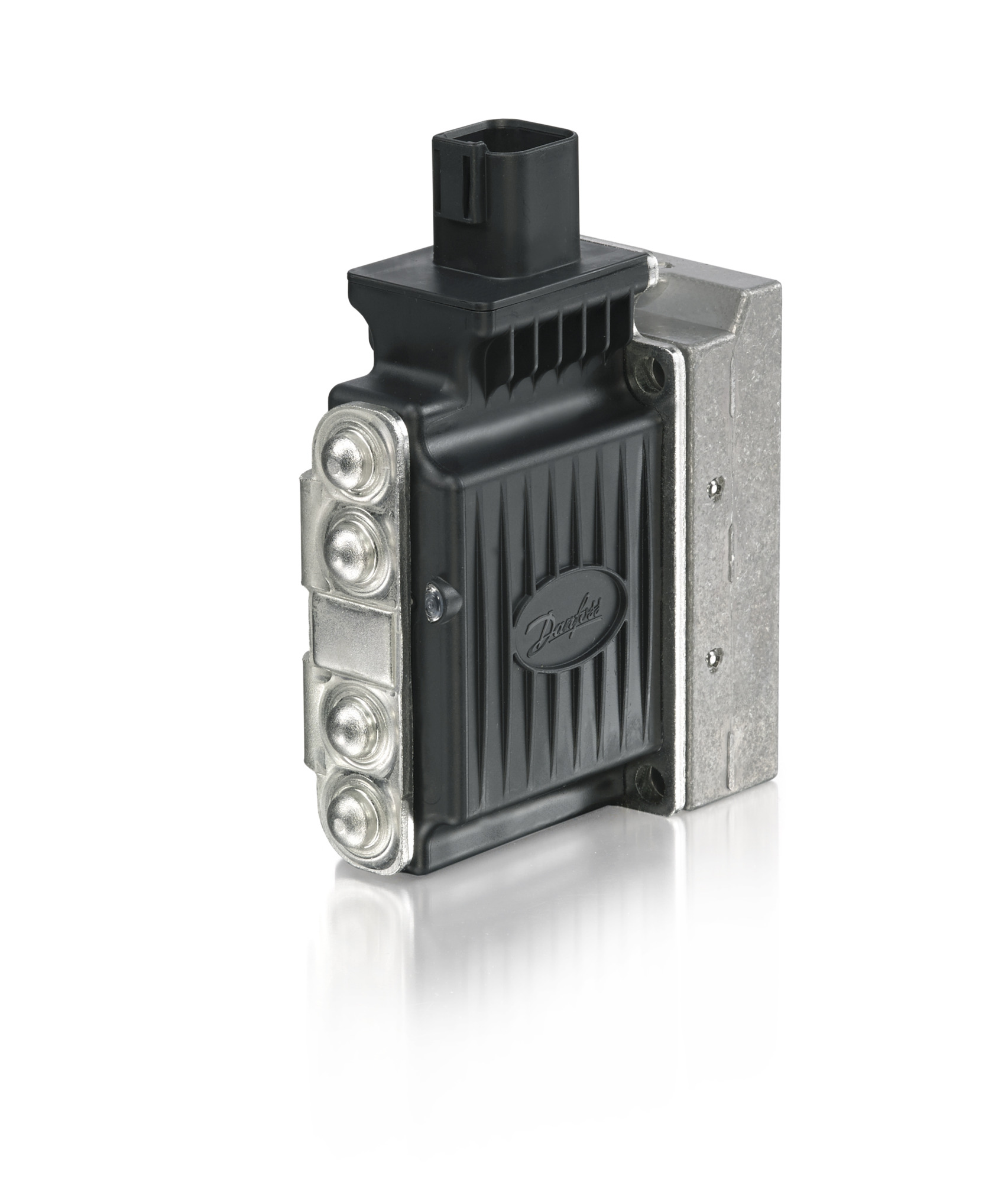

Danfoss 11255158

PVES32-ACTUATOR-SV-S7-1x4MET-S-PAS

MPN: 11255158
Category: Compensated directional control valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11255158?

Danfoss PVES32-ACTUATOR-SV-S7-1x4MET-S-PAS, manufacturer part number 11255158. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port Placement	N/A
B Port Placement	N/A
CAN Protocol	N/A
Certification	ISO13849 Compliant
Coil Power	8 W
Connector Direction	90 (Up)
Connector Type	1x4 Metripack
Control Signal	Ratiometric
De-Stroke Reaction A	120 ms
De-Stroke Reaction B	120 ms
Digital Type	N/A
Disable Function	N/A
Ex Application	N/A
Extra Function	Steering Valve - SV
Fault Reaction & Recovery	Indication Only
Float Direction	N/A
Hysteresis	0.5%
IP Rating	IP66
Length	89
Manual Override	N/A
Marking	CE EAC
Max Oil Consump. Steady State	0,1 l/min
Max Oil Consumption	0,3 l/min
Maximum System Pressure Peaks	60
Minimum Float Position	N/A
Nominel A Stroke	7
Nominel B Stroke	7
On-Stroke Response A	120 ms
On-Stroke Response B	120 ms
Output Signal	N/A
Outward Side Interface	N/A
Pilot Pressure	13.5 (PVE)
Pilot Pressure Full Stroke	N/A
Pilot Pressure Neutral	N/A
Port Connection Type	N/A
Port Size	N/A
Primer	N/A
Product Category	Cust. Specific
Product type	N/A
Proposition 65	Cancer and Reproductive Harm
PVDI connector coding	N/A
Resolution	1000
Valve Side Interface	PVE32 O-Ring
Voltage	11-32
