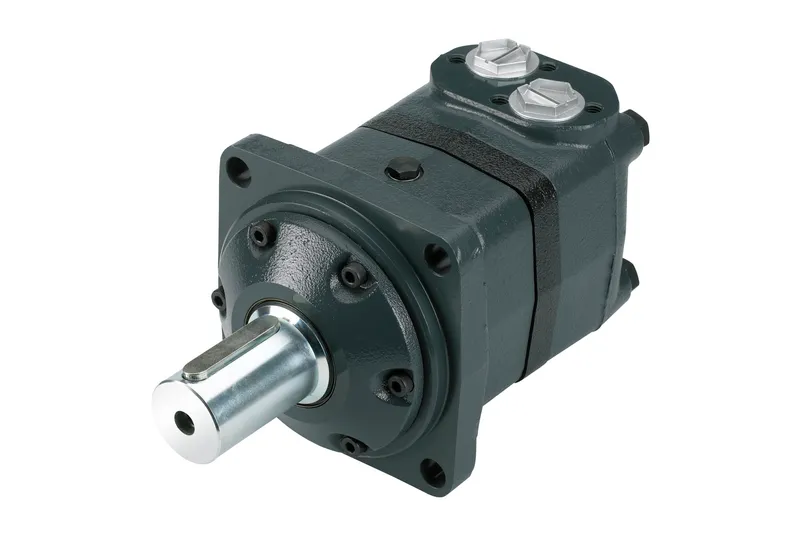

Danfoss 11231703

MOTOR-ORBITAL,OMV SERIES 500 [30.5], OMV-0500-A-EB-G34-AE-1E-D20-A-A-1B-0-N-NN-AAE21-NN-NN-NN-SP-NNN

MPN: 11231703
Category: Orbitron motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11231703?

Danfoss MOTOR-ORBITAL,OMV SERIES 500 [30.5], OMV-0500-A-EB-G34-AE-1E-D20-A-A-1B-0-N-NN-AAE21-NN-NN-NN-SP-NNN, manufacturer part number 11231703. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brake Release Port Dimension	n/a
Check valve function	No
Design code	2
Drain Port Dimension	G 1/4
Dust seal	Standard
Front bearing type	Tapered roller bearing
Geometric displacement [cm3/r [in3/r]]	499.6 [30.49]
Hydraulic valve function	None
Main port dimension	G 1, 4 x M12 block mounting threads
Main port style	Sideport - staggered
Main port thread type	BSP
Model Code	OMV-0500-A-EB-G34-AE-1E-D20-A-A-1B-0-N-NN-AAE21-NN-NN-NN-SP-NNN
Motor function	Heavy-Duty version, Reinforced parts
Motor Series	OMV Series
Motor size	500
Motor type	Standard
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	160.0 x 11.0, 200.0, 18.0 [6.30 x 0.43, 7.87, 0.71]
Mounting flange type	4 Bolt - Square
Name Tag	Danfoss name tag
Orbital gearwheel set	Standard
Orbital gearwheel set type	Geroler
Packaging	Single pack
Paint information	Painted, Black, Medium gloss
Painted	Yes
Proposition 65	Cancer and Reproductive Harm
Rear bearing type	Tapered roller bearing
Seal Kit	151B0162
Sensor	None
Shaft dimension	Dia. 2 1/8 inch, 16T, M12 x 1.75-6H thread in shaft end
Shaft Key	n/a
Shaft Seal	NBR - Standard
Shaft type	Splined
Special Features Assembly	Standard
Valve system	Disc valve with valve drive
