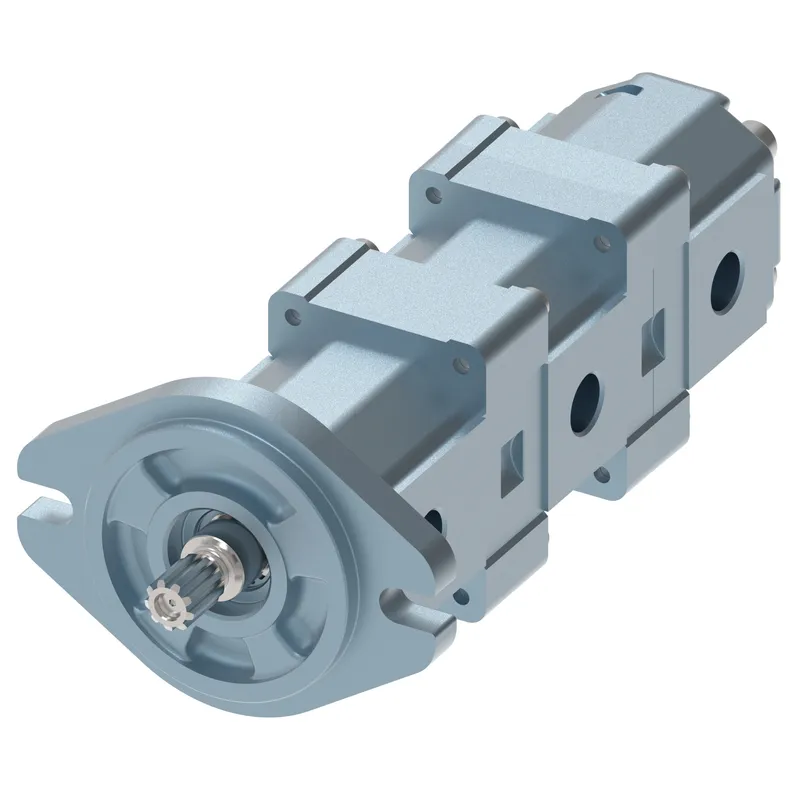

Danfoss 11212588
TRIPLE GEAR PUMP GR1 FIXED DISPL
- MPN
- 11212588
- Category
- GearMe modular three stage
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 11212588?
Danfoss TRIPLE GEAR PUMP GR1 FIXED DISPL, manufacturer part number 11212588. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A_FAMILY GR1+1+1 | SNW1NN+SNO1NN+SNQ1NN |
| B_1ST DISPL GR1+1+1 | Displacement 7,8cc |
| C_2ND DISPL GR1+1+1 | Displacement 7,8cc |
| D_3RD DISPL GR1+1+1 | Displacement 2,6cc |
| E_ROT GR1+1+1 | Right rotation |
| F_PROJ VER GR1+1+1 | Standard (without intermediate flange) |
| G_FLANGE GR1+1+1 | Pilot D25,4+4 holes for bolts |
| H_DRIVE GR1+1+1 | Taper 1:8-M7-Key2,41+Rear shaft Spline CO41 |
| I_COVER GR1+1+1 | Std Cover for pump |
| J_IN BODY 1ST GR1+1+1 | 3/8 GAS |
| K_OUT BODY 1ST GR1+1+1 | 3/8 GAS |
| L_PORTS POS 1ST GR1+1+1 | Std from catalogue |
| M_IN BODY 2ND GR1+1+1 | 3/8 GAS |
| N_OUT BODY 2ND GR1+1+1 | 3/8 GAS |
| O_PORTS POS 2ND GR1+1+1 | Std from catalogue |
| O-Ring, Inside Diameter | Slash |
| OC DELIMITER (-) | - |
| P_IN BODY 3RD GR1+1+1 | 3/8 GAS |
| Proposition 65 | Cancer and Reproductive Harm |
| Q_OUT BODY 3RD GR1+1+1 | 3/8 GAS |
| R_PORTS POS 3RD GR1+1+1 | Std from catalogue |
| S_SEALS GR1+1+1 | Std from catalogue |
| Slash separator | Slash |
| T_SCREWS GR1+1+1 | Std from catalogue |
| U_SET VALVE GR1+1+1 | without setting |
| V_TYPE MARK GR1+1+1 | Std Sauer Danfoss Marking |
| W_MARK POS GR1+1+1 | Std mark position |
11212588: frequently asked questions
When can 11212588 be shipped?
11212588 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 11212588 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 11212588 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 11212588, subject to availability and destination.
