Danfoss 11195457

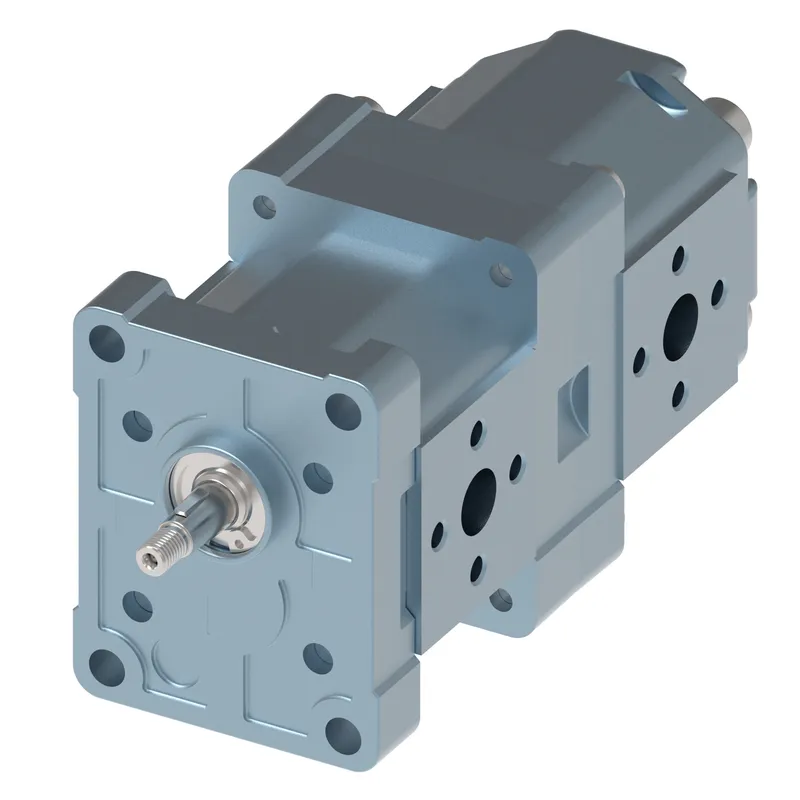

TANDEM GEAR PUMP GR1 FIXED DISPL
- MPN
- 11195457
- Category
- GearMe modular two stage
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 11195457?
Danfoss TANDEM GEAR PUMP GR1 FIXED DISPL, manufacturer part number 11195457. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A_FAMILY GR1+1 | SNW1NN + SNP1NN |
| B_1 STAGE DISPL GR1+1 | Displacement 7,8 cc |
| C_2 STAGE DISPL GR1+1 | Displacement 4,3 cc |
| D_ROTATION GR1+1 | Product with clockwise rotation |
| E_PROJECT VERSION GR1+1 | Standard ( without intermediate flange ) |
| F_FLANGE GR1+1 | Flange with pilot D.25,4 and 4 holes for bolts |
| G GEAR DRIVE GR1+1 | Taper 1:8 - M7 - Key = 2,41 with Rear shaft Spline |
| H_COVER GR1+1 | Standard Cover for pump |
| I_IN BODY 1 STAGE GR1+1 | 3/8 GAS |
| J_OUT 1 STAGE GR1+1 | 3/8 GAS |
| K_PORTS POS 1 STAGE GR1+1 | Standard from catalogue |
| L_IN BODY 2 STAGE GR1+1 | 3/8 GAS |
| M_OUT BODY 2 STAGE GR1+1 | 3/8 GAS |
| N_PORTS POS 2 STAGE GR1+1 | Standard from catalogue |
| O_SEALING GR1+1 | Standard from catalogue |
| O-Ring, Inside Diameter | Slash |
| OC DELIMITER (-) | - |
| P_SCREWS GR1+1 | Standard from catalogue |
| Proposition 65 | Cancer and Reproductive Harm |
| Q_SET VALVE GR1+1 | without setting |
| R_TYPE OF MARK GR1+1 | Std Sauer Danfoss Marking |
| S_MARK POSITION GR1+1 | Std Position Marking |
| Slash separator | Slash |
11195457: frequently asked questions
When can 11195457 be shipped?
11195457 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 11195457 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 11195457 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 11195457, subject to availability and destination.
