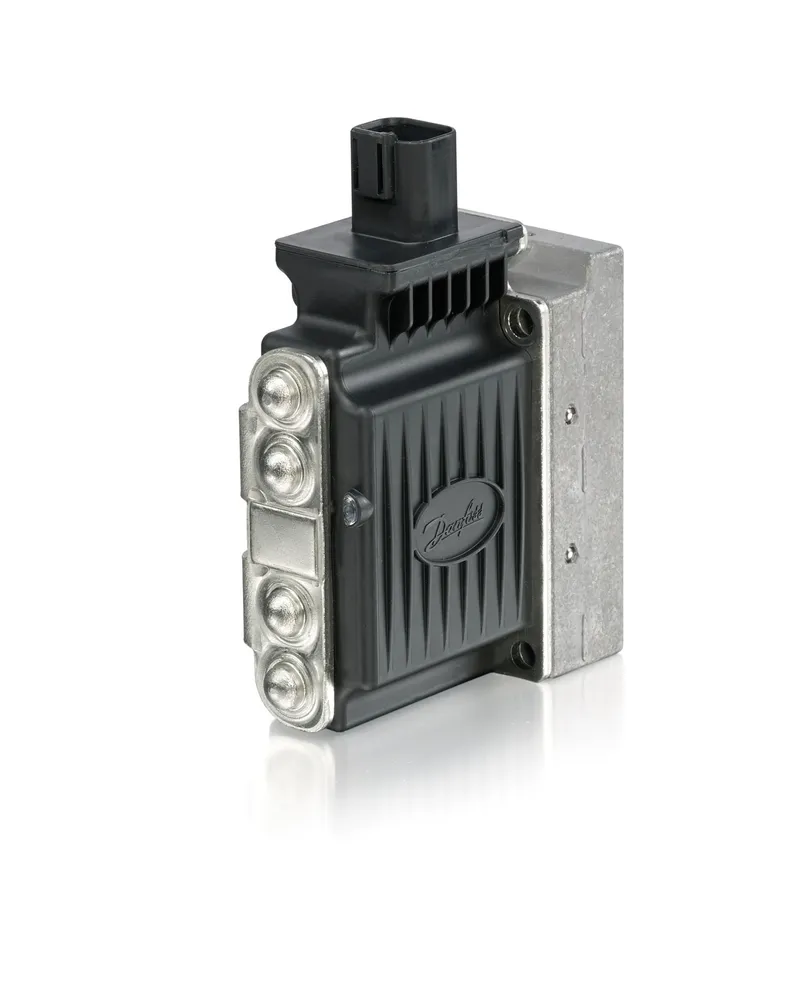

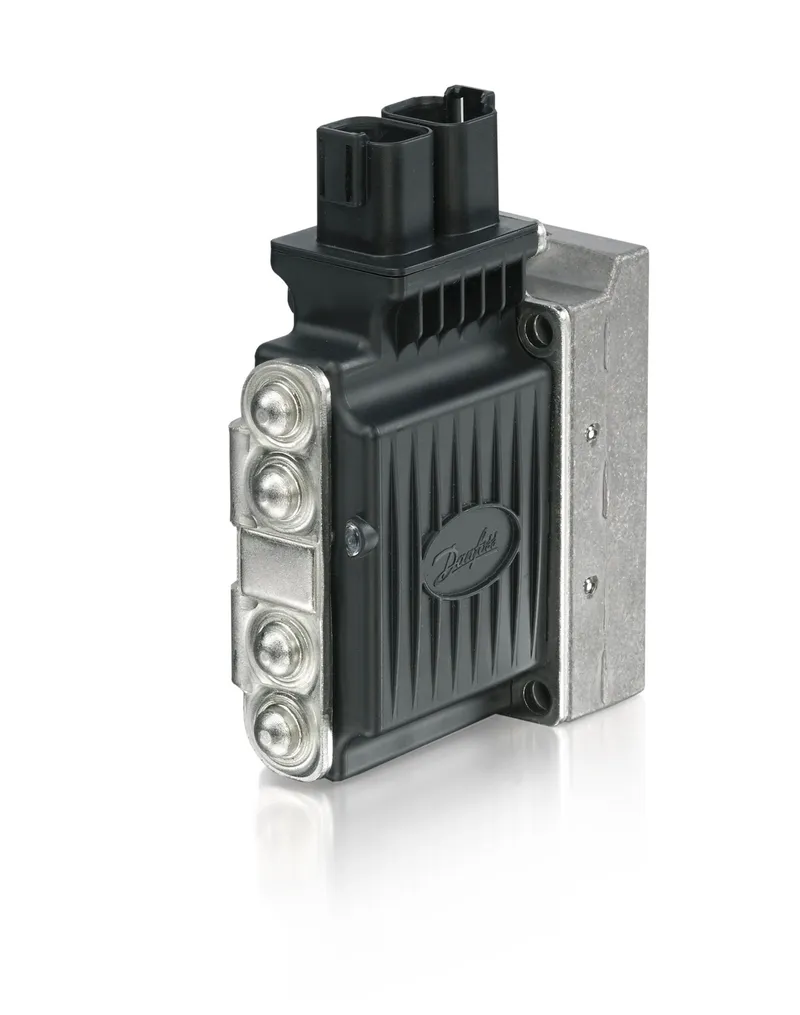

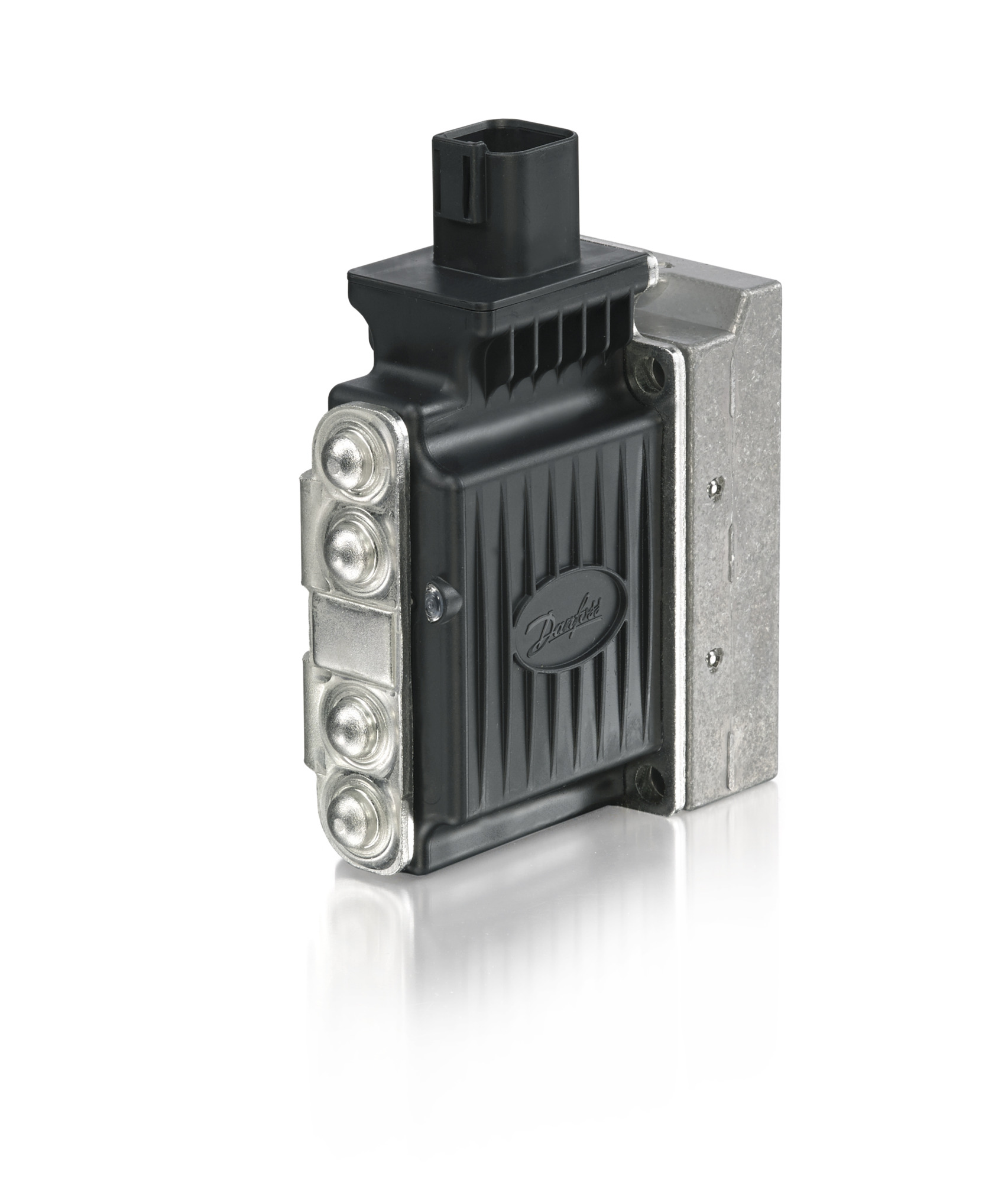

Danfoss 11187562

PVEO32-ACTUATOR-HP-S7-1x4DIN-3W.O-24V

MPN: 11187562
Category: Compensated directional control valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11187562?

Danfoss PVEO32-ACTUATOR-HP-S7-1x4DIN-3W.O-24V, manufacturer part number 11187562. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port Placement	N/A
B Port Placement	N/A
CAN Protocol	N/A
Certification	ISO13849 Compliant
Coil Power	5 W
Connector Direction	90 (Up)
Connector Type	1x4 DIN 43650-A/ISO4400
Control Signal	On/Off
De-Stroke Reaction A	70 ms
De-Stroke Reaction B	70 ms
Digital Type	N/A
Disable Function	N/A
Ex Application	N/A
Extra Function	N/A
Fault Reaction & Recovery	N/A
Float Direction	N/A
Hysteresis	N/A
IP Rating	IP65
Length	89
Manual Override	N/A
Marking	CE
Max Oil Consump. Steady State	0 l/min
Max Oil Consumption	0 l/min
Maximum System Pressure Peaks	65
Minimum Float Position	N/A
Nominel A Stroke	7
Nominel B Stroke	7
On-Stroke Response A	90 ms
On-Stroke Response B	90 ms
Output Signal	N/A
Outward Side Interface	N/A
Pilot Pressure	23 (PVHC)
Pilot Pressure Full Stroke	N/A
Pilot Pressure Neutral	N/A
Port Connection Type	N/A
Port Size	N/A
Primer	N/A
Product Category	Standard Part
Product type	N/A
Proposition 65	Cancer and Reproductive Harm
PVDI connector coding	N/A
Resolution	1
Valve Side Interface	PVE32 O-Ring
Voltage	24

11187562: frequently asked questions

When can 11187562 be shipped?

11187562 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 11187562 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 11187562 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 11187562, subject to availability and destination.
