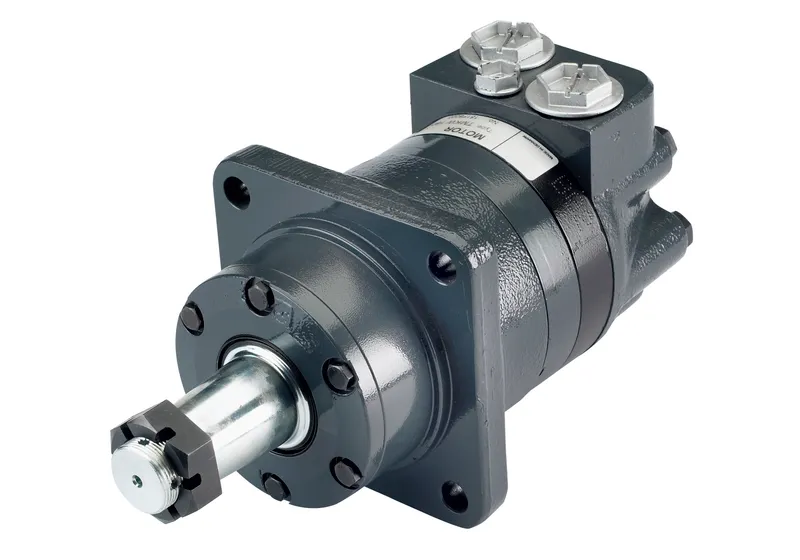

MOTOR-ORBITAL,TMK SERIES 315 [19.2], TMK-0315-B-NN-W36-AV-1D-E21-E-A-1B-0-N-NN-AAE17-NN-NN-NN-SP-NNN
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Orbitron motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 11181472 be shipped?
11181472 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 11181472 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 11181472 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 11181472, subject to availability and destination.
Danfoss MOTOR-ORBITAL,TMK SERIES 315 [19.2], TMK-0315-B-NN-W36-AV-1D-E21-E-A-1B-0-N-NN-AAE17-NN-NN-NN-SP-NNN, manufacturer part number 11181472. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Brake Release Port Dimension | n/a |
| Check valve function | No |
| Design code | 00 |
| Drain Port Dimension | G 1/4 |
| Dust seal | Standard |
| Front bearing type | Tapered roller bearing |
| Geometric displacement [cm3/r [in3/r]] | 315.3 [19.23] |
| Hydraulic valve function | None |
| Main port dimension | G 3/4 |
| Main port style | Sideport - staggered |
| Main port thread type | BSP |
| Model Code | TMK-0315-B-NN-W36-AV-1D-E21-E-A-1B-0-N-NN-AAE17-NN-NN-NN-SP-NNN |
| Motor function | Standard |
| Motor Series | TMK Series |
| Motor size | 315 |
| Motor type | Wheel |
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] | 107.9 x 6.4, 147.6, 13.6 [4.25 x 0.25, 5.81, 0.54] Rear: 126.9 x 3.6, 147.6, 13.6 [5.00 x 0.14, 5.81, 0.54] |
| Mounting flange type | 4 Bolt - Wheel |
| Name Tag | Danfoss name tag |
| Orbital gearwheel set | Standard |
| Orbital gearwheel set type | Geroler |
| Packaging | Single pack |
| Paint information | Painted, Black, Medium gloss |
| Painted | Yes |
| Proposition 65 | Cancer and Reproductive Harm |
| Rear bearing type | Tapered roller bearing |
| Seal Kit | 151F0141 |
| Sensor | None |
| Shaft dimension | Dia. 1 1/4 inch, 14T, 3/8 - 16 UNC-2B thread in shaft end |
| Shaft Key | n/a |
| Shaft Seal | FPM viton - Standard |
| Shaft type | Splined |
| Special Features Assembly | Standard |
| Valve system | Disc valve with valve drive |
