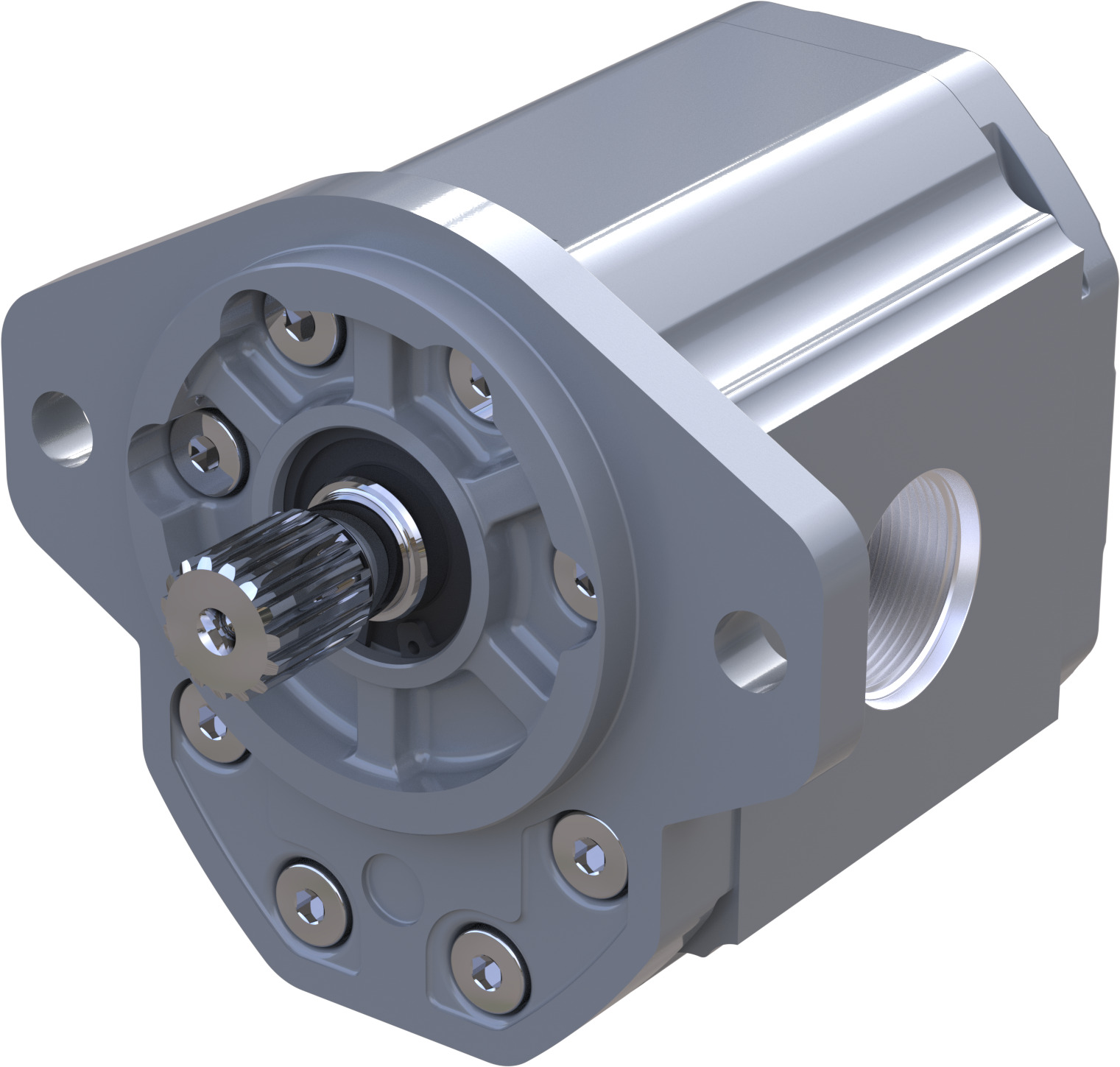

Danfoss 11180197

GEAR PUMP GR3 FIXED DISPL

MPN: 11180197
Category: GearMe single stage

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11180197?

Danfoss GEAR PUMP GR3 FIXED DISPL, manufacturer part number 11180197. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

B: Displacement	Displacement 33 cc
C: Rotation	Product with counter-clockwise rotation
D: Project version	Standard Version of Project
E: Mounting flange	Flange female pilot D.50.8 and 4 holes for bolts (98,4x128,1) SC11
F: Drive gear	Spline drive DIN 5482 B 22 x 19 L=16,5 SC11
G: Rear cover	Standard cover for pump
H: Inlet size	31x30,18x58,72xM10 deep18 Horiz
I: Outlet size	25x52,37x26,19x M10 hor.20deep
J: Ports position	Standard from catalogue
K: Seals	Standard seal
L: Screws	Product assembled with 'DACROMET'or 'GEOMET' covering screws (+nuts, washers or cap nuts galvanized if listed on the Bill of Materia) (LML)
M: Valve setting	without setting
N: Mark type	Standard Marking
O-Ring, Inside Diameter	Slash
O: Mark position	Position Marking standard
Proposition 65	Cancer and Reproductive Harm
Single Stage Family	Gr3 Last Stage
Slash separator	Slash
