Danfoss 11179485

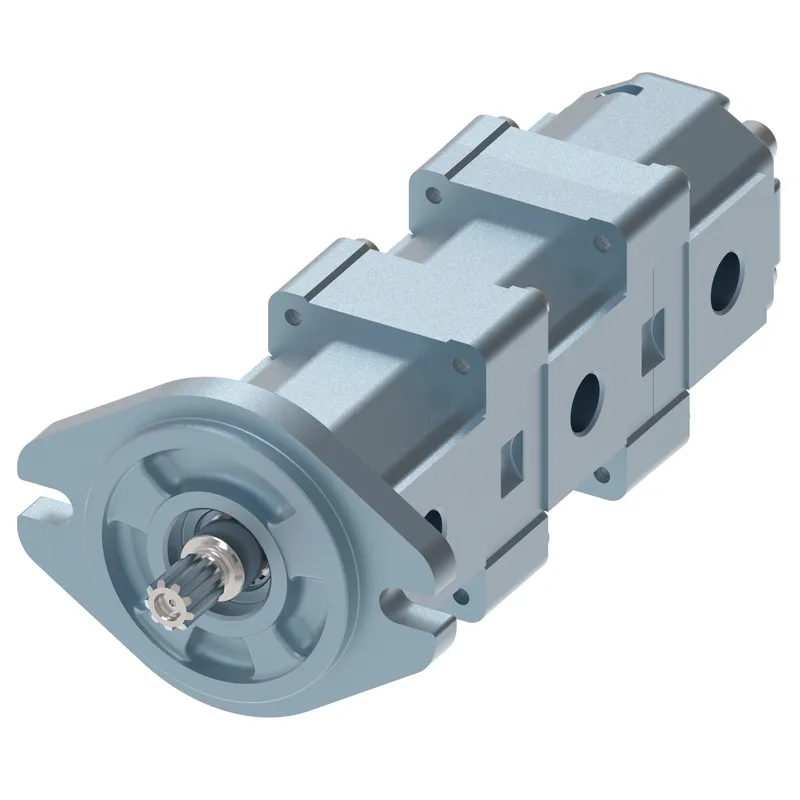

TRIPLE GEAR PUMP GR1 FIXED DISPL
- MPN
- 11179485
- Category
- GearMe modular three stage
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 11179485?
Danfoss TRIPLE GEAR PUMP GR1 FIXED DISPL, manufacturer part number 11179485. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A_FAMILY GR1+1+1 | SNW1NN+SNO1NN+SNQ1NN |
| B_1ST DISPL GR1+1+1 | Displacement 7,8cc |
| C_2ND DISPL GR1+1+1 | Displacement 2,6cc |
| D_3RD DISPL GR1+1+1 | Displacement 3,8cc |
| E_ROT GR1+1+1 | Right rotation |
| F_PROJ VER GR1+1+1 | With intermediate flange all stages |
| G_FLANGE GR1+1+1 | Pilot D25,4+4 holes for bolts |
| H_DRIVE GR1+1+1 | Taper 1:8-M7-Key2,41+Rear shaft Spline CO41 |
| I_COVER GR1+1+1 | Std Cover for pump |
| J_IN BODY 1ST GR1+1+1 | 3/8 GAS |
| K_OUT BODY 1ST GR1+1+1 | 3/8 GAS |
| L_PORTS POS 1ST GR1+1+1 | Std from catalogue |
| M_IN BODY 2ND GR1+1+1 | 3/8 GAS |
| N_OUT BODY 2ND GR1+1+1 | 3/8 GAS |
| O_PORTS POS 2ND GR1+1+1 | Std from catalogue |
| O-Ring, Inside Diameter | Slash |
| OC DELIMITER (-) | - |
| P_IN BODY 3RD GR1+1+1 | 3/8 GAS |
| Proposition 65 | Cancer and Reproductive Harm |
| Q_OUT BODY 3RD GR1+1+1 | 3/8 GAS |
| R_PORTS POS 3RD GR1+1+1 | Std from catalogue |
| S_SEALS GR1+1+1 | Std from catalogue |
| Slash separator | Slash |
| T_SCREWS GR1+1+1 | Std from catalogue |
| U_SET VALVE GR1+1+1 | without setting |
| V_TYPE MARK GR1+1+1 | Std Sauer Danfoss Marking |
| W_MARK POS GR1+1+1 | Std mark position |
