Danfoss 11174608

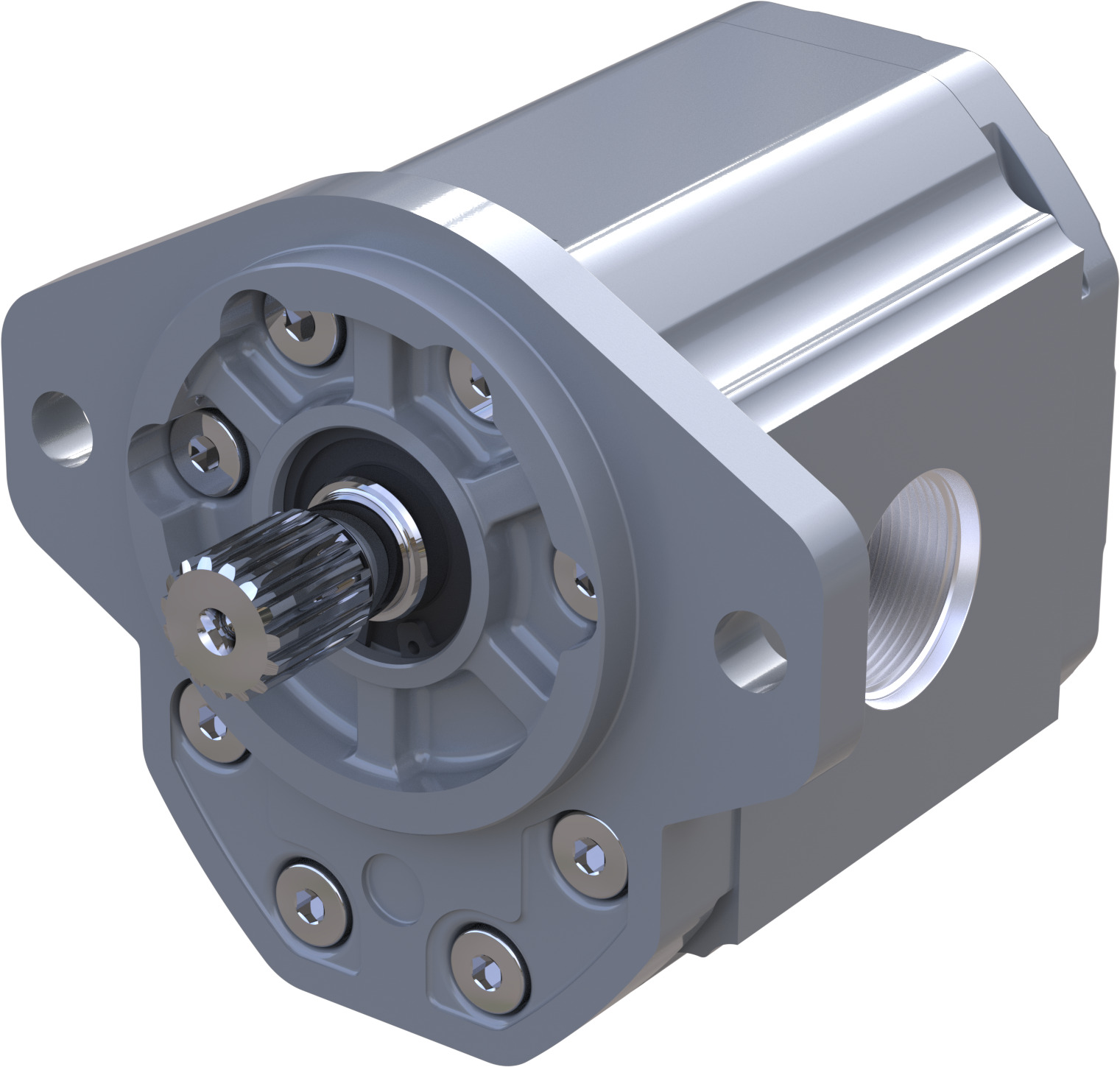

PROTOTYPE GEAR PUMP GR3 FIXED DISPL

MPN: 11174608
Category: GearMe single stage

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11174608?

Danfoss PROTOTYPE GEAR PUMP GR3 FIXED DISPL, manufacturer part number 11174608. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

B: Displacement	Displacement 28cc
C: Rotation	Product with counter-clockwise rotation
D_SIZE GROUP3	Group3-from 16 to 90cc displ
D: Project version	Standard Version of Project
E_VALVE GROUP3	Without valve
E: Mounting flange	Flange SAE b with pilot D.101,6 and 2 holes for bolts
F_DRAIN GROUP3	Standard or no drain
F: Drive gear	Splined SAE J498-13T-16/32-Dp Class 1FIT - for flange SAE 'B' SC07
G: Rear cover	Standard cover for pump
H: Inlet size	M33x2-ISO6149
I: Outlet size	M27x2-ISO6149
J: Ports position	Standard from catalogue
K: Seals	Standard seal
L: Screws	Product assembled with 'DACROMET'or 'GEOMET' covering screws (+nuts, washers or cap nuts galvanized if listed on the Bill of Materia) (LML)
M: Valve setting	without setting
N: Mark type	Standard Marking
O-Ring, Inside Diameter	Slash
O: Mark position	Position Marking standard
Proposition 65	Cancer and Reproductive Harm
Slash separator	Slash
