Danfoss 11169142

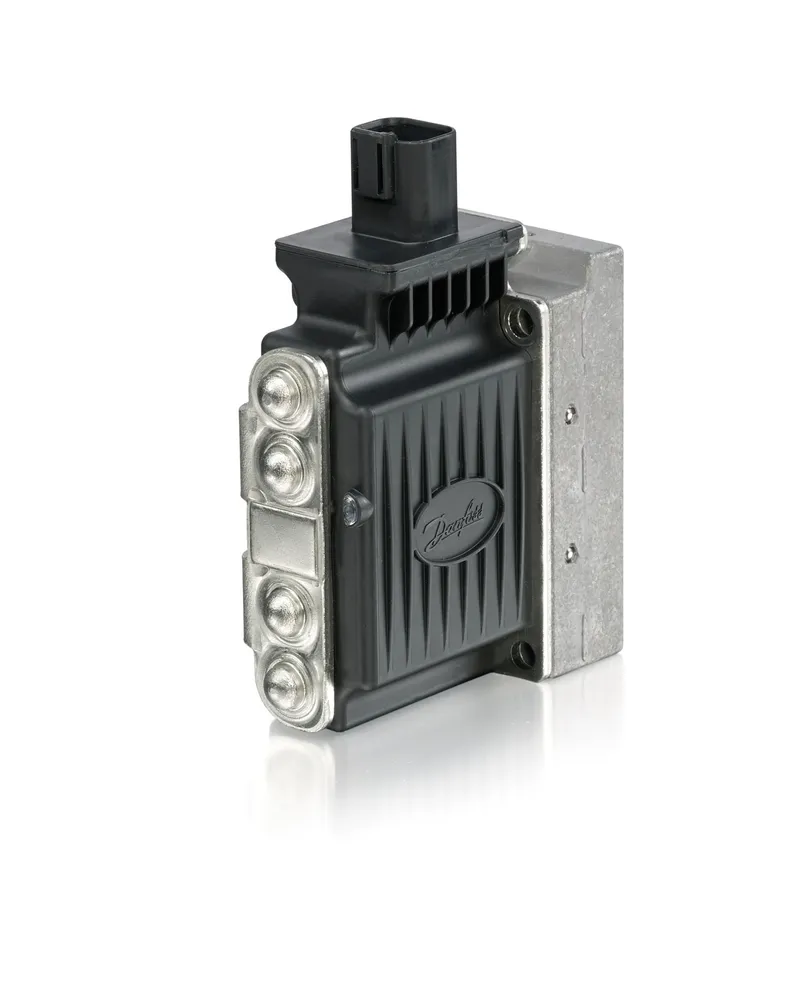

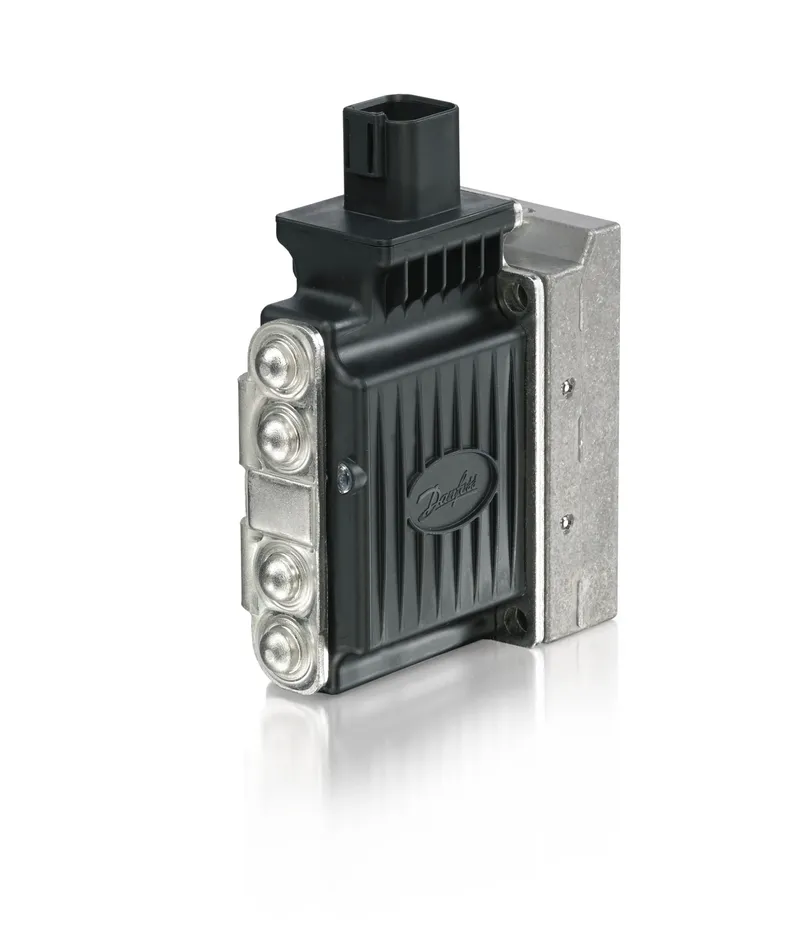

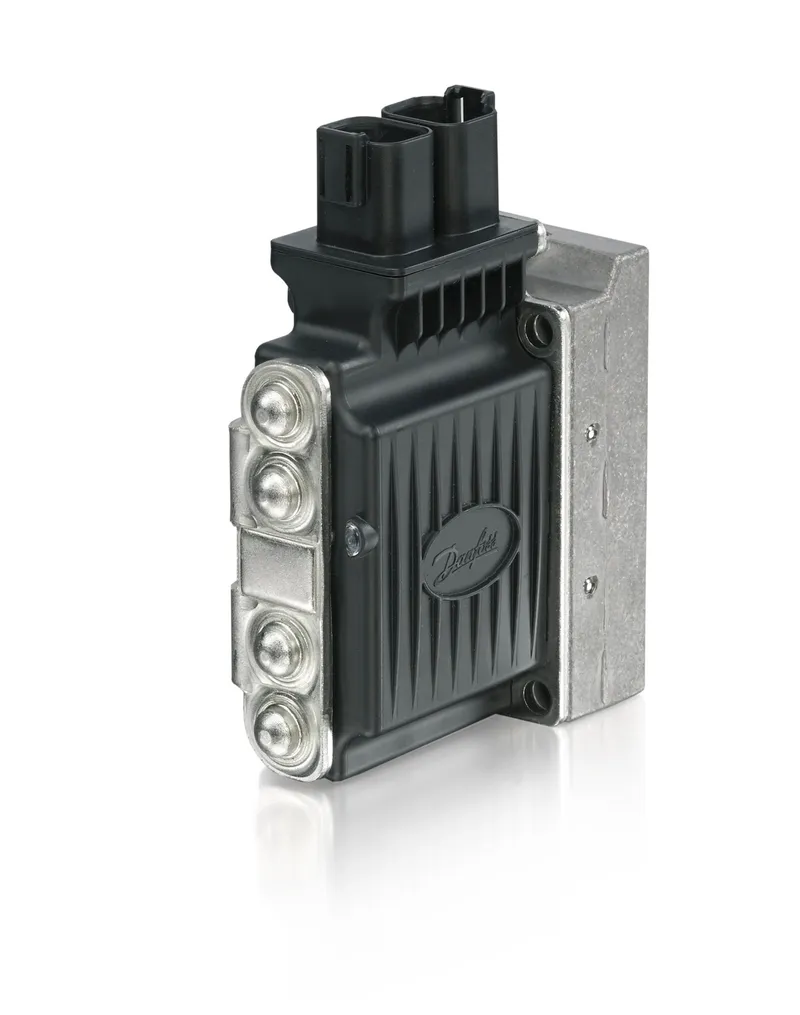

PVED32-ACTUATOR-CC-S5-2x4AMP-H-CANOPEN

MPN: 11169142
Category: Compensated directional control valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11169142?

Danfoss PVED32-ACTUATOR-CC-S5-2x4AMP-H-CANOPEN, manufacturer part number 11169142. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port Placement	N/A
B Port Placement	N/A
CAN Protocol	CANOpen CiA408
Certification	ISO13849 Compliant
Coil Power	8 W
Connector Direction	90 (Up)
Connector Type	2x4 AMP JPT SAAB
Control Signal	CANBus
De-Stroke Reaction A	120 ms
De-Stroke Reaction B	120 ms
Digital Type	CC
Disable Function	Power Save
Ex Application	N/A
Extra Function	N/A
Fault Reaction & Recovery	Setting
Float Direction	A/B Port
Hysteresis	4.0%
IP Rating	IP66
Length	85
Manual Override	N/A
Marking	CE EAC
Max Oil Consump. Steady State	0 l/min
Max Oil Consumption	0 l/min
Maximum System Pressure Peaks	60
Minimum Float Position	N/A
Nominel A Stroke	7
Nominel B Stroke	7
On-Stroke Response A	120 ms
On-Stroke Response B	120 ms
Output Signal	CAN
Outward Side Interface	N/A
Pilot Pressure	13.5 (PVE)
Pilot Pressure Full Stroke	N/A
Pilot Pressure Neutral	N/A
Port Connection Type	N/A
Port Size	N/A
Primer	N/A
Product Category	Restricted Part
Product type	Electrical Actuator
Proposition 65	Cancer and Reproductive Harm
PVDI connector coding	N/A
Resolution	250
Valve Side Interface	PVE32 O-Ring
Voltage	11-32
