Danfoss 11160127

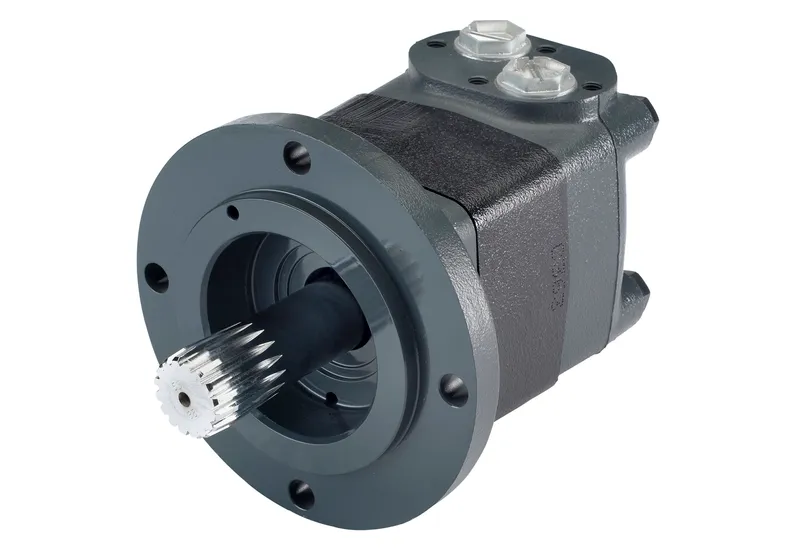

OMTS 315 HD HYDRAULIC MOTOR

MPN: 11160127
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11160127?

Danfoss OMTS 315 HD HYDRAULIC MOTOR, manufacturer part number 11160127. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	OMT-0315-C-EB-S14-AD-1D-NNN-N-N-1B-0-N-NN-AAE12-NN-NN-NN-SP-NNN
Motor Series	OMT Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	315
Geometric displacement [cm3/r [in3/r]]	326.3 [19.91]
Motor type	Short
Motor function	Heavy-Duty version, Reinforced parts
Mounting flange type	4 Bolt - Short
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	124.9 x 8.0, 160.0, 14.0 [4.92 x 0.325, 6.30, 0.55]
Shaft type	None
Shaft dimension	n/a
Shaft Key	n/a
Main port thread type	BSP
Main port style	Sideport - staggered
Main port dimension	G 3/4, 4 x M10 block mounting threads
Drain Port Dimension	G 1/4
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Painted, Black, Medium gloss
Special features hardware	Standard
Special Features Assembly	Standard
Dust seal	n/a
Shaft Seal	n/a
Seal Kit	151B0161
Front bearing type	n/a
Rear bearing type	n/a
Orbital gearwheel set	Standard
Check valve function	No
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Danfoss name tag
Design code	2
Delete Model Code	Yes
Proposition 65	Cancer and Reproductive Harm
