Danfoss 11158717

MOTOR-ORBITAL,TMK SERIES 315 [19.2], TMK-0315-B-NN-W36-AV-1D-E21-A-A-1B-0-N-NN-AAE17-NN-NN-NN-SP-NNN

MPN
11158717
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11158717?

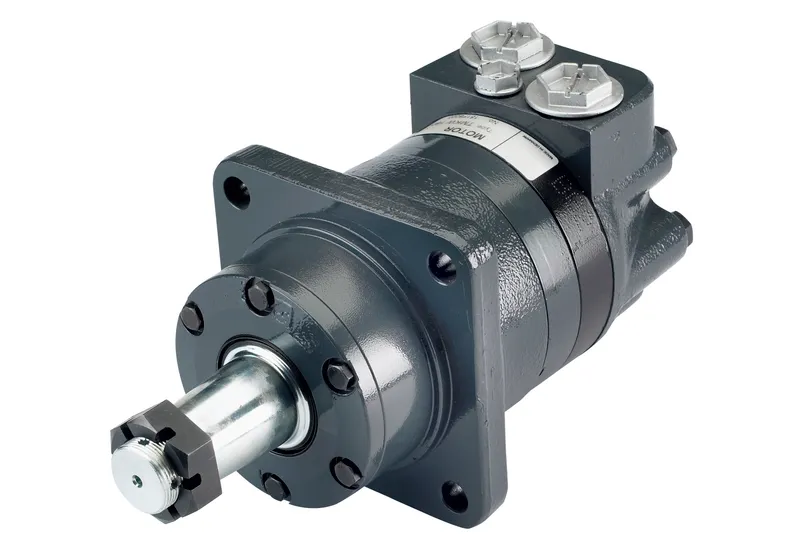

Danfoss MOTOR-ORBITAL,TMK SERIES 315 [19.2], TMK-0315-B-NN-W36-AV-1D-E21-A-A-1B-0-N-NN-AAE17-NN-NN-NN-SP-NNN, manufacturer part number 11158717. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Volume0.178 Hectoliter
Brake Release Port Dimensionn/a
Check valve functionNo
Design code00
Drain Port DimensionG 1/4
Dust sealStandard
Front bearing typeTapered roller bearing
Geometric displacement [cm3/r [in3/r]]315.3 [19.23]
Hydraulic valve functionNone
Main port dimensionG 3/4
Main port styleSideport - staggered
Main port thread typeBSP
Model CodeTMK-0315-B-NN-W36-AV-1D-E21-A-A-1B-0-N-NN-AAE17-NN-NN-NN-SP-NNN
Motor functionStandard
Motor SeriesTMK Series
Motor size315
Motor typeWheel
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]107.9 x 6.4, 147.6, 13.6 [4.25 x 0.25, 5.81, 0.54] Rear: 126.9 x 3.6, 147.6, 13.6 [5.00 x 0.14, 5.81, 0.54]
Mounting flange type4 Bolt - Wheel
Name TagDanfoss name tag
Orbital gearwheel setStandard
Orbital gearwheel set typeGeroler
PackagingSingle pack
Paint informationPainted, Black, Medium gloss
PaintedYes
Proposition 65Cancer and Reproductive Harm
Rear bearing typeTapered roller bearing
Seal Kit151F0141
SensorNone
Shaft dimensionDia. 1 1/4 inch, 14T, 3/8 - 16 UNC-2B thread in shaft end
Shaft Keyn/a
Shaft SealNBR - Standard
Shaft typeSplined
Special Features AssemblyStandard
Valve systemDisc valve with valve drive

11158717: frequently asked questions

When can 11158717 be shipped?

11158717 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 11158717 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 11158717 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 11158717, subject to availability and destination.
