Danfoss 11143779

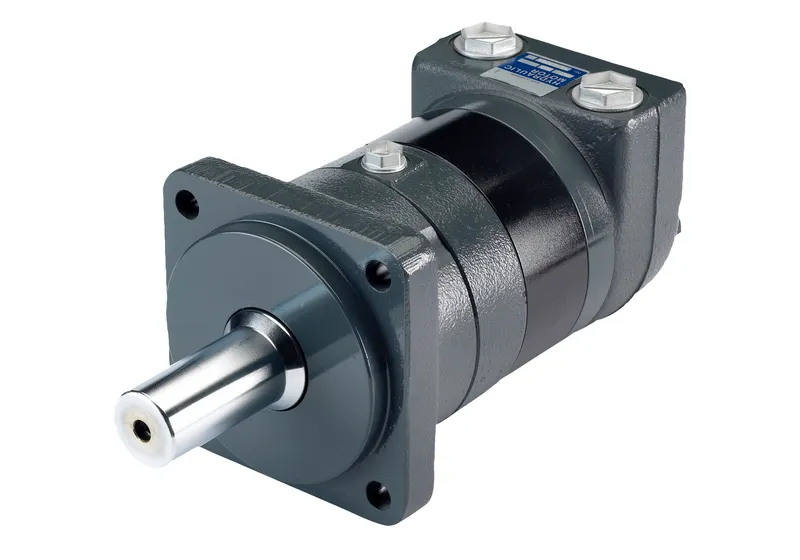

TMT 315 EMD HYDRAULIC MOTOR

MPN
11143779
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11143779?

Danfoss TMT 315 EMD HYDRAULIC MOTOR, manufacturer part number 11143779. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Model CodeTMT-0315-A-NN-G18-AV-2E-A31-A-B-2C-0-N-AA-NNNNN-NN-NN-NN-SP-NNN
Motor SeriesTMT Series
Valve systemDisc valve with valve drive
Orbital gearwheel set typeGeroler
Motor size315
Geometric displacement [cm3/r [in3/r]]326.3 [19.91]
Motor typeStandard
Motor functionStandard
Mounting flange type4 Bolt - Square
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]125.0 x 9.0, 160.0, 14.0 [4.92 x 0.35, 6.30, 0.55]
Shaft typeStraight
Shaft dimensionDia. 40 mm, M12 x 1.75-6H thread in shaft end
Shaft KeyRectangular key, A12 x 8 x 70 mm, DIN 6885
Main port thread typeUN / UNF
Main port styleSideport - staggered
Main port dimension1 1/16 - 12 UN-2B SAE O-Ring port, -
Drain Port Dimension9/16 - 18 UNF-2B O-Ring port
Brake Release Port Dimensionn/a
PaintedNo
Paint informationn/a
Special features hardwareStandard
Special Features AssemblyStandard
Dust sealIntegrated in shaft seal
Shaft SealNBR - Standard
Seal Kit151B0176
Front bearing typeTapered roller bearing
Rear bearing typeTapered roller bearing
Orbital gearwheel setStandard
Check valve functionNo
Hydraulic valve functionNone
SensorSpeed Sensor ready (EMD)
PackagingSingle pack
Name TagDanfoss name tag
Design code00
Delete Model CodeYes
Proposition 65Cancer and Reproductive Harm

11143779: frequently asked questions

When can 11143779 be shipped?

11143779 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 11143779 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 11143779 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 11143779, subject to availability and destination.
