Danfoss 11143532

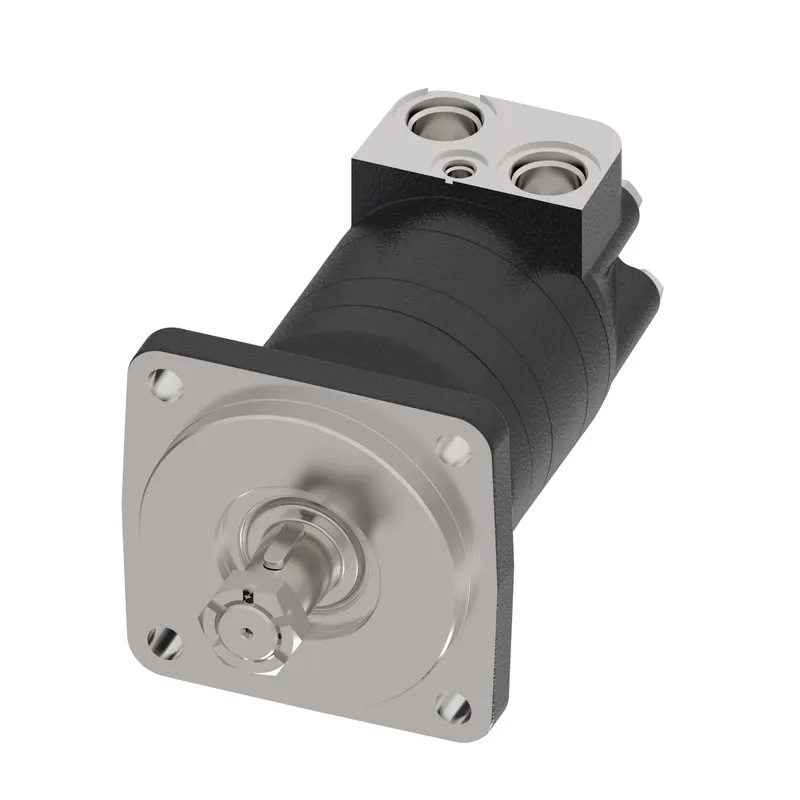

TMK 250 EMD HYDRAULIC MOTOR

MPN
11143532
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11143532?

Danfoss TMK 250 EMD HYDRAULIC MOTOR, manufacturer part number 11143532. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Model CodeTMK-0250-A-NN-C17-AV-2E-E21-A-A-2B-1-N-AA-AAE50-NN-NN-NN-SP-NNN
Motor SeriesTMK Series
Valve systemDisc valve with valve drive
Orbital gearwheel set typeGeroler
Motor size250
Geometric displacement [cm3/r [in3/r]]252.2 [15.39]
Motor typeStandard
Motor functionStandard
Mounting flange type4 Bolt - C
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]127.0 x 12.4, 161.9, 14.4 [5.00 x 0.49, 6.37, 0.57]
Shaft typeSplined
Shaft dimensionDia. 1 1/4 inch, 14T, 3/8 - 16 UNC-2B thread in shaft end
Shaft Keyn/a
Main port thread typeUN / UNF
Main port styleSideport - staggered
Main port dimension1 1/16 - 12 UN-2B SAE O-Ring port,
Drain Port Dimension7/16-20 UNF-2B O-Ring port
Brake Release Port Dimensionn/a
PaintedYes
Paint informationPainted, Black, Medium gloss
Special features hardwareStandard
Special Features AssemblyStandard
Dust sealStandard
Shaft SealNBR - Standard
Seal Kit151F0141
Front bearing typeTapered roller bearing
Rear bearing typeTapered roller bearing
Orbital gearwheel setStandard
Check valve functionYes
Hydraulic valve functionNone
SensorSpeed Sensor ready (EMD)
PackagingSingle pack
Name TagDanfoss name tag
Design code00
Delete Model CodeYes
Proposition 65Cancer and Reproductive Harm
