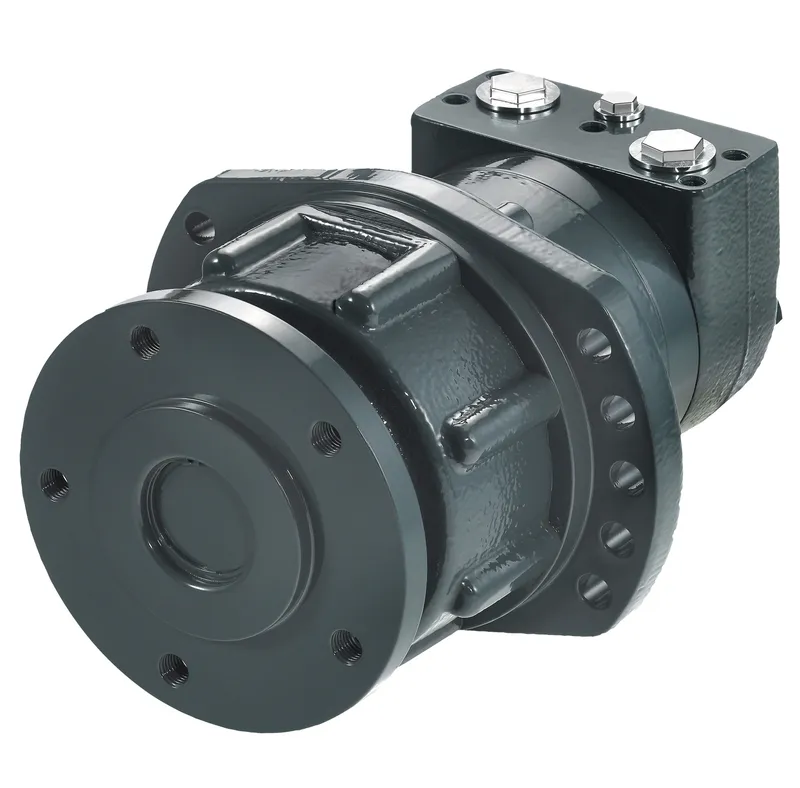

MOTOR-ORBITAL,TMT SERIES 400 [24.4], TMTH-0400-B-NN-W58-AF-1D-K10-A-J-1B-0-N-NN-AAE26-NN-NN-NN-SP-NNN

Name: MOTOR-ORBITAL,TMT SERIES 400 [24.4], TMTH-0400-B-NN-W58-AF-1D-K10-A-J-1B-0-N-NN-AAE26-NN-NN-NN-SP-NNN
Brand: Danfoss (Drives)
SKU: 11137331

MPN: 11137331 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Orbitron motors
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 11137331 be shipped?

11137331 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 11137331 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 11137331 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 11137331, subject to availability and destination.

Danfoss MOTOR-ORBITAL,TMT SERIES 400 [24.4], TMTH-0400-B-NN-W58-AF-1D-K10-A-J-1B-0-N-NN-AAE26-NN-NN-NN-SP-NNN, manufacturer part number 11137331. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brake Release Port Dimension	n/a
Check valve function	No
Design code	00
Drain Port Dimension	G 1/4
Dust seal	Standard plus seal guard
Front bearing type	Tapered roller bearing
Geometric displacement [cm3/r [in3/r]]	393.1 [24.00]
Hydraulic valve function	None
Main port dimension	G 3/4, 5 x M10 block mounting threads
Main port style	Sideport - staggered
Main port thread type	BSP
Model Code	TMTH-0400-B-NN-W58-AF-1D-K10-A-J-1B-0-N-NN-AAE26-NN-NN-NN-SP-NNN
Motor function	Standard
Motor Series	TMTH Series
Motor size	400
Motor type	Wheel
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	179.9 x 11.8, 210.0, 14.2 [7.08 x 0.46, 8.27, 0.56] Rear: 179.9 x 7.2, 210.0, 14.2 [7.08 x 0.28, 8.27, 0.56]
Mounting flange type	10 Bolt - Wheel
Name Tag	Danfoss name tag
Orbital gearwheel set	Standard
Orbital gearwheel set type	Geroler
Packaging	Single pack
Paint information	Painted, Black, Medium gloss
Painted	Yes
Proposition 65	Cancer and Reproductive Harm
Rear bearing type	Tapered roller bearing
Seal Kit	11131621
Sensor	None
Shaft dimension	Thread Hole Flange: 5 x M14 x 1.5 - BCD 140 mm [5.5 inch]
Shaft Key	n/a
Shaft Seal	NBR - Standard
Shaft type	Wheel hub
Special Features Assembly	Standard
Valve system	Disc valve with valve drive
