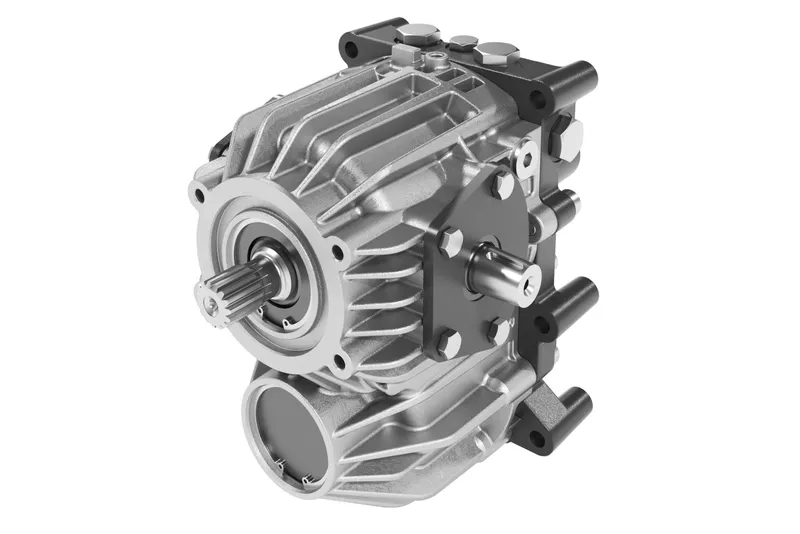

PUMP-U STYLE HST TANDEM 3232,RF

Name: PUMP-U STYLE HST TANDEM 3232,RF
Brand: Danfoss (Drives)
SKU: 11127143

MPN: 11127143 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Transmissions
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 11127143 be shipped?

11127143 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 11127143 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 11127143 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 11127143, subject to availability and destination.

Danfoss PUMP-U STYLE HST TANDEM 3232,RF, manufacturer part number 11127143. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A: Displacement & block type	032 cc/rev displacement at maximum angle, U-shaft, housing mounting
B: Rotation	Counter-clockwise rotation
C: Valve plate pump	CP6.5 0.8 deg index valve plate
D: Control arm position	Right side, from input shaft view
E: Control arm configuration	17mm Square
F: Pump shaft configuration (input shaft/PTO shaft)	JA: JIS 18T, NONE W/CP
H: Output shaft configuration	F: JIS 18T 25MM OD W/ GRV
J: Centersection configuration	R: DR NONE, CHG G1/2, REMOTE F
K: Charge pump displacement	6: 6cc/rev
L: CHARGE RELIEF SETTING	08: 8bar
M: BYPASS VALVE	None
N: Check & relief valve (left-hand side viewing from housing)	High Pressure Relief Valve 345 bar [5000 psi]
P: Check & relief valve (right-hand side viewing from housing)	34A: HPRV 345 bar w/ orifice
Proposition 65	Cancer and Reproductive Harm
Series	LDU Product
Y: Special hardware feature	SNN: HOUSING W/ SMALL FLANGE
Z: Paint and nametag	Black Paint, Danfoss Nametag, Standard Layout
