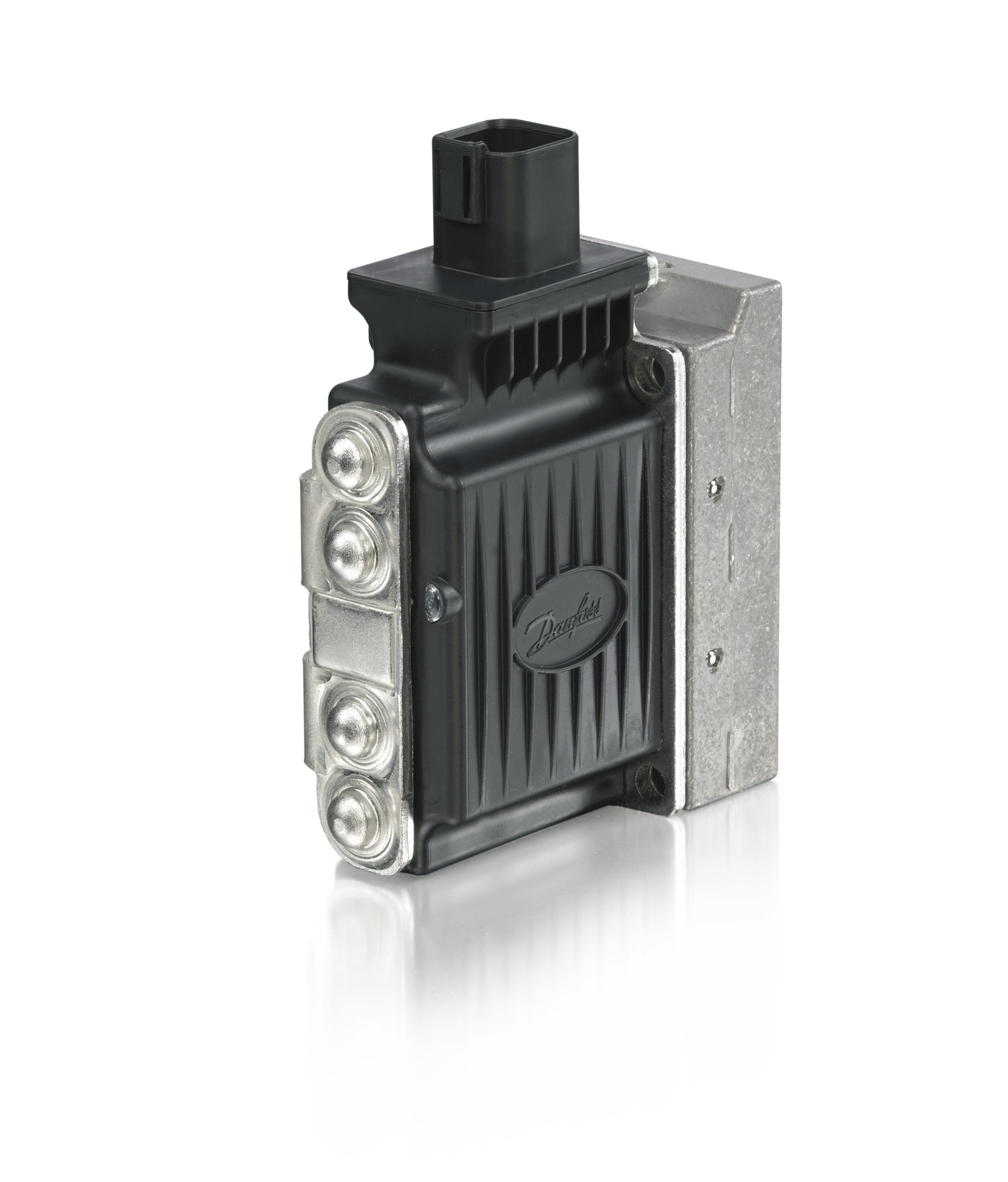

Danfoss 11091906

PVEH32-ACTUATOR-F-S4-1x6AMP-H-ACTIV-A5.5

MPN: 11091906
Category: Compensated directional control valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11091906?

Danfoss PVEH32-ACTUATOR-F-S4-1x6AMP-H-ACTIV-A5.5, manufacturer part number 11091906. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port Placement	N/A
B Port Placement	N/A
CAN Protocol	N/A
Certification	ISO13849 Compliant
Coil Power	8 W
Connector Direction	90 (Up)
Connector Type	1x6AMP
Control Signal	Ratiometric
De-Stroke Reaction A	90 ms
De-Stroke Reaction B	90 ms
Digital Type	N/A
Disable Function	N/A
Ex Application	N/A
Extra Function	N/A
Fault Reaction & Recovery	Solenoid Disable & AutoRecov
Float Direction	A Port
Hysteresis	4.0%
IP Rating	IP66
Length	106
Manual Override	N/A
Marking	CE EAC
Max Oil Consump. Steady State	0 l/min
Max Oil Consumption	0 l/min
Maximum System Pressure Peaks	60
Minimum Float Position	6
Nominel A Stroke	7
Nominel B Stroke	7
On-Stroke Response A	120 ms
On-Stroke Response B	120 ms
Output Signal	N/A
Outward Side Interface	N/A
Pilot Pressure	13.5 (PVE)
Pilot Pressure Full Stroke	N/A
Pilot Pressure Neutral	N/A
Port Connection Type	N/A
Port Size	N/A
Primer	N/A
Product Category	Obsolete
Proposition 65	Cancer and Reproductive Harm
PVDI connector coding	N/A
Resolution	250
Valve Side Interface	PVE32 O-Ring
Voltage	11-32
