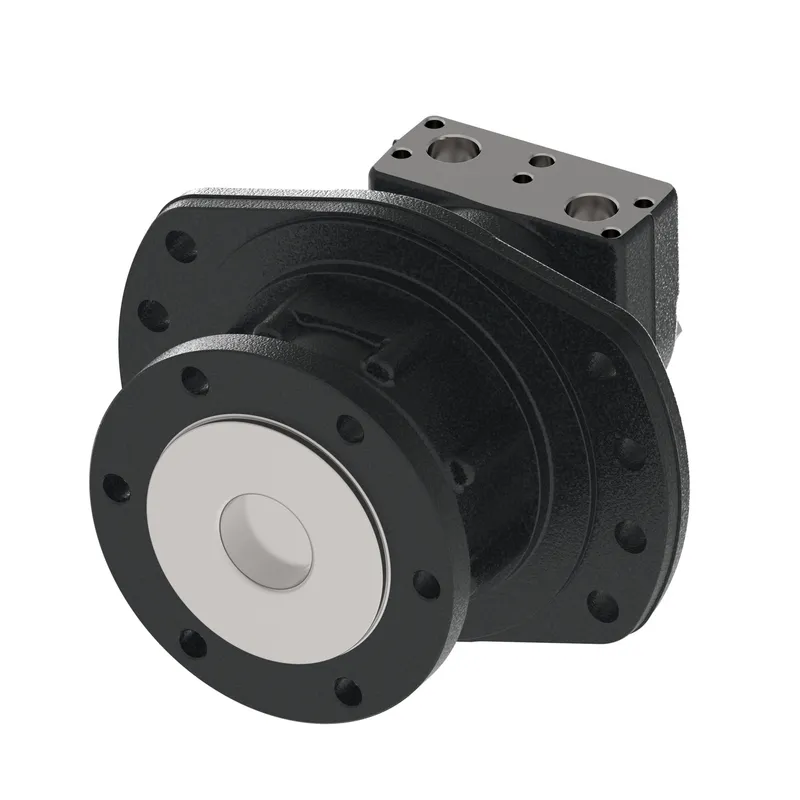

Danfoss 11089439

MOTOR-ORBITAL,TMT SERIES 630 [38.4], TMTH-0630-B-NN-W57-AF-1D-K11-A-J-1B-0-N-NN-AAE26-NN-NN-NN-SP-NNN

MPN
11089439
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11089439?

Danfoss MOTOR-ORBITAL,TMT SERIES 630 [38.4], TMTH-0630-B-NN-W57-AF-1D-K11-A-J-1B-0-N-NN-AAE26-NN-NN-NN-SP-NNN, manufacturer part number 11089439. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Brake Release Port Dimensionn/a
Check valve functionNo
Design code00
Drain Port DimensionG 1/4
Dust sealStandard plus seal guard
Front bearing typeTapered roller bearing
Geometric displacement [cm3/r [in3/r]]630.7 [38.50]
Hydraulic valve functionNone
Main port dimensionG 3/4, 5 x M10 block mounting threads
Main port styleSideport - staggered
Main port thread typeBSP
Model CodeTMTH-0630-B-NN-W57-AF-1D-K11-A-J-1B-0-N-NN-AAE26-NN-NN-NN-SP-NNN
Motor functionStandard
Motor SeriesTMTH Series
Motor size630
Motor typeWheel
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]223.9 x 5.0, 265.0, 17.6 [8.82 x 0.20, 10.43, 0.69] Rear: 223.9 x 5.0, 265.0, 17.6 [8.82 x 0.20, 10.43, 0.69]
Mounting flange type8 Bolt - Wheel
Name TagDanfoss name tag
Orbital gearwheel setStandard
Orbital gearwheel set typeGeroler
PackagingSingle pack
Paint informationPainted, Black, Medium gloss
PaintedYes
Proposition 65Cancer and Reproductive Harm
Rear bearing typeTapered roller bearing
Seal Kit11131621
SensorNone
Shaft dimensionThread Hole Flange: 6 x M16 x 1.5 - BCD 170 mm [6.7 inch]
Shaft Keyn/a
Shaft SealNBR - Standard
Shaft typeWheel hub
Special Features AssemblyStandard
Valve systemDisc valve with valve drive

11089439: frequently asked questions

When can 11089439 be shipped?

11089439 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 11089439 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 11089439 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 11089439, subject to availability and destination.
