Danfoss 11084918

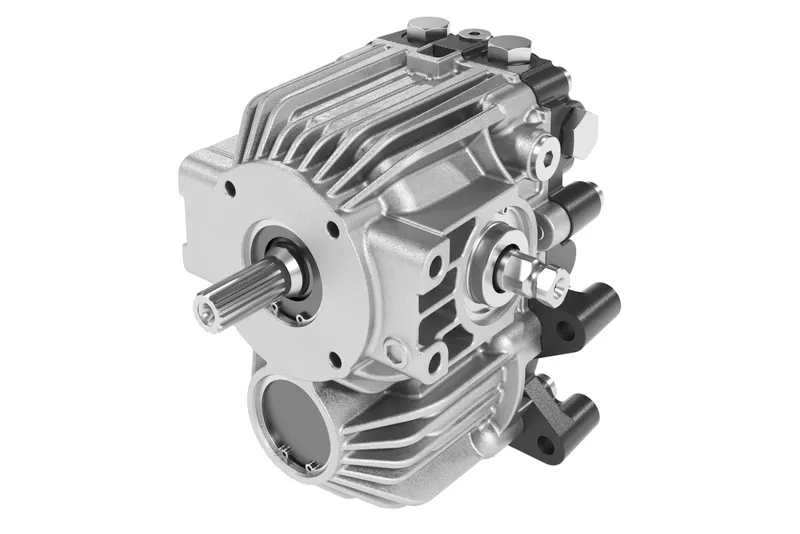

TRANSMISSION LDU 20 U-STYLE CCW

MPN: 11084918
Category: Transmissions

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11084918?

Danfoss TRANSMISSION LDU 20 U-STYLE CCW, manufacturer part number 11084918. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A: Displacement & block type	021 cc/rev displacement at maximum angle, Z-shaft, center sectionmounting
B: Rotation	Counter-clockwise rotation
C: Valve plate pump	CP6.5 0.8 deg index valve plate
D: Control arm position	Right side, from input shaft view
E: Control arm configuration	17mm Square
F: Pump shaft configuration (input shaft/PTO shaft)	JIS 14T (Input) / JIS 14T (PTO)
H: Output shaft configuration	JIS 20x14x1.25
J: Centersection configuration	Drain port : 9.8mm, Charge port : 9.8mm;
K: Charge pump displacement	None
L: CHARGE RELIEF SETTING	Charge Pressure Relief Setting 7 bar
M: BYPASS VALVE	None
N: Check & relief valve (left-hand side viewing from housing)	High Pressure Relief Valve 280 bar [4060 psi]
P: Check & relief valve (right-hand side viewing from housing)	High Pressure Relief Valve 280 bar [4060 psi]
Proposition 65	Cancer and Reproductive Harm
Series	LDU Product
Y: Special hardware feature	Standard
Z: Paint and nametag	No Paint, Danfoss Nametag, Standard Layout
