Danfoss 11062090

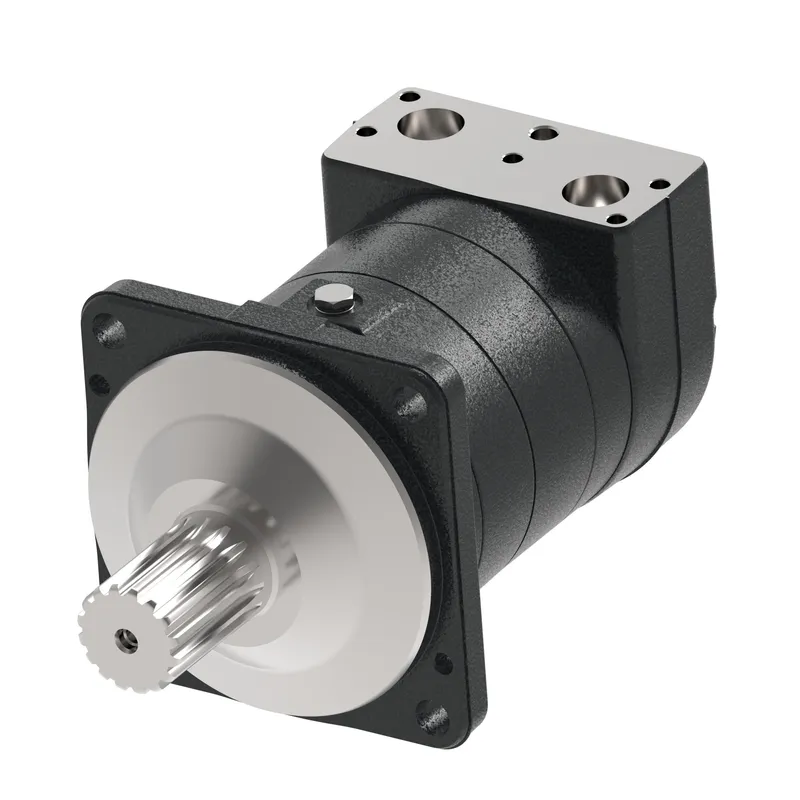

MOTOR-ORBITAL,TMV SERIES 500 [30.5], TMV-0500-A-NN-G35-AF-1E-E26-A-B-1B-0-N-NN-AAE21-NN-NN-NN-SP-NNN

MPN
11062090
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11062090?

Danfoss MOTOR-ORBITAL,TMV SERIES 500 [30.5], TMV-0500-A-NN-G35-AF-1E-E26-A-B-1B-0-N-NN-AAE21-NN-NN-NN-SP-NNN, manufacturer part number 11062090. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Model CodeTMV-0500-A-NN-G35-AF-1E-E26-A-B-1B-0-N-NN-AAE21-NN-NN-NN-SP-NNN
Motor SeriesTMV Series
Valve systemDisc valve with valve drive
Orbital gearwheel set typeGeroler
Motor size500
Geometric displacement [cm3/r [in3/r]]499.6 [30.49]
Motor typeStandard
Motor functionStandard
Mounting flange type4 Bolt - Square
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]180.0 x 9.0, 224.0, 18.0 [7.09 x 0.35, 8.82, 0.71]
Shaft typeSplined
Shaft dimensionDia. 2 1/8 inch, 16T, 3/8 - 16 UNC-2B thread in shaft end
Shaft Keyn/a
Main port thread typeBSP
Main port styleSideport - staggered
Main port dimensionG 1, 5 x M10 block mounting threads
Drain Port DimensionG 1/4
Brake Release Port Dimensionn/a
PaintedYes
Paint informationPainted, Black, Medium gloss
Special Features AssemblyStandard
Dust sealIntegrated in shaft seal
Shaft SealNBR - Standard
Seal Kit11052439
Front bearing typeTapered roller bearing
Rear bearing typeTapered roller bearing
Orbital gearwheel setStandard
Check valve functionNo
Hydraulic valve functionNone
SensorNone
PackagingSingle pack
Name TagDanfoss name tag
Design code00
Proposition 65Cancer and Reproductive Harm
