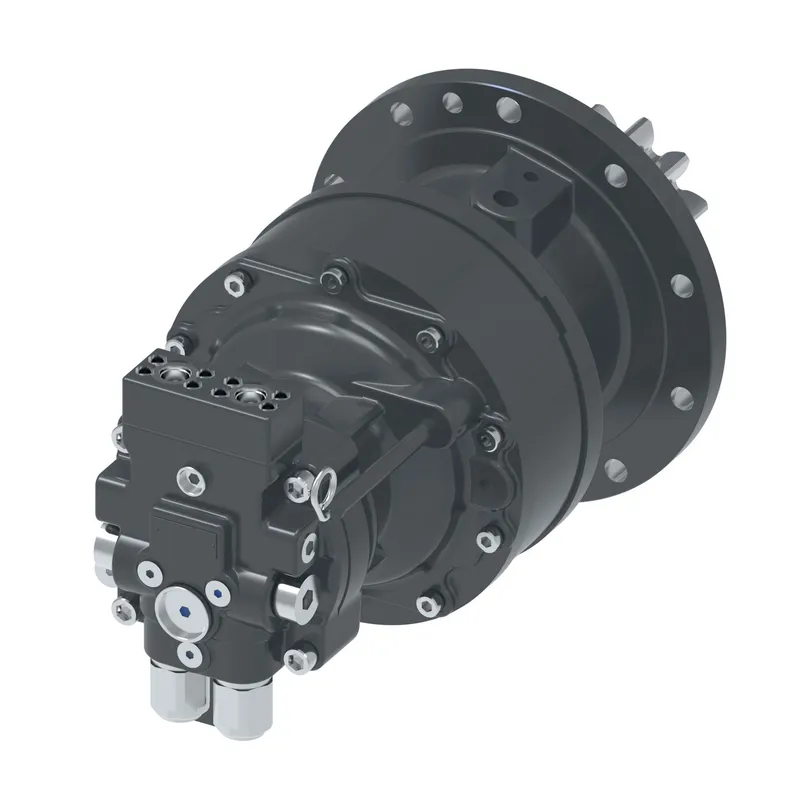

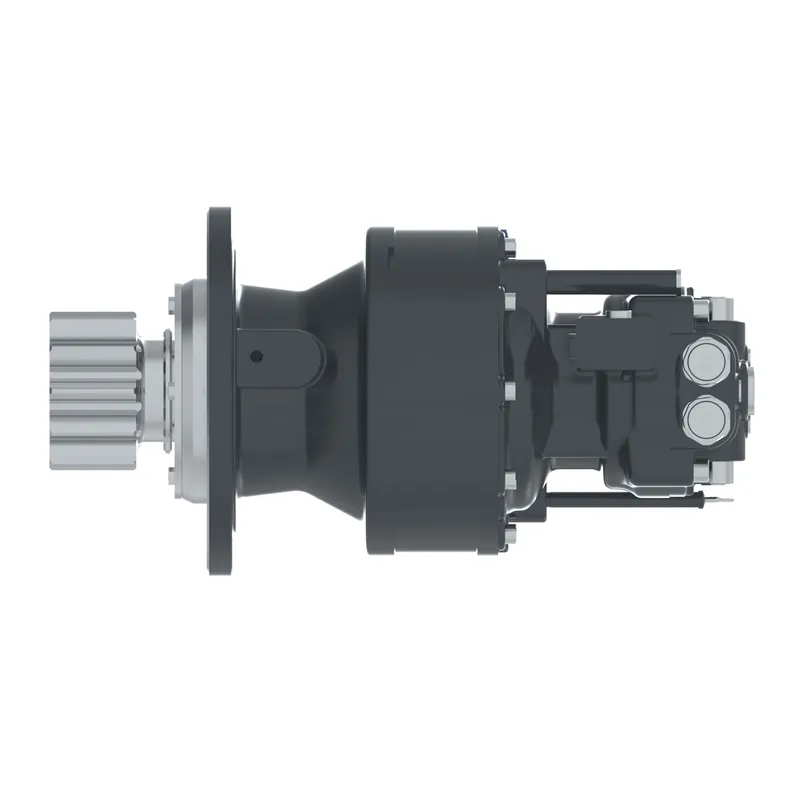

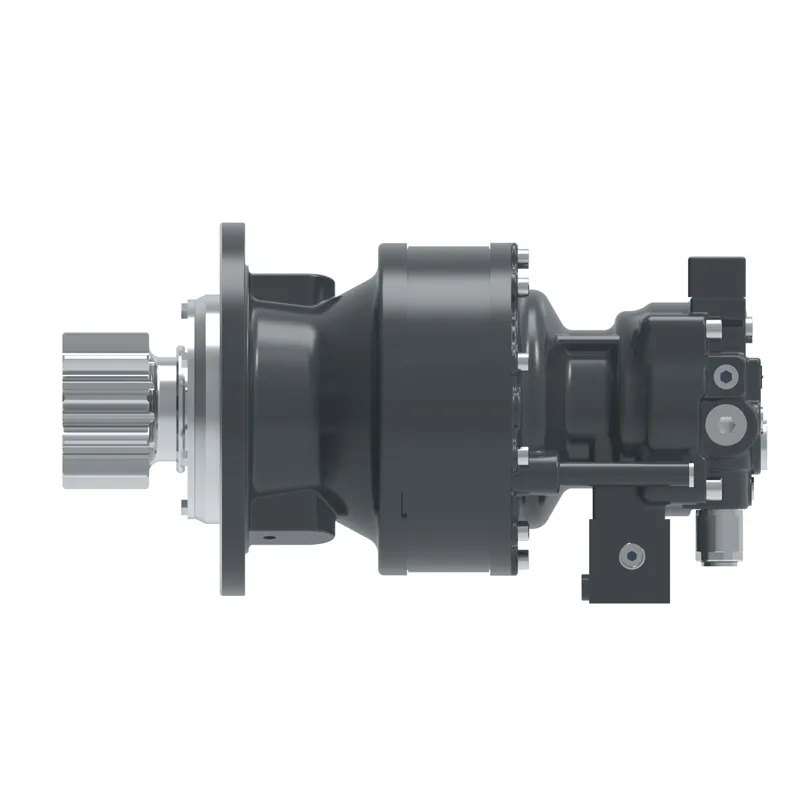

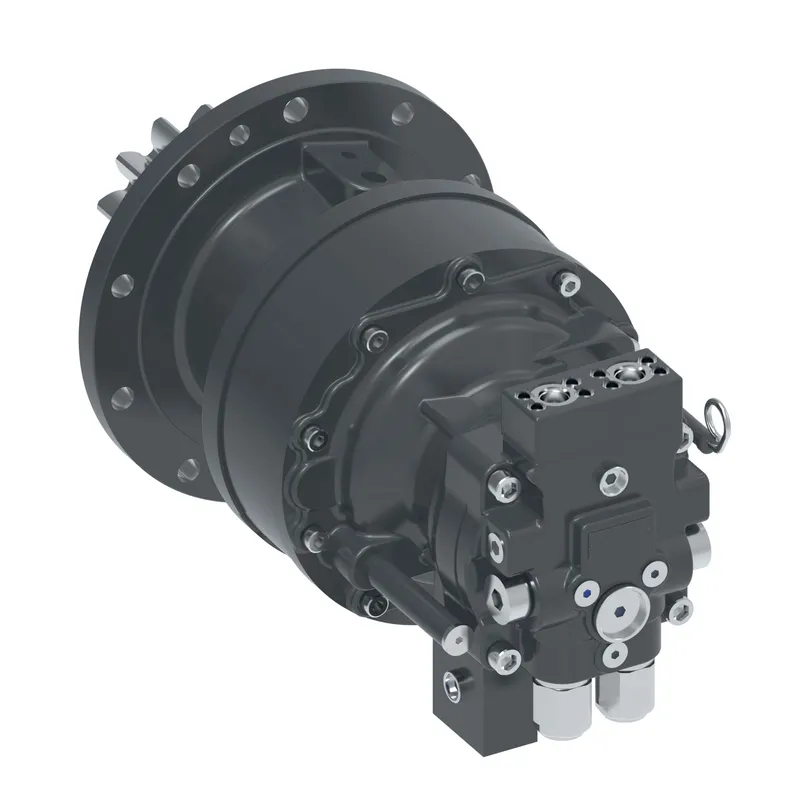

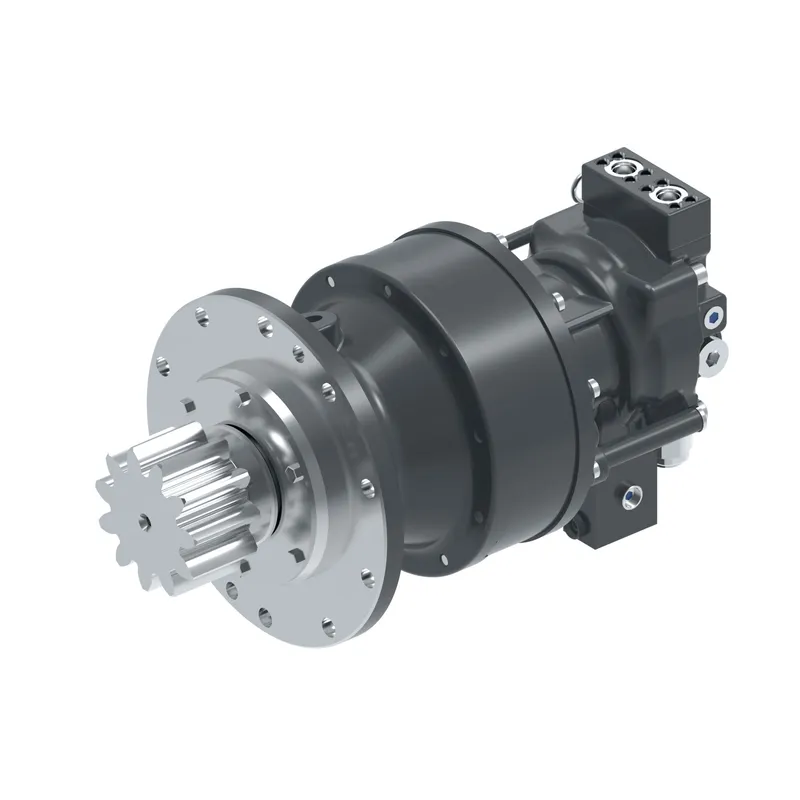

SM H5T(3SAN-01010)DEVICE32.3cc(9s)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Track and swing drive piston motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 11020276201 be shipped?
11020276201 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 11020276201 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 11020276201 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 11020276201, subject to availability and destination.
Danfoss SM H5T(3SAN-01010)DEVICE32.3cc(9s), manufacturer part number 11020276201. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A_B main port size | BSPP 1/2 |
| Anti-reverse valve and setting | Built in |
| Application | Excavator |
| Brand | Danfoss |
| Danfoss swing type | Danfoss Swing Motor |
| Design code | First version |
| Displacement | 32 cm3/r (1.95 in3/r) |
| Flow rate GPM | 9.67 |
| Flow rate lpm | 36.6 |
| Gear ratio | None |
| Gearbox input shaft spec | None |
| Gearbox mounting with vehicle | None |
| Gearbox output shaft spec | None |
| Identification | Standard namplate |
| Maximum output speed RPM | 1133 |
| Motor mounting | Standard |
| Motor shaft spec | Standard |
| Old model code | JMF151RR0404010211704 |
| Output torque LBF-IN | 980.7 |
| Output torque Nm | 110.8 |
| Paint | Primer + yellow |
| Parking brake and setting | Standard |
| Product height in | 8.700 |
| Product height mm | 220.980 |
| Product length in | 8.260 |
| Product length mm | 209.804 |
| Product width in | 10.700 |
| Product width mm | 271.78 |
| Relief valve and setting | 230bar (3335 psi) 40 lpm (10.56 gpm) |
| Special requirement | None |
| Timedelay and setting | 5 bar (72 psi) |
| Working pressure bar | 226.0 |
| Working pressure psi | 3278 |
