Danfoss (Drives)

Danfoss 11020268501

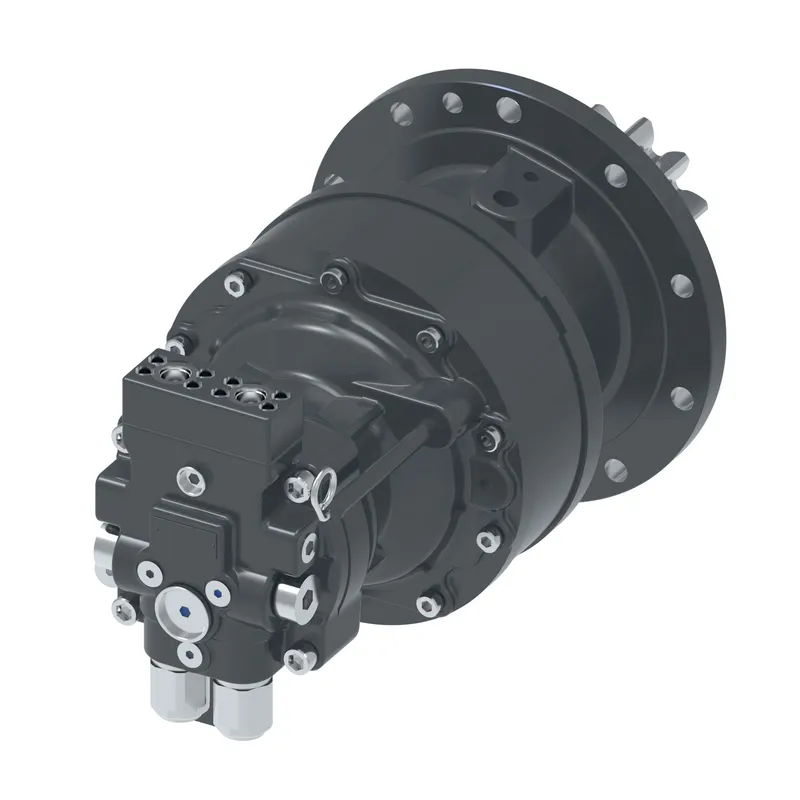

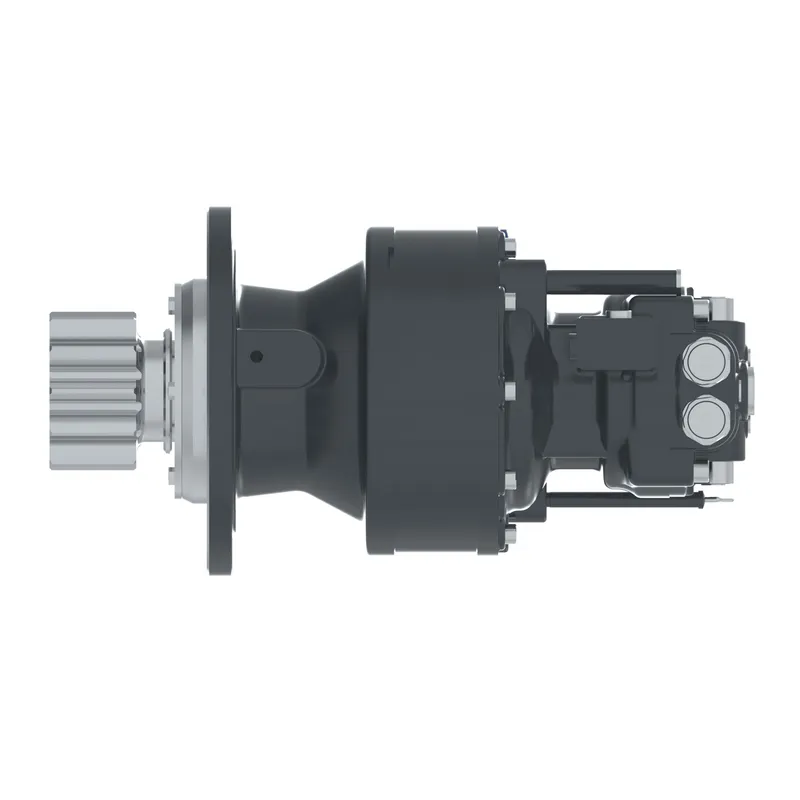

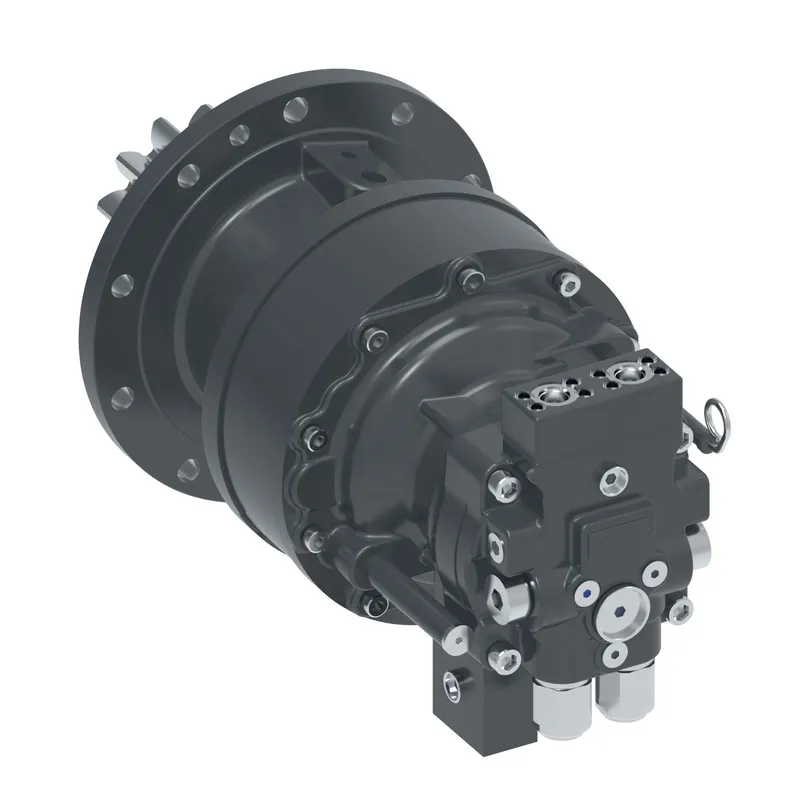

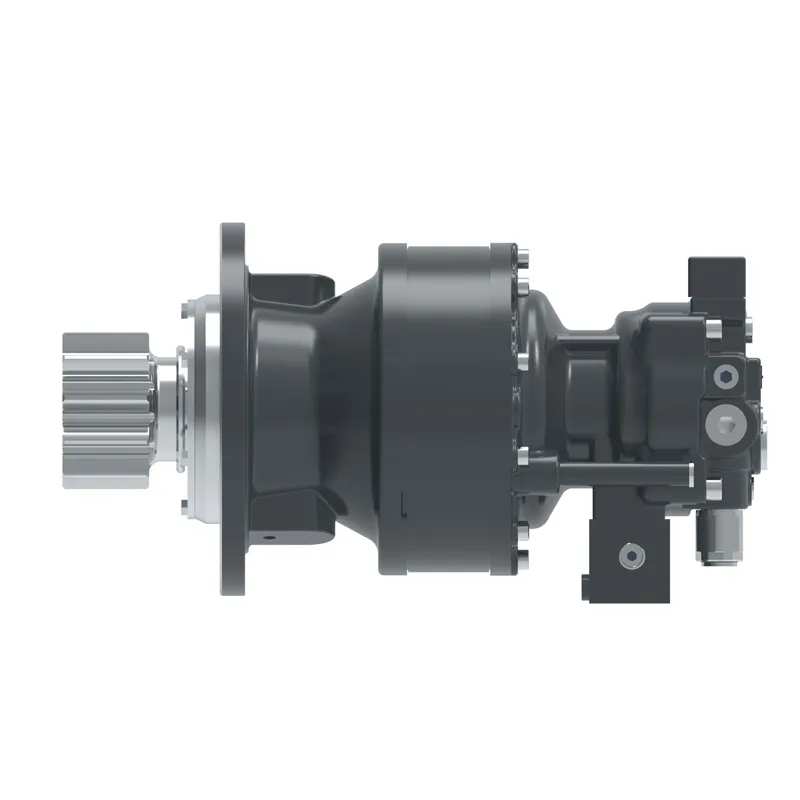

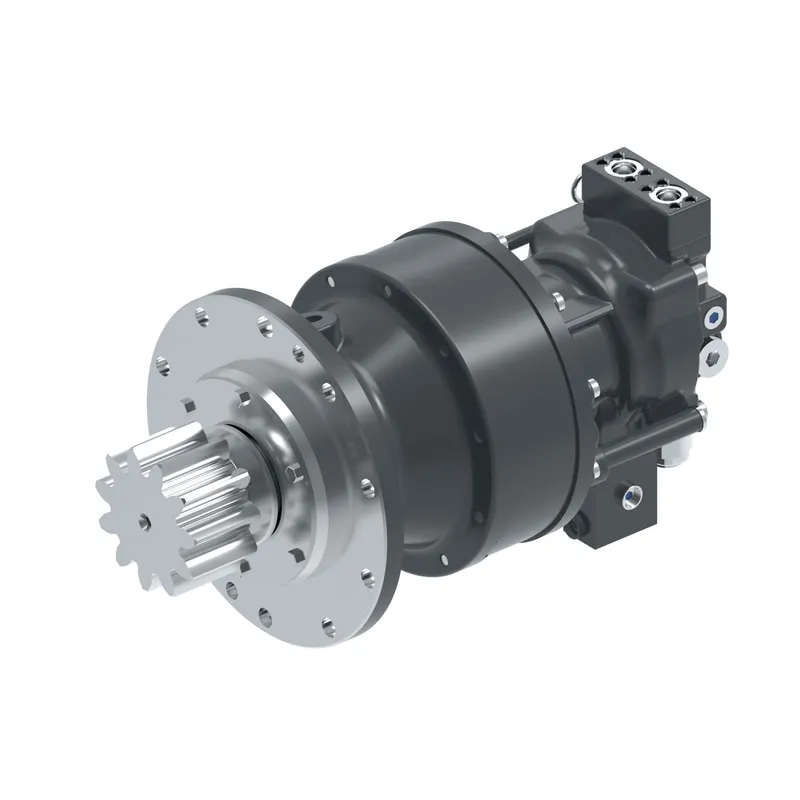

SM CN22T(1510117) DEVICE(JA9F5000-D)

MPN: 11020268501
Category: Track and swing drive piston motors

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11020268501?

Danfoss SM CN22T(1510117) DEVICE(JA9F5000-D), manufacturer part number 11020268501. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A_B main port size	SAE 3/4" 8-M10
Anti-reverse valve and setting	Built in
Application	Excavator
Brand	Danfoss
Danfoss swing type	Danfoss Swing Motor
Design code	First version
Displacement	151 cm3/r (9.21 in3/r)
Flow rate GPM	58.12
Flow rate lpm	220.0
Gear ratio	17.6 two stage
Gearbox input shaft spec	None
Identification	Standard namplate
Maximum output speed RPM	83
Motor mounting	Standard
Motor shaft spec	Standard
Old model code	JMF151RR0404010211700A00A
Output torque LBF-IN	88294.6
Output torque Nm	9976.0
Paint	Primer + yellow
Parking brake and setting	Standard
Product height in	364.000
Product height mm	9245.600
Product length in	581.000
Product length mm	14757.400
Product width in	364.000
Product width mm	9245.6
Relief valve and setting	240bar (3480 psi) 30 lpm (7.92 gpm)
Special requirement	None
Timedelay and setting	5 bar (72 psi)
Working pressure bar	235.0
Working pressure psi	3408
