Danfoss 11020179101

MPN: 11020179101
Category: Track and swing drive piston motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11020179101?

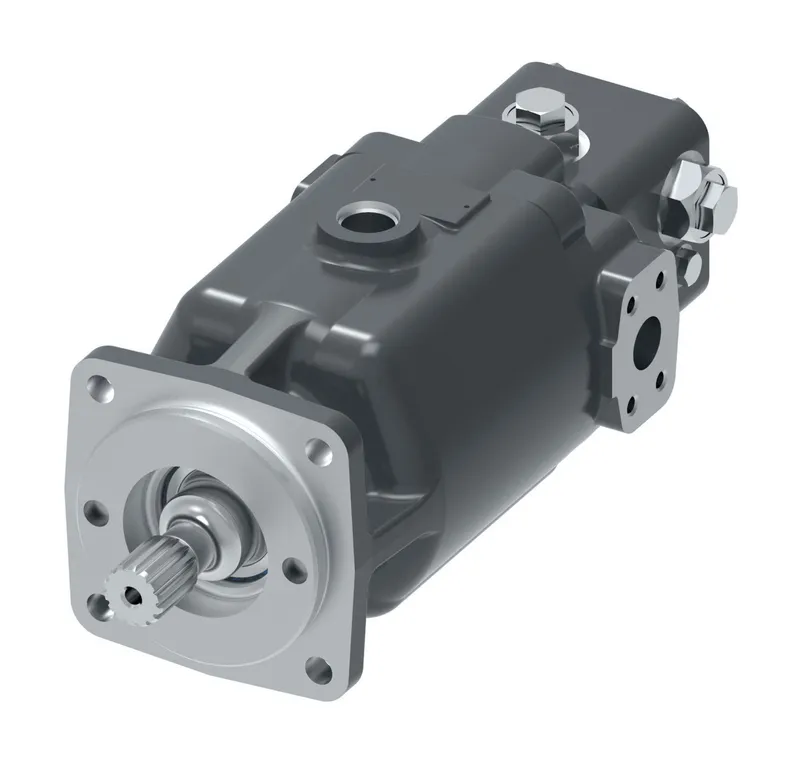

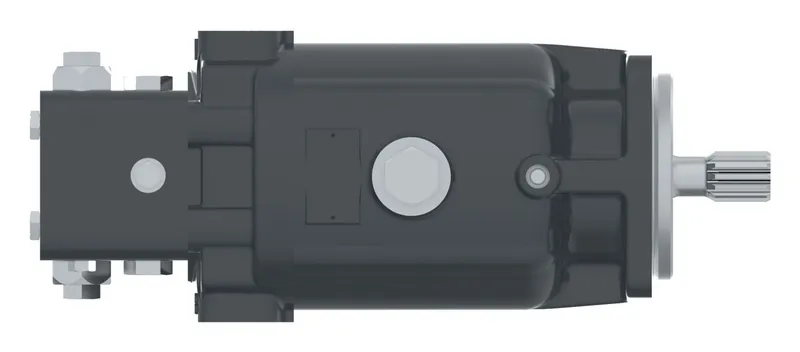

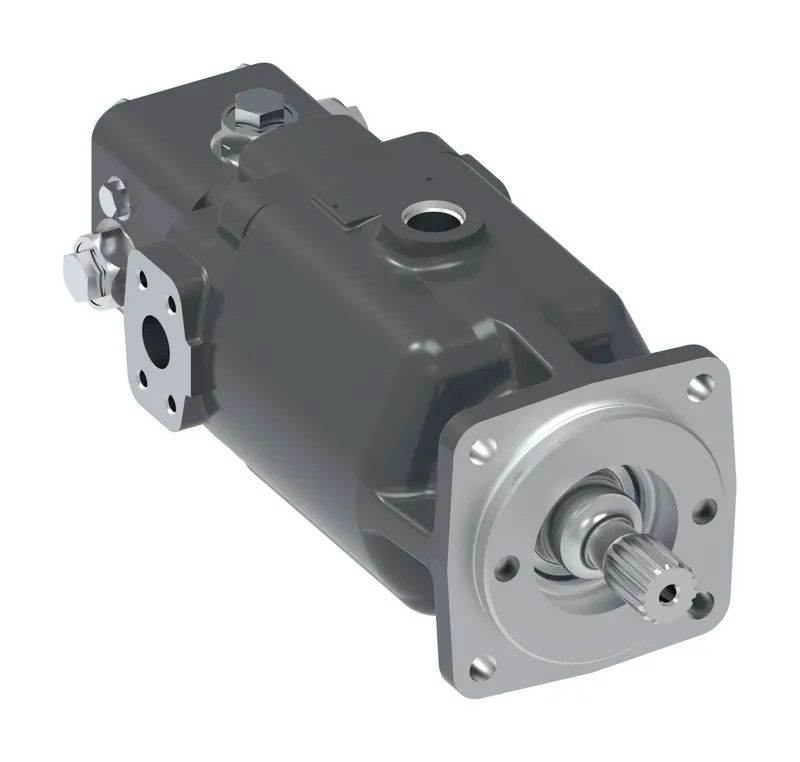

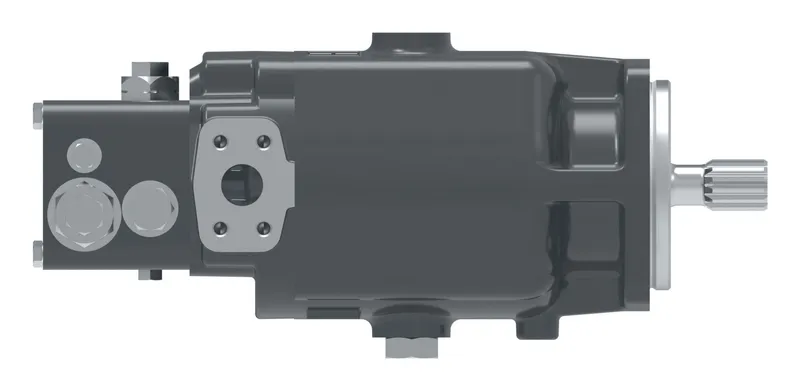

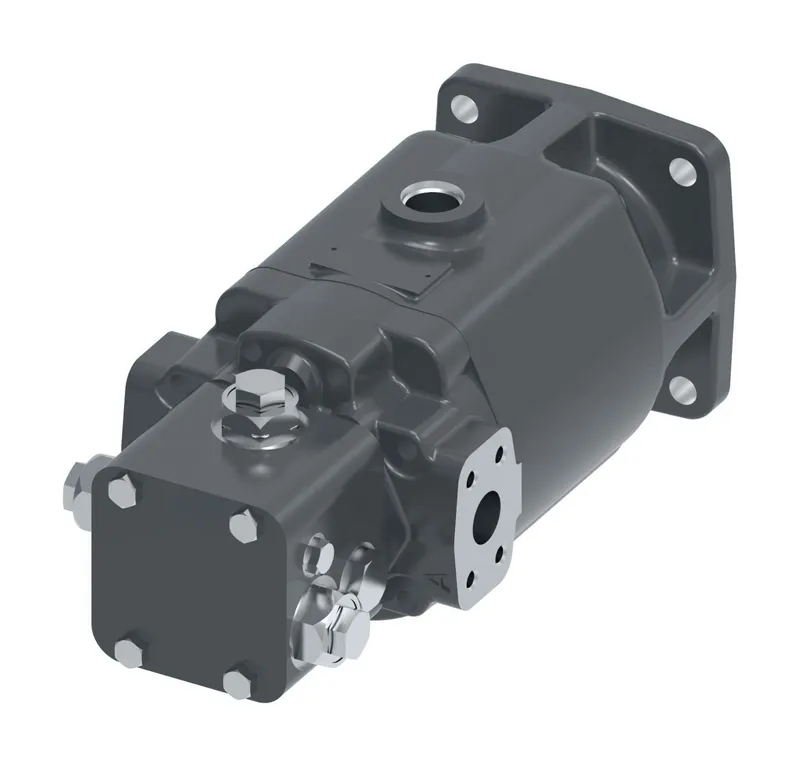

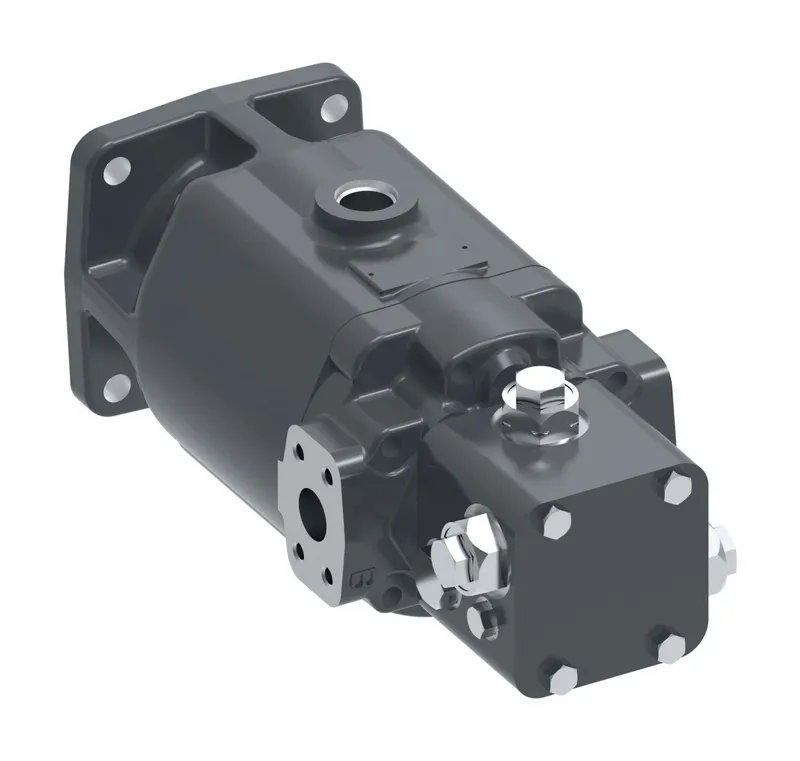

Danfoss SM H29T(31N8-10270), manufacturer part number 11020179101. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A_B main port size	SAE 3/4" 8-M10
Anti-reverse valve and setting	Built in
Application	Excavator
Brand	Danfoss
Danfoss swing type	Danfoss Swing Motor
Design code	First version
Displacement	169 cm3/r (10.31 in3/r)
Flow rate GPM	66.57
Flow rate lpm	252.0
Gear ratio	None
Gearbox input shaft spec	None
Gearbox mounting with vehicle	None
Gearbox output shaft spec	None
Maximum output speed RPM	1488
Motor mounting	Standard
Motor shaft spec	Standard
Old model code	JMF169PS0406010110000A00A
Output torque LBF-IN	7019.5
Output torque Nm	793.1
Parking brake and setting	Standard
Product height in	14.300
Product height mm	363.220
Product length in	22.800
Product length mm	579.120
Product width in	14.300
Product width mm	363.22
Relief valve and setting	300bar (4351 psi) 60 lpm (15.85 gpm)
Special requirement	None
Timedelay and setting	9 bar (130 psi)
Working pressure bar	294.0
Working pressure psi	4264

11020179101: frequently asked questions

When can 11020179101 be shipped?

11020179101 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 11020179101 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 11020179101 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 11020179101, subject to availability and destination.
