Danfoss (Drives)

Danfoss 11020005701

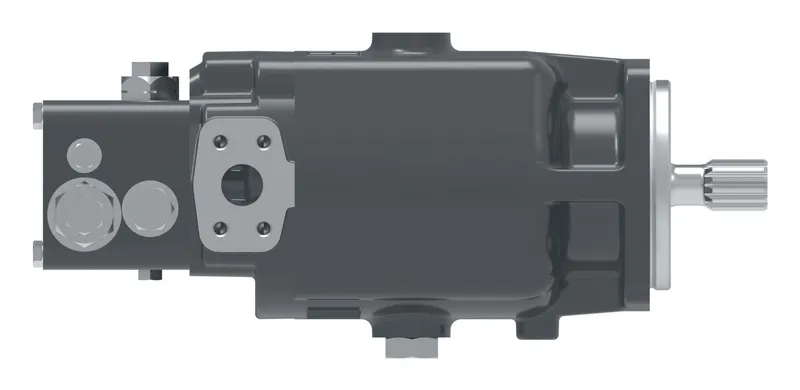

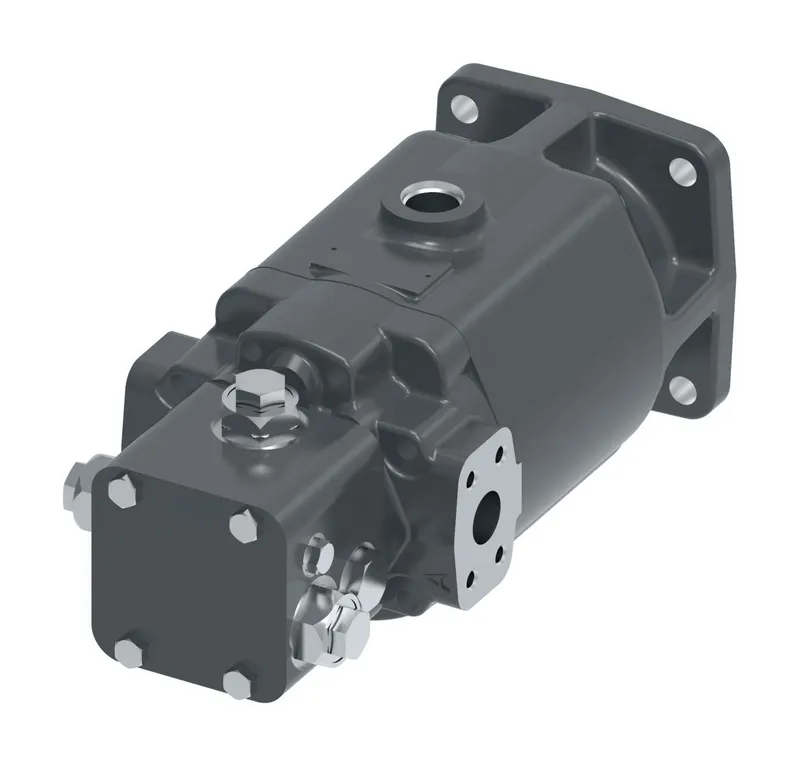

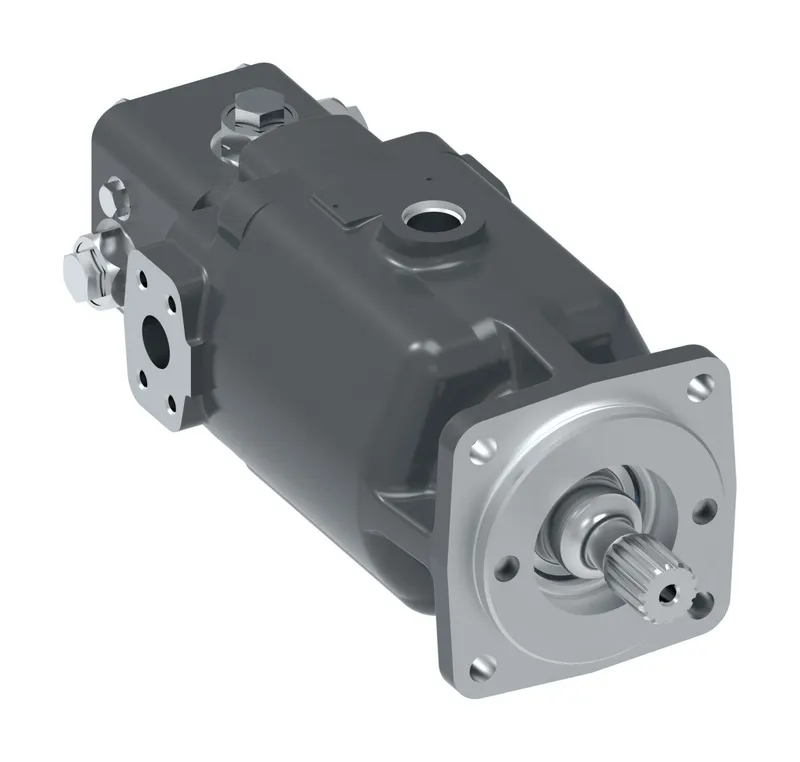

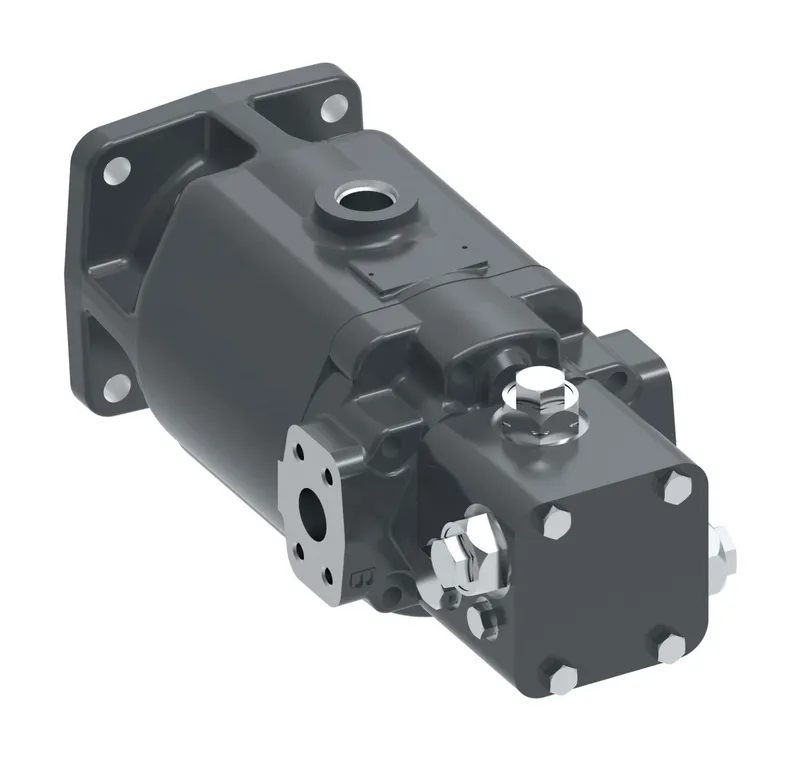

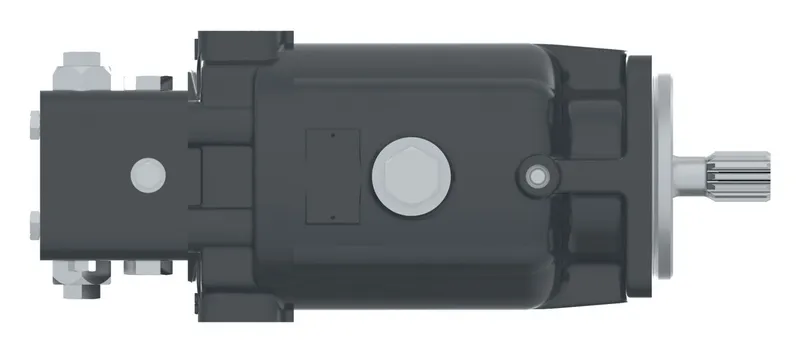

SM YANASE 330(2S)

MPN: 11020005701
Category: Track and swing drive piston motors

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11020005701?

Danfoss SM YANASE 330(2S), manufacturer part number 11020005701. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A_B main port size	SAE 1" 8-M12
Anti-reverse valve and setting	None
Application	Excavator
Brand	Danfoss
Danfoss swing type	Danfoss Swing Motor
Design code	First version
Displacement	250 cm3/r (15.25 in3/r)
Flow rate GPM	76.61
Flow rate lpm	290.0
Gear ratio	None
Gearbox input shaft spec	None
Gearbox mounting with vehicle	None
Gearbox output shaft spec	None
Identification	Standard namplate
Maximum output speed RPM	1160
Motor mounting	Standard
Motor shaft spec	Standard
Old model code	JMF250PS
Output torque LBF-IN	8635.6
Output torque Nm	975.7
Paint	Primer + yellow
Parking brake and setting	Standard
Product height in	306.000
Product height mm	7772.400
Product length in	391.000
Product length mm	9931.400
Product width in	306.000
Product width mm	7772.4
Relief valve and setting	280bar (4061 psi) 40 lpm (10.56 gpm)
Special requirement	None
Timedelay and setting	13 bar (188 psi)
Working pressure bar	275.0
Working pressure psi	3989
