Danfoss 11010269501

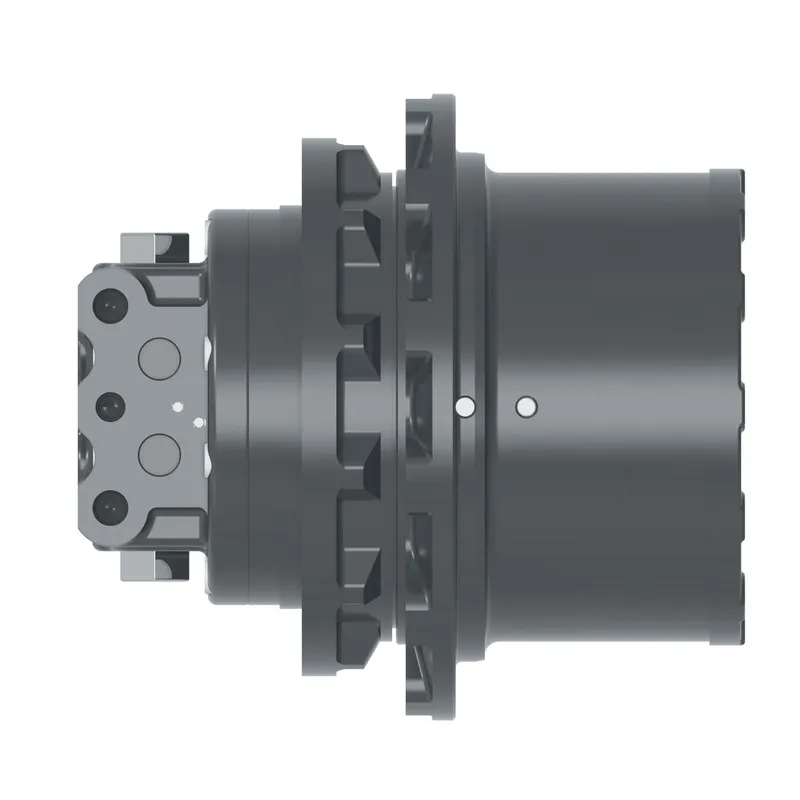

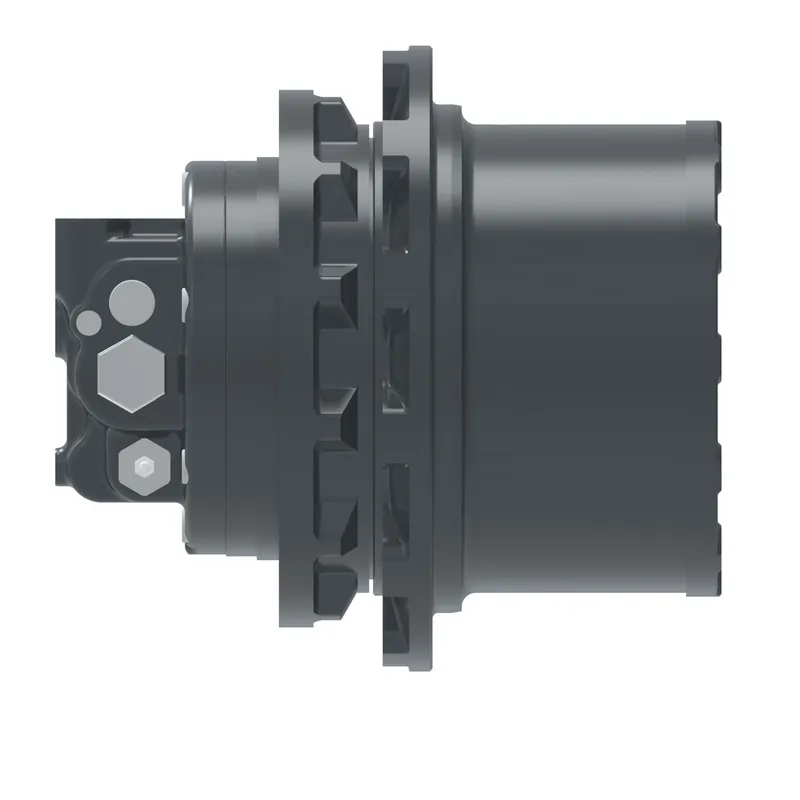

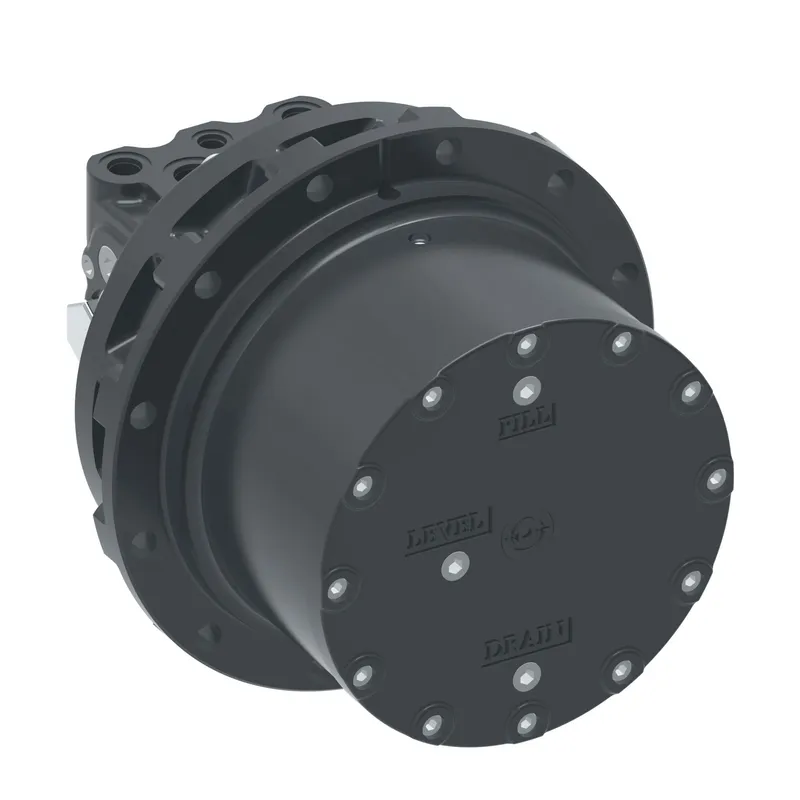

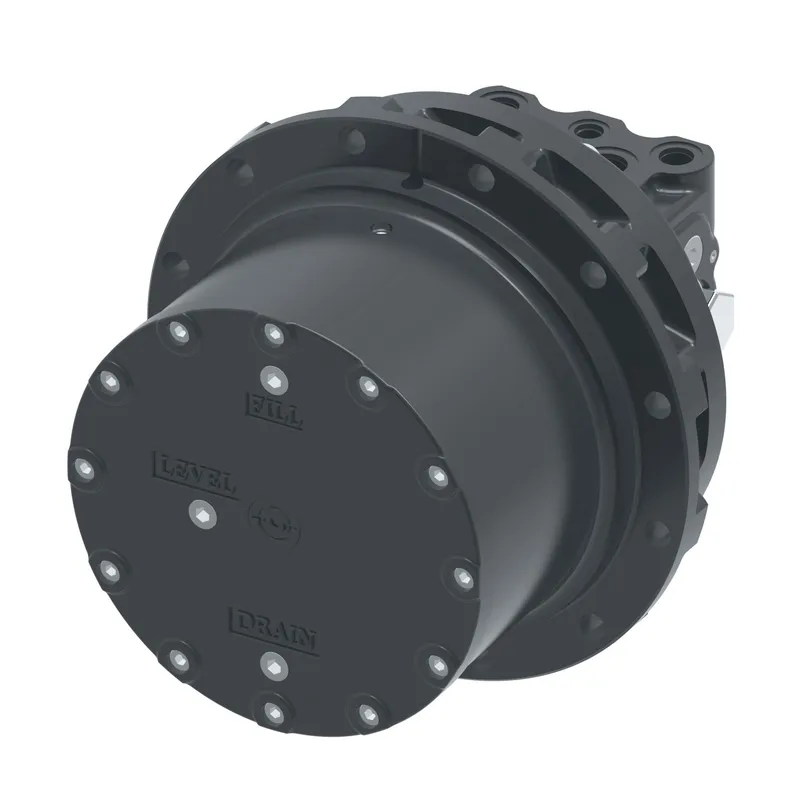

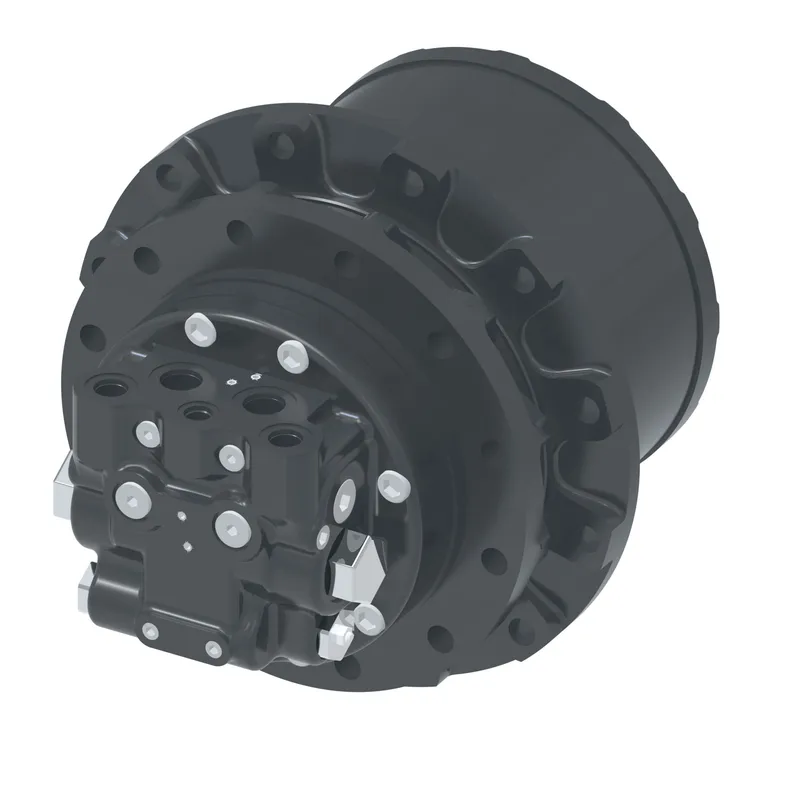

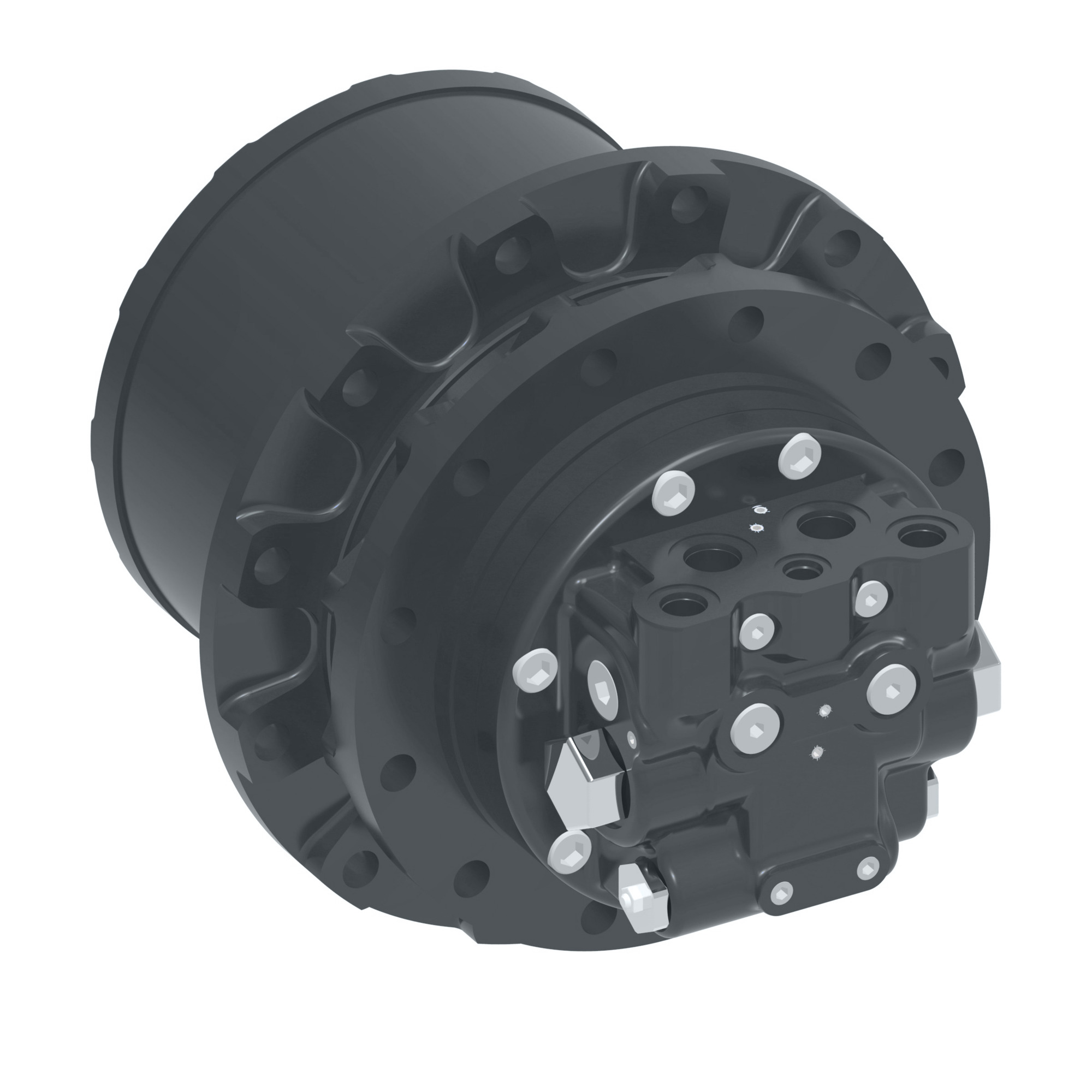

TM CN25TDEVICE(HCE1681020251)TCN

MPN: 11010269501
Category: Track and swing drive piston motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11010269501?

Danfoss TM CN25TDEVICE(HCE1681020251)TCN, manufacturer part number 11010269501. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A B main port size	BSPP 1
Anti cavitation	None
Application	Excavator
Brand	Danfoss
Danfoss track type	Danfoss Track Device (motor+gear box)
Design code	First version
Device mounting	Standard
Displacement (1st 2nd)	168.4 102.5 cm3/r (10.28 6.25 in3/r)
Flow rate GPM	65.33
Flow rate lpm	247.3
Gear ratio	50.5 two stage
Gearbox mounting	Standard
Identification	Standard nameplate (Danfoss)
Maximum output speed RPM	2413
Motor mounting	Standard
Motor shaft	Standard
Old model code	JMV168RR080603015100A00A
Output torque LBF-IN	411246.0
Output torque Nm	46464.8
Paint	Standard: black
Parking brake setting	10.8 bar (156 psi)
Product height in	17.300
Product height mm	439.420
Product length in	20.200
Product length mm	513.080
Product width in	17.300
Product width mm	439.42
Relief valve setting	343bar (4978psi) 40lpm (10.6gp
Special requirement	None
Two speed setting	245bar (3556psi) pilot 34bar (498psi)
Working pressure bar	350.0
Working pressure psi	5076
