Home / Danfoss (Drives) / MOTOR-ORBITAL,TMK SERIES 315 [19.2], TMK-0315-E-BA-G30-AV-2E-G27-A-A-2B-0-B-NN-AAE19-NN-NN-NN-SP-NNN

Available on request

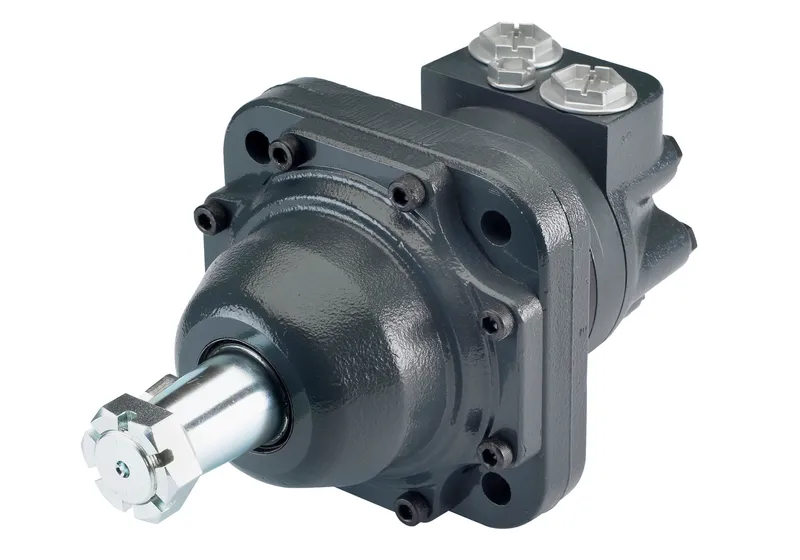

MOTOR-ORBITAL,TMK SERIES 315 [19.2], TMK-0315-E-BA-G30-AV-2E-G27-A-A-2B-0-B-NN-AAE19-NN-NN-NN-SP-NNN

Name: MOTOR-ORBITAL,TMK SERIES 315 [19.2], TMK-0315-E-BA-G30-AV-2E-G27-A-A-2B-0-B-NN-AAE19-NN-NN-NN-SP-NNN
Brand: Danfoss (Drives)
SKU: 11008906

MPN: 11008906 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Orbitron motors
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 11008906 be shipped?

11008906 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 11008906 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 11008906 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 11008906, subject to availability and destination.

Danfoss MOTOR-ORBITAL,TMK SERIES 315 [19.2], TMK-0315-E-BA-G30-AV-2E-G27-A-A-2B-0-B-NN-AAE19-NN-NN-NN-SP-NNN, manufacturer part number 11008906. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brake Release Port Dimension	7/16 - 20 UNF-2B SAE O-Ring Port
Check valve function	No
Design code	00
Drain Port Dimension	7/16-20 UNF-2B O-Ring port
Dust seal	Standard
Front bearing type	Tapered roller bearing
Geometric displacement [cm3/r [in3/r]]	315.3 [19.23]
Hydraulic valve function	None
Main port dimension	1 1/16 - 12 UN-2B SAE O-Ring port,
Main port style	Sideport - staggered
Main port thread type	UN / UNF
Model Code	TMK-0315-E-BA-G30-AV-2E-G27-A-A-2B-0-B-NN-AAE19-NN-NN-NN-SP-NNN
Motor function	Brake - Low release pressure
Motor Series	TMK Series
Motor size	315
Motor type	Motor - Brake
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	140.0 x 11.0, 161.9, 14.4 [5.51 x 0.43, 6.37, 0.57]
Mounting flange type	4 Bolt - Square
Name Tag	Danfoss name tag
Orbital gearwheel set	Standard
Orbital gearwheel set type	Geroler
Packaging	Single pack
Paint information	Painted, Black, Medium gloss
Painted	Yes
Proposition 65	Cancer and Reproductive Harm
Rear bearing type	Tapered roller bearing
Seal Kit	151F0142
Sensor	None
Shaft dimension	Dia. 1 1/2 inch, 1:8 SAE J501, 1 - 20 UNEF-2A thread in shaft end
Shaft Key	Square key, 3/8 x 1 inch, B.S. 46
Shaft Seal	NBR - Standard
Shaft type	TAPERED
Special Features Assembly	Standard
Valve system	Disc valve with valve drive
