Danfoss 110-1264-006

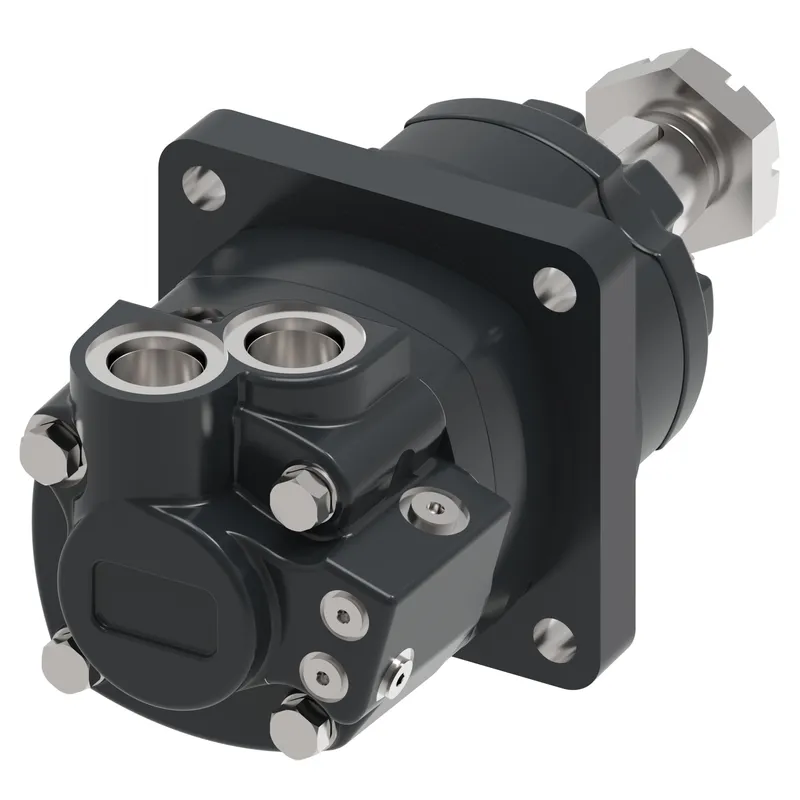

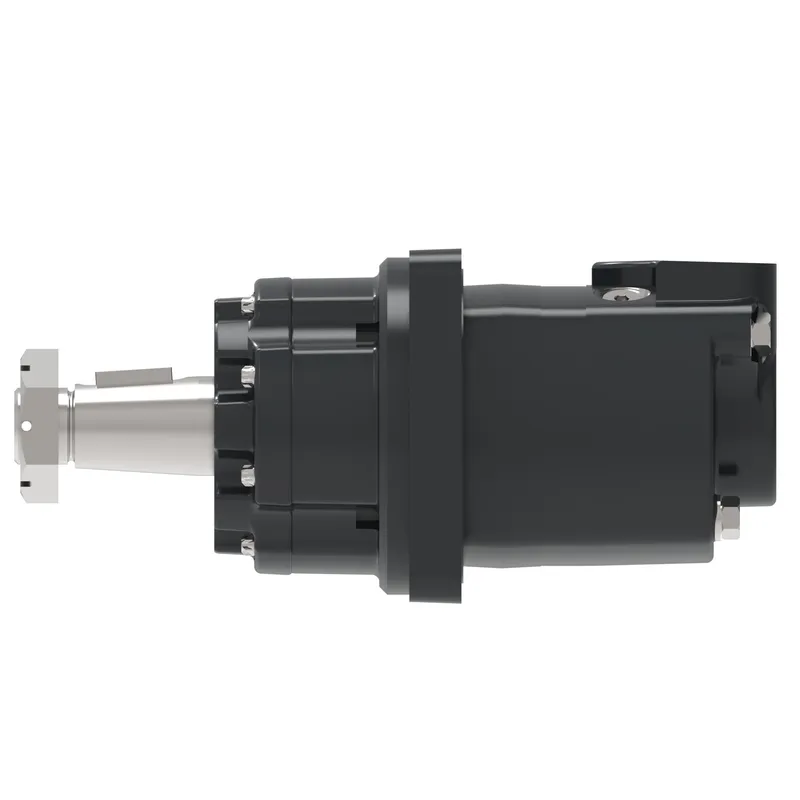

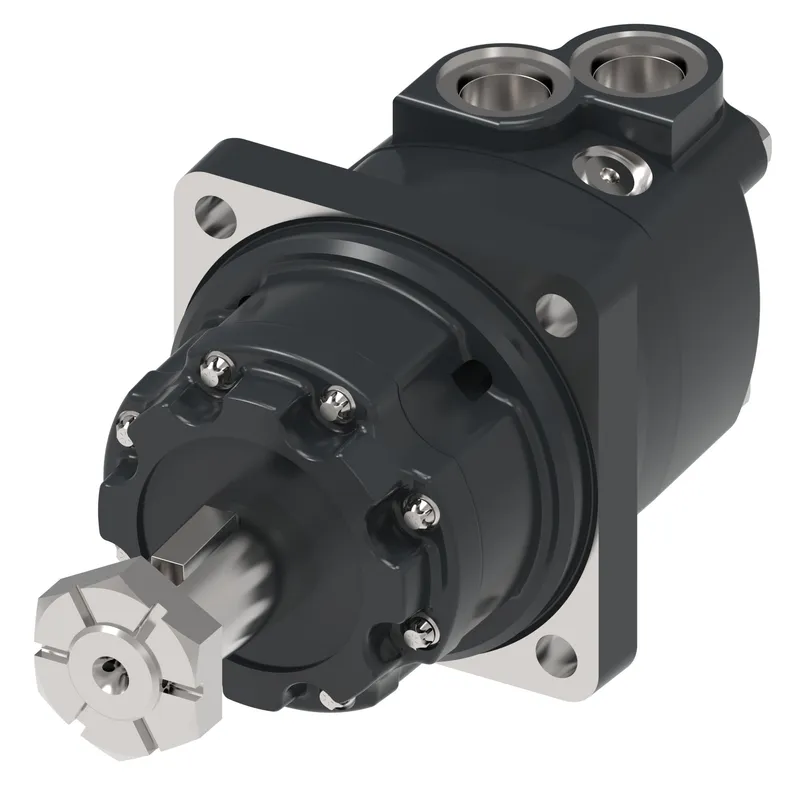

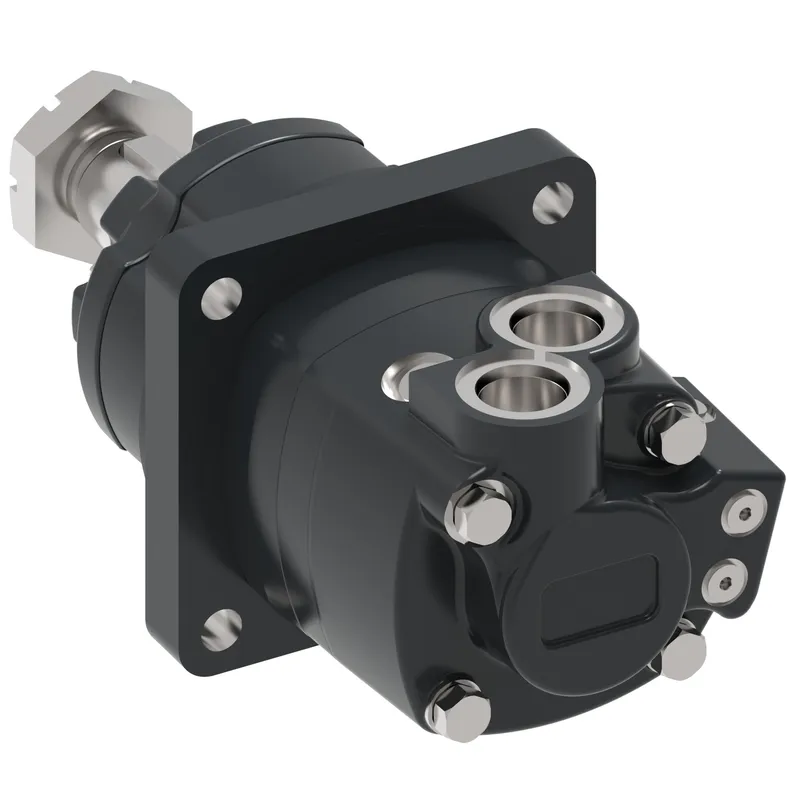

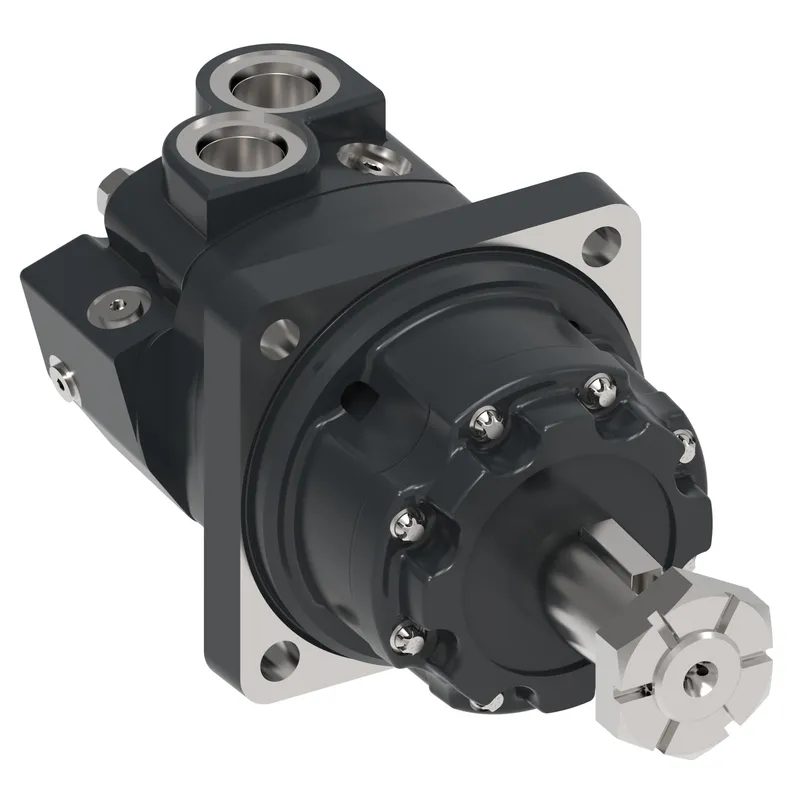

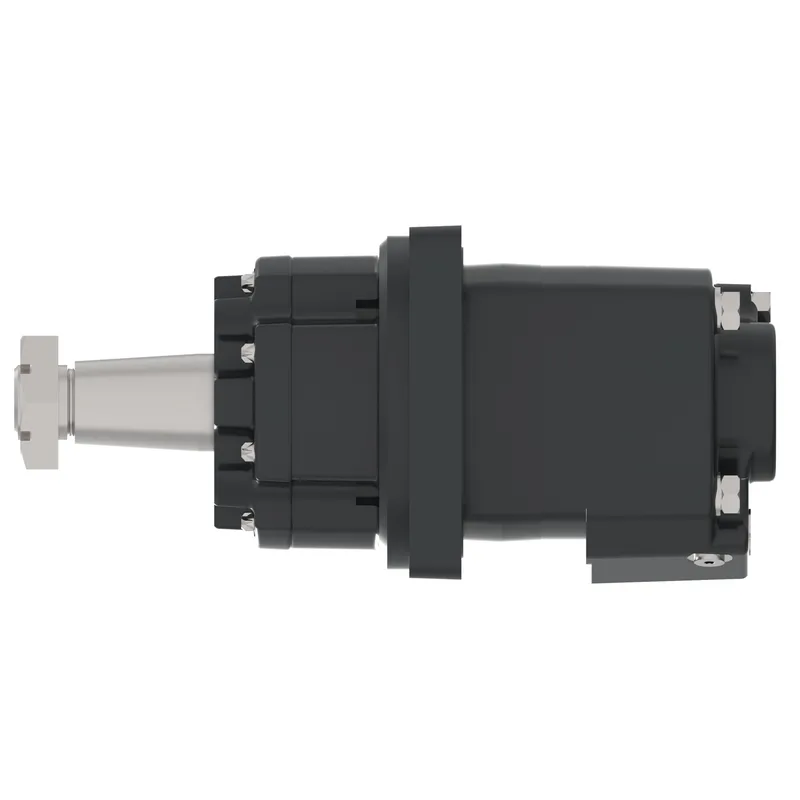

MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AC02AB0200000AG00000000F

MPN: 110-1264-006
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 110-1264-006?

Danfoss MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AC02AB0200000AG00000000F, manufacturer part number 110-1264-006. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	M04150AC02AB0200000AG00000000F
Motor Series	4000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Mounting type	4 W P140 B165 H14
Motor size	245
Geometric displacement [cm3/r [in3/r]]	246.3 [15.03]
Motor type	Wheel
Motor function	Standard
Mounting flange type	4 Bolt - Wheel
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	139.7 x 9.1, 165.1, 14.3 [5.50 x 0.36, 6.50, 0.56]
Shaft dimension	Dia. 1 5/8 inch, 1:8, 1 1/4 - 18 UNEF-2A thread in shaft end
Shaft Key	Square key, 7/16 x 1 1/4 inch
Main port thread type	UN / UNF
Main port style	Sideport - staggered
Main port dimension	1 1/16 - 12 UN-2B SAE O-Ring port
Drain Port Dimension	7/16 - 20 UNF-2B SAE O-Ring port
Brake Release Port Dimension	n/a
Painted	No
Paint information	n/a
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	NBR - Standard
Seal Kit	61232-000
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Orbital gearwheel set	Standard
Check valve function	Yes
Hydraulic valve function	None
Sensor	Speed sensor ready, 36 pulses
Packaging	Single pack
Name Tag	Danfoss name tag
Design code	06
Brand	Danfoss
Low pressure relief	None
Seal options	Standard
Series	4000 series
Sub brand	Char-Lynn
