HOSE FTG, 1Z/10, ORS-F/10, -S, 45D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 10Z-L70-060BX be shipped?
10Z-L70-060BX is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 10Z-L70-060BX in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 10Z-L70-060BX and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 10Z-L70-060BX, subject to availability and destination.
Danfoss HOSE FTG, 1Z/10, ORS-F/10, -S, 45D, manufacturer part number 10Z-L70-060BX. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 639789329110 |
| A dimension IN | 3.180 |
| A dimension MM | 80.900 |
| Angle shape | 45 Degree |
| Compatible hose ID IN | 0.620 |
| Compatible hose ID MM | 15.900 |
| Compatible hoses | H881 |
| Construction Style | Crimp |
| Drop dimension IN | 0.650 |
| Drop dimension MM | 16.5 |
| End connection torque | 46-50 lb-ft(62-68 Nm) |
| End size 1 | -10 |
| End type 1 | Female ORFS swivel |
| Finish plating | Dura-Kote |
| Hex size 1 MM | 28.0 |
| Hose cut off factor IN | 2.020 |
| Hose cut off factor MM | 51.300 |
| Hose size | -10 |
| Inside diameter IN | 0.440 |
| Inside diameter MM | 11.100 |
| Product height in | 0.620 |
| Product height mm | 16.500 |
| Product material | Carbon steel |
| Series | 1A/Z Series |
| Thread sealant | No |
| Thread size 1 | 1-14 UNS |
| Working pressure max BAR | 552 |
| Working pressure max PSI | 8100 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
More Danfoss (Drives) parts
Available on requestFtng (perm), ORS 90 DEG, FEM SWIVEL

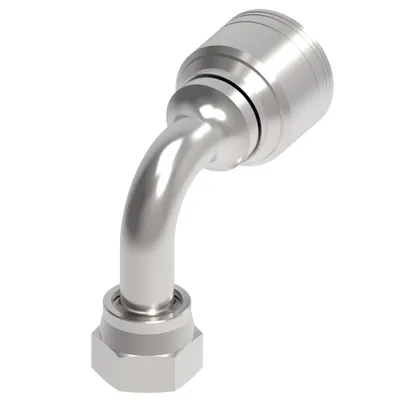

Available on requestFtng (perm), ORS
Available on requestHose End (perm) SAE 38 30 DEG, FEM SWVL

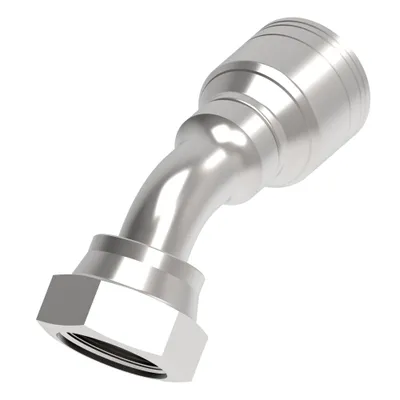

Available on requestHose End (perm) 1S/1R 45 D F. ORS SWVL

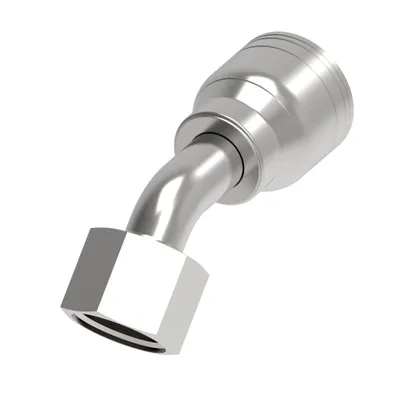

Available on requestHose End (perm) 1S/1R
