Danfoss 10Z-A32

Hose End (perm) 1S/1R 90 D F. ORS SWVL

MPN: 10Z-A32
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 10Z-A32?

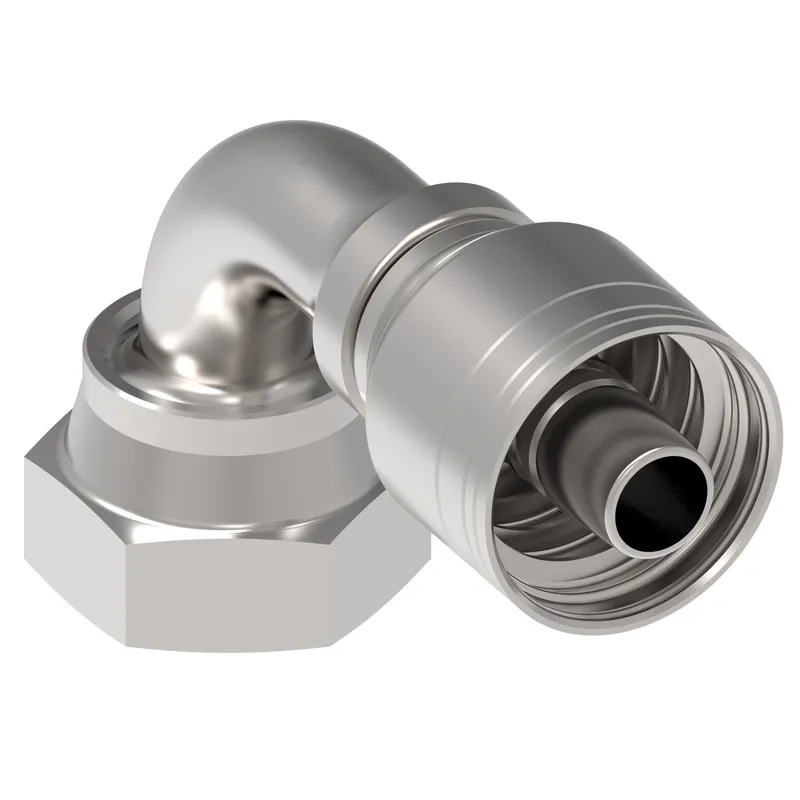

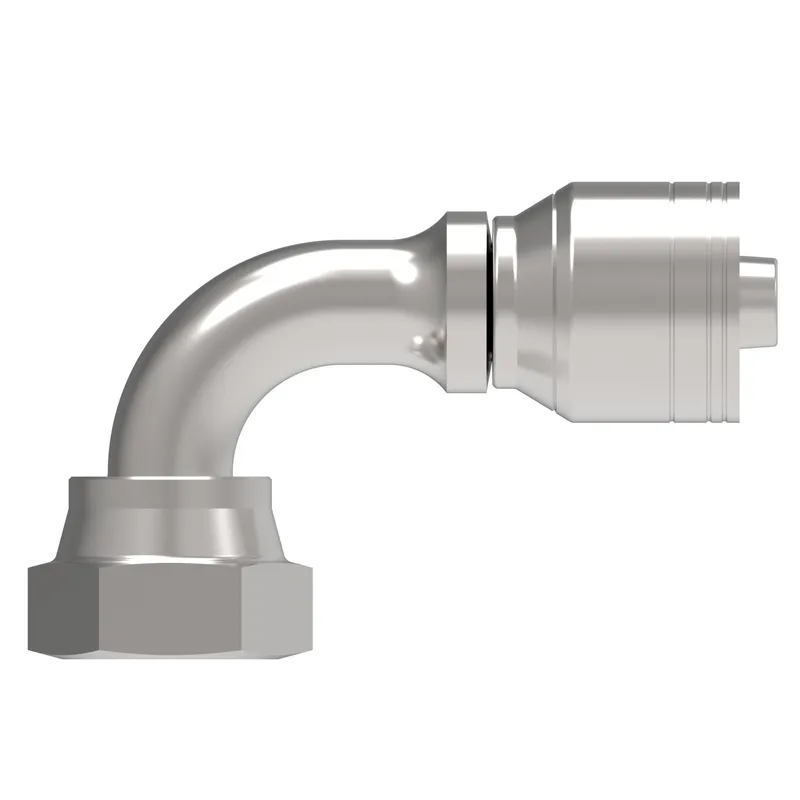

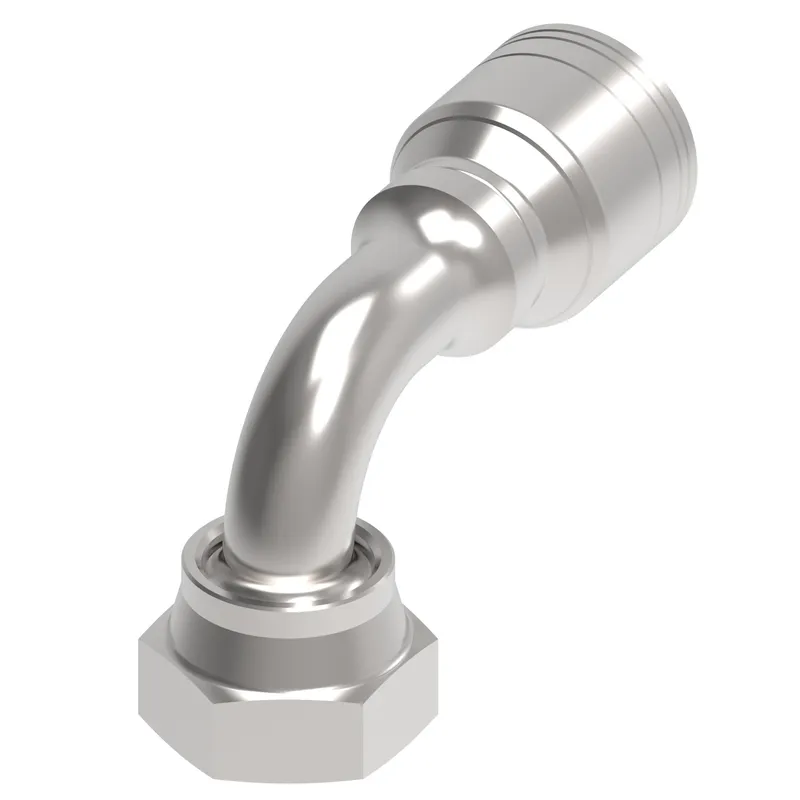

Danfoss Hose End (perm) 1S/1R 90 D F. ORS SWVL, manufacturer part number 10Z-A32. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789291837
Angle shape	90 Degree
Brand	Weatherhead by Danfoss
Compatible hose ID IN	0.630
Compatible hose ID MM	16.002
Compatible tube OD IN	0.75
Compatible tube OD MM	19.050
Compliances	SAE J1176
Construction Style	Crimp
Drop dimension IN	1.880
Drop dimension MM	47.8
End size 1	-14
End type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.380
Hex size 1 MM	35.1
Hose cut off factor IN	2.290
Hose cut off factor MM	58.166
Hose size	-10
Inside diameter IN	0.500
Inside diameter MM	12.700
Product material	Carbon steel
Thread sealant	No
Tube OD 1 IN	0.750
Tube OD 1 MM	19.050
