Danfoss 10K41BS192

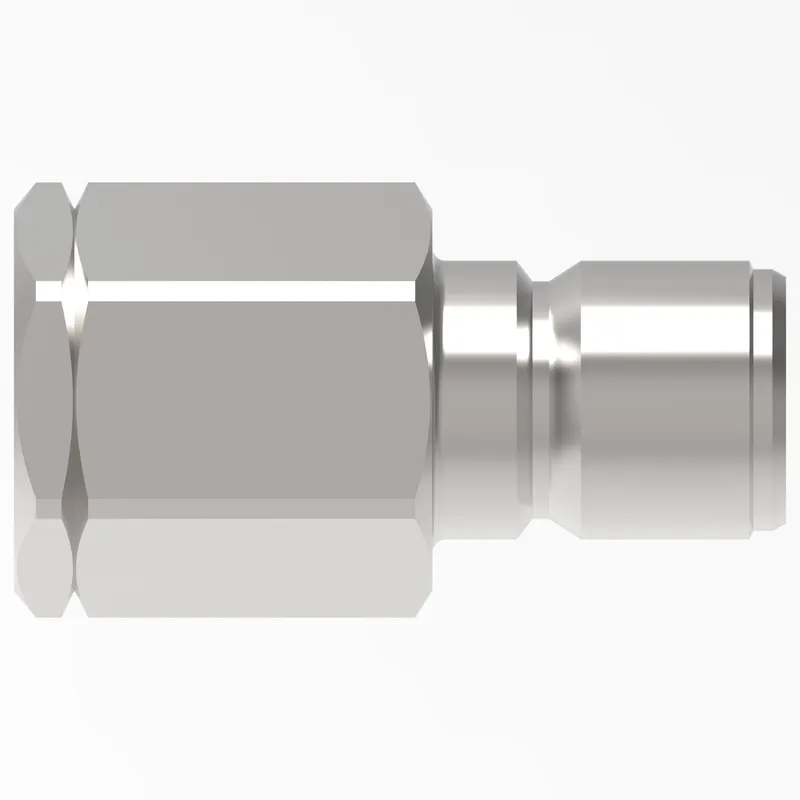

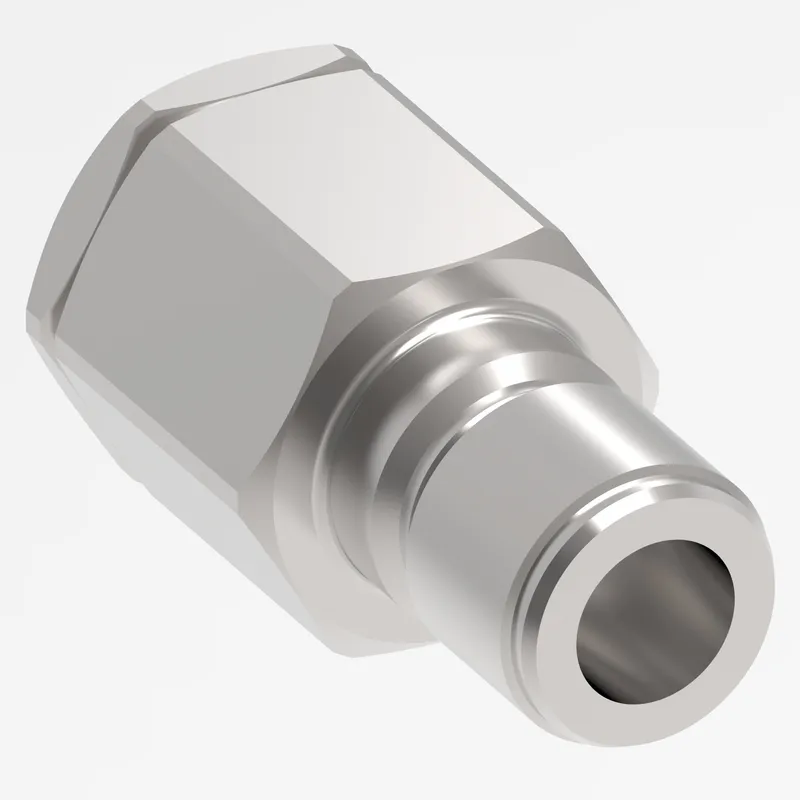

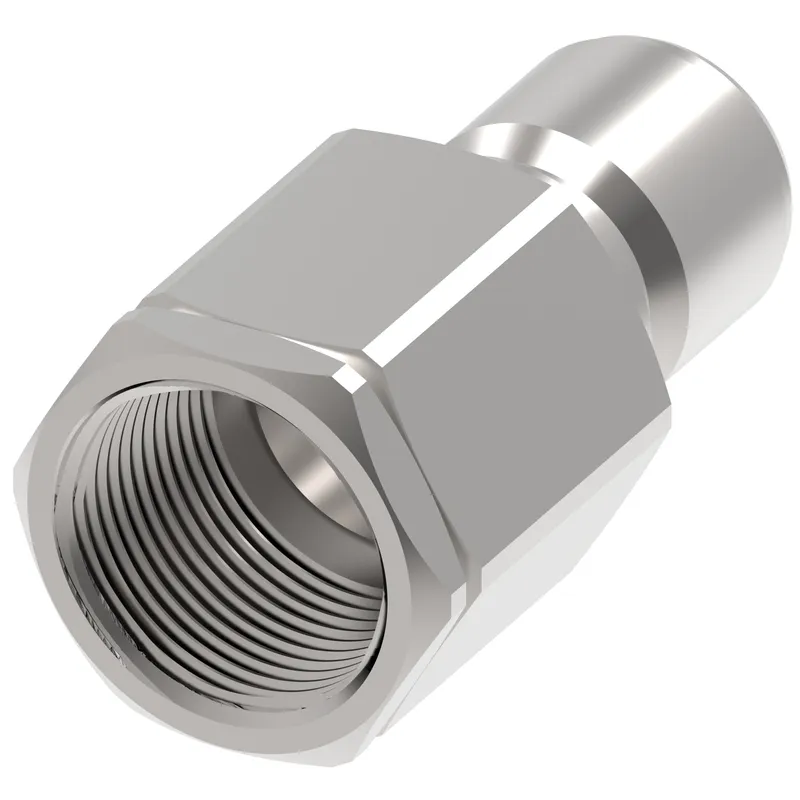

COUPLING,HK,M,1"1/4,CS,-20BSP,EPDM

MPN: 10K41BS192
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 10K41BS192?

Danfoss COUPLING,HK,M,1"1/4,CS,-20BSP,EPDM, manufacturer part number 10K41BS192. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146196651
Air inclusion max cc	48.00
Air inclusion max in3	2.93
Angle shape	Straight
Application	Aerospace, Agriculture, Chemical, Construction, Consumer products, Fluid transfer, Food and beverage, General industry, Hvac, Hydraulics, Law enforcement/rescue, Medical, Military, Oil and gas, Transportation, Trucks
Body size	1 1/4"
Brand	Danfoss
Certifications	ISO 7241-1 Series B
Connection style	Manual connect
End size 1	-20
End size 2	-20
End type 1	Male push to connect
End type 2	Female BSPP swivel
Finish plating	Zinc
Flow rate GPM	76.00
Flow rate LPM	287.69
Fluid compatibility	Hydraulic fluid
Fluid loss cc	48.00000
Fluid loss in3	2.92900
Hex size 1 IN	2.380
Hex size 1 MM	60.452
Item type	Male half
Latch type	Push/pull
Product material	Carbon steel
Safety locking mechanism	None
Seal material	Ethylene propylene (EPDM)
Sub brand	Hansen
Thread size 1	G 1 1/4
Thread size 2	G 1 1/4
Valve type	2 way
Working pressure max psi	2900
Working pressure max BAR	200
Working temperature max C	149
Working temperature max F	300
Working temperature min C	-54
Working temperature min F	-65
